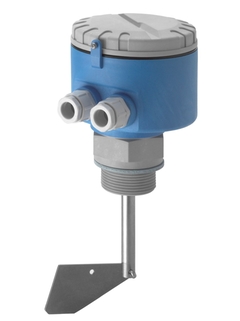

Point level switch
Soliswitch FTE30
rotary paddle switch

Simple mechanical mechanism, extremely robust and cost-effective point level switch for bulk solids

FTE30

Compare

Specs at a glance

Process temperature

-20 °C ... 80 °C (-4 °F ... 170 °F)
Process pressure / max. overpressure limit

0.5 bar to 1.5 bar (7 psi to 22 psi)
Min. density of medium

>= 100 g/l

See all specifications

Field of application

The economical Soliswitch FTE30 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and therefore suitable for use in dust explosive areas.

Process connections: G 1½", PBT; G 1½", 1.4305; Reinforced shaft G 1½", 1.4305
Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2,000 mm (80") (can be shortened)
Temperature: -20 to +80 °C (-4 to +170 °F)
Pressure: 0.5 to 1.8 bar (7 to 25 psi)

Benefits

Reliable and economical paddle switch
Highest safety standard
Diverse instrument designs for use under different application conditions
Slip clutch prevents impact on paddle
Ingress protection to IP65 for optimum safety in the process

Predecessor

FTE130

FTE330

Success stories

Level measurement of silos on construction sites

Discover how Profibaustoffe Austria GmbH automated the monitoring of bulk material inside silos to deliver refills on a "just- in-time" basis.
Read the full story
