Specs at a glance
-
Accuracy
pn ≥ 400mbar: 0.35 %
pn < 400mbar: 0.50 % -
Process temperature
-10°C...+70°C
(+14°F...+158°F) -
Pressure measuring range
200 mbar...2 bar
(3 psi...29 psi) -
Process pressure / max. overpressure limit
10 bar (145 psi)
-
Main wetted parts
316L
-
Max. measurement distance
20 m H2O
(66 ft H2O) -
Material process membrane
Metal
-
Measuring cell
200 mbar...2 bar
(3 psi...29 psi)
Field of application

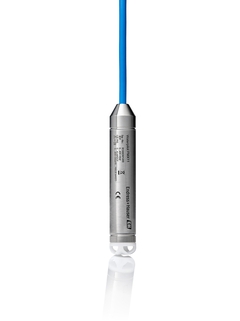

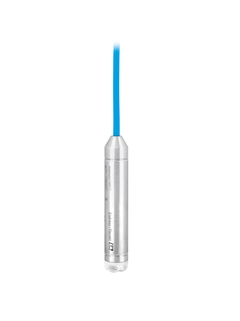

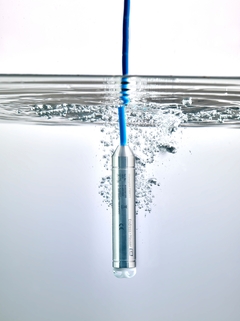

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.
Temperature: –10 to +70°C (14 to 158°F)
Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H2O)
Cable length: 6 to 30m
Accuracy: up to ±0.35%
Drinking water approvals: ACS, KTW, NSF61, DVGW
Certifications: cULus
Benefits
Simple and reliable transmitter for various drinking water applications
Easy installation, commissioning and operation
Orderable with flexible measuring ranges and cable lengths tailored to fit your application
Robust construction for durable long-term services
Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations
Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.
Simple specification and ordering
