Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.
Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.
The extension, the immersion and the tapering lengths can be chosen according to process requirements
A wide choice of standard diameters and materials is available; other versions can be ordered according to specification
Different grades of surface finishing are also available
The process connection is threaded. The thermowell stem shape can be straight or stepped for fast response time
Phạm vi ứng dụng

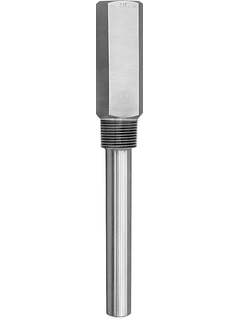

TA566 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications
