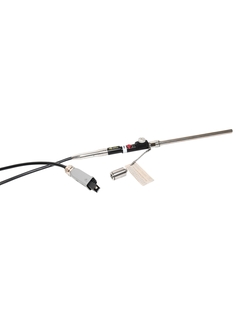

.jpg "bIO-Optic 220，连接RamanRxn探头（正视图和右视图）")
产品规格参数
-
Sampling probe compatibility
Raman Rxn-10 probe
-
Wetted materials
Body: 316L stainless steel
Window: Proprietary material, optimized for bioprocesses
Process connection: PG13.5
Surface finish: Ra 15 with Electropolish to ASME BPE SF4 finish
Adhesive: USP Class VI and ISO 10993 compatible -
Sterilization method
Autoclave
应用领域

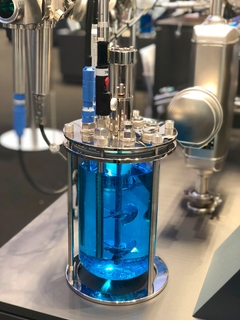

拉曼bIO-Optics通用型插入式探头与Rxn-10配套使用，可以安装在标准生物反应罐开口上。采用定焦设计，长期稳定测量，信号性能优秀，确保高性能拉曼生物过程分析至关重要。拉曼bIO-Optics长度符合行业标准，特别适合玻璃和塑料台式生物反应罐/发酵罐的应用，从顶部安装。
细胞培育：葡萄糖、乳酸、谷氨酰胺、氨基酸、细胞密度、滴度
发酵：甘油、甲醇、乙醇、山梨醇、生物量
下游工段：聚集、蛋白质结晶、配方稳定性、产品CQA、蛋白质浓度、缓冲液辅料
优势
插入式光学部件，支持多组份生物过程测量
可以安装在标准生物反应罐开孔上
定焦设计
12 mm直径的探头可选配 Pg 13.5螺纹接头

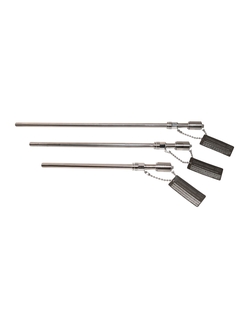

可选长度：120、220、320或420 mm
高压灭菌
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
Loading alternative products
成功案例
您可能感兴趣的还有
-
-
《技术资料》（TI）
Accessory Optics for the Rxn-10 Probe Technical Information
System design and specifications for Rxn-10 probe optics: Raman immersion optics (KIO1), non-contact optics (KNCO1), bIO-Optics (KLBIO1), bio multi optics (KRBMO), bio sleeves (KRBSL), and Raman optic system for single use (KRSU1)
语言:
英语
版本:
31/05/2023
文件大小:
467.9 KB
文件名:
TI01635CEN_0322.pdf
-
-
-
《操作手册》（BA）
Accessory optics for the Rxn-10 Probe Operating Instructions
Commissioning, operation, and maintenance details for Rxn-10 probe optics: Raman immersion optics (KIO1), non-contact optics (KNCO1), bIO-Optics (KLBIO1), bio multi optics (KRBMO), bio sleeves (KRBSL) and Raman optic system for single use (KRSU1)
语言:
英语
版本:
31/05/2023
文件大小:
1.8 MB
文件名:
BA02171CEN_0322.pdf
-
-
-
《简明操作指南》（KA）
Accessory Optics for the Rxn-10 Probe Brief Operating Instructions
Quickstart guide for Rxn-10 probe optics: Raman immersion optics (KIO1), non-contact optics (KNCO1), bIO-Optics (KLBIO1), bio multi optics (KRBMO), bio sleeves (KRBSL) and Raman optic system for single use (KRSU1)
语言:
英语
版本:
31/05/2023
文件大小:
1 MB
文件名:
KA01551CEN_0322.pdf
-
-
-
PU（出版）
Lab-to-process monitoring & control in Life Sciences - Reliable measurement of bioprocess physical and chemical properties
A combined product list of analysis offerings from both Optical Analysis and Liquid Analysis for bioprocessing applications in the life science industry (including Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, bIO-Optic, Rxn-45 probe, Rxn-46 probe, Raman optic system for single use, Memosens CPS61E, Memosens COS81E, OUSBT66, Memosens CPS61E, Memosens CPS77E, Memosens CLS82E, OUSAF44, Memosens CPS11E, Memosens CLS16E, TOC Analyzer CA79, Liquiline transmitter platform, and Memobase software).
语言:
英语
版本:
10/08/2022
文件大小:
782.3 KB
文件名:
PU01484CEN_0122.pdf
-
-
-
创新（IN）
Raman technology in bioprocessing - Scalable in situ bioprocess monitoring enabling advanced process control
An overview brochure about our Raman spectroscopy analyzer and probe portfolio, powered by Kaiser Raman technology, for the bioprocessing / biopharmaceutical industry (including the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, Rxn-45 probe, Rxn-46 probe, and probe accessory optics (bIO-Optic, Raman single use optic system, bio multi optic with bio sleeve, and Raman flow assembly), powered by Kaiser Raman technology.
语言:
英语
版本:
19/06/2023
文件大小:
6.8 MB
文件名:
IN01228CEN_0223.pdf
-
