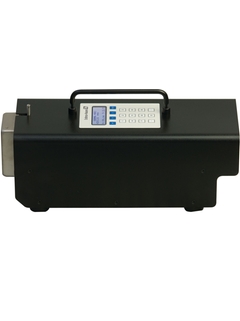

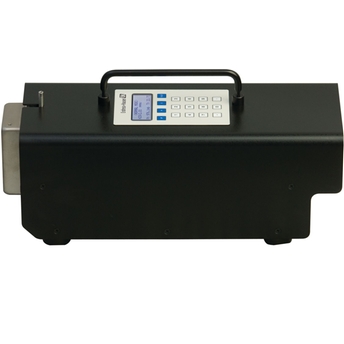

TDLAS便携式气体分析仪SS1000的产品图

SS1000便携式水气分析仪

响应快速，操作简单，是天然气管路应用场合中测量验证的理想选择

SS1000
价格核算中…
暂时无价格信息
Price on request
正在激活价格
价格：提供信息
from CHF ??.-
筛选测量/应用任务
筛选测量/应用任务
测量/应用任务

配置产品，下载CAD设计图

关闭 显示结果

  • 测量原理

    TDLAS

  • Product Headline

    Portable, light weight, easy to handle, and battery-powered moisture (H2O) analyzer, used to verify measurements and to spot-check when other methods provide questionable results. The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.

  • Channels

    1

  • Analyte and Measurement ranges

    H2O (Moisture):
    0 to 100 ppmv (minimum)
    0 to 5000 ppmv (maximum)

  • Measured Variables

    Concentration
    Dew Point
    Cell Pressure
    Cell Temperature

  • Ambient Temperature range

    -20 to 50°C (-4 to 122°F)

  • Operating Pressure range

    Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
    Sample Cell: 700 to 1400 mbara

  • Analyzer Wetted materials

    316L stainless steel
    FKM O-Rings
    Glass

  • Power supply

    100 to 240 VAC, 50 to 60 Hz - standard 12-Volt
    Sealed Lead-Acid Battery
    Approx. 8 hours usage time per charge
    0.5 Amps at 120 VAC during recharging

  • Communication

    Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms at 24 VDC max load (optional)
    Serial: RS232C
    Protocol: Modbus Gould RTU or Daniel RTU or ASCII

  • Housing materials

    Anodized Aluminum

  • Hazardous area approvals

    None

  • Degree of protection

    None
