Manual or automatic retractable assembly Cleanfit CPA473

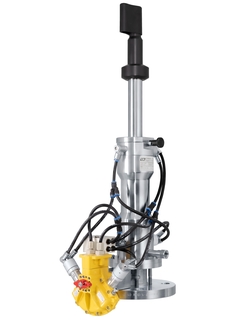

Cleanfit CPA473 - Service position ©Endress+Hauser

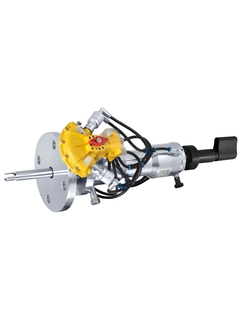

Cleanfit CPA473 - Retractable holder for fibrous and sticky media ©Endress+Hauser

Assembly with ball valve for the chemical, paper, and wastewater industries

The Cleanfit CPA473 retractable assembly is designed for application in fibrous or sticky media. Its patented sleeve seals and integrated scrapers make sure that nothing sticks to the sensor. Cleanfit offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.

  • Benefits

    • Safe and reliable separation from the process by ball valve, even under harsh conditions

    • No process interruption for electrode cleaning and calibration – saves maintenance time and costs

    • Extended operating life of electrodes due to automatic cleaning

    • ...

  • Field of application

    Cleanfit CPA473 is intended for use in tanks and pipes in:

    • Chemical industry

    • Paper industry

    • Wastewater / industrial water

    • Power plants

    • Refuse incinerators

    It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA...

Features and specifications

Back

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Retractable assembly with ball valve.

  • Characteristic

    Open and closed tank, piping (min DN80).

  • Design

    - manual or pneumatical - manual or pneumatical ball valve - can be fully automated with CPC30 / 300 - integrated rinse chamber with connection G 1/4" or NPT 1/4".

  • Material

    Holder : stainless steel 1.4404 Sealing : different material available

  • Dimension

    Immersion depth: 61 - 235mm
    (2.37 inch - 9.16 inch)

  • Process temperature

    max. 80 or 140°C
    (176°F or 284°F)

  • Process pressure

    max. 4/6 or 10 bar
    (58 psi/87 psi or 145 psi)

  • Connection

    Thread G 1,25"; process connection DN50/PN16, ASME 2"/150lbs

  • Additional certifications

    - 3.1.B EN 10204

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Retractable holder with ball valve.

  • Characteristic

    Open and closed tank, piping (min DN80).

  • Design

    - manual or pneumatical- manual or pneumatical ball valve- can be fully automated with CPC30 / 300- Integrated rinse chamber with connection G1/4" or NPT1/4".

  • Material

    Holder : stainless steel 1.4404Sealing : different material available

  • Dimension

    Immersion deepth : 61 - 235mm

  • Process temperature

    max. 80 bzw. 140°C

  • Process pressure

    max. 4/6 bzw. 10bar

  • Connection

    Thread G1,25"; flange DN50/PN16, flange ASME 2"/150lbs

  • Additional certifications

    - 3.1.B EN 10204
