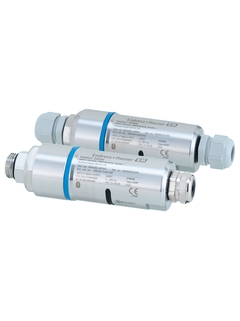

FieldPort SWA50

FieldPort SWA50 ©Endress+Hauser

FieldPort SWA50 - Intelligent Bluetooth® and/or WirelessHART adapter

Direct mounting of FieldPort SWA50 ©Endress+Hauser

Direct mounting of FieldPort SWA50

Direct mounting of FieldPort SWA50 ©Endress+Hauser

Direct mounting of FieldPort SWA50

  • FieldPort SWA50
  • Direct mounting of FieldPort SWA50
  • Direct mounting of FieldPort SWA50

Intelligent Bluetooth® and/or WirelessHART adapter for all HART field devices

The FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and encrypted Bluetooth® or WirelessHART signal. The Endress+Hauser SmartBlue app or the Endress+Hauser Field Xpert is used to configure the FieldPort SWA50 and to visualize the measured values and status of the connected HART field device. HART field devices can be connected to the Netilion Cloud via the FieldPort SWA50 and a FieldEdge device.

Fundamental selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Output

      WirelessHART communication interface Transmission rate:
      Nominal 250 kBits/s,
      Operating frequency: 2.4 GHz (ISM band),
      Transmission range under reference conditions,
      Outdoor 250 m, indoor 50 m

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

SWA50
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Reliable transmission of the measured process values through the connected FieldPort SWA50 via encrypted Bluetooth® or WirelessHART communication

    • Easy to retrofit all 2-wire or 4-wire HART field devices

    • Easy connection of all HART field devices to the...

  • Field of application

    The FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and encrypted Bluetooth® or WirelessHART signal. The FieldPort can be retrofitted to all 2-wire and 4-wire HART field devices in both hazardous and non-...

Features and specifications

Back

Details

  • Measuring principle

    WirelessHART

  • Function

    Intelligent WirelessHART interface module for connection to 4...20 mA/HART devices

  • Certification

    Non-hazardous area, ATEX, IEC Ex

  • Input

    One point-to-point with a HART device,

    One point-to-point connection with a 4...20 mA device, or

    Up to four HART field devices connected in multidrop mode with a wide range power unit

  • Output

    WirelessHART communication interface Transmission rate:

    Nominal 250 kBits/s,

    Operating frequency: 2.4 GHz (ISM band),

    Transmission range under reference conditions,

    Outdoor 250 m, indoor 50 m

  • Auxiliary power supply / Loop power supply

    Special long live Lithium Thionylchloride battery pack

    24-230V AC/DC external power,

    DC power unit

  • Dimensions (wxhxd)

    W x H x D: 111.5 mm x 189.9 mm x 92.8 mm Dimensions in mm 25.4 mm = 1 inch

  • Software

    Internal software for controlling, powering, and reading from 4…20 mA HART field devices

  • Operation

    4...20mA HART

    Wireless Bluetooth® technology

  • Operating Voltage

    Special long live Lithium Thionylchloride battery pack

    For versions with electronically regulated power supply:

    Wide-range power supply: 24 V...230 V AC/DC ± 10%, 50/60 Hz

    DC power unit: 8 V...50 V DC ± 10%

    In the event of an external power supply failure, wireless communication is maintained for at least one hour by means of an internal supply.

Documents / Manuals / Software

  • FieldPort SWA50

    Intelligent Bluetooth® and/or WirelessHART adapter for all HART field
    devices

    Technical Information (TI)
  • FieldPort SWA50

    Intelligent WirelessHART adapter for HART measuring devices

    Operating Instruction (BA)
  • FieldPort SWA50

    Intelligent Bluetooth® adapter for HART field devices

    Operating Instruction (BA)
  • FieldPort SWA50

    Intelligent WirelessHART adapter for HART measuring devices

    Short Instruction (KA)
    03/21
    English
  • FieldPort SWA50

    4-20 mA HART
    ATEX:
    II 1 G Ex ia IIC T4 Ga
    II 1 D Ex ia IIIC T135°C Da
    II 2 D Ex tb IIIC T75°C Db
    IECEx:
    Ex ia IIC T4 Ga
    Ex ia IIIC T135°C Da
    Ex tb IIIC T75°C Db

    Ex Safety Instructions (XA)
  • FieldPort SWA50

    4-20 mA HART
    II 1 G Ex ia IIC T4 Ga
    II 1 D Ex ia IIIC T135°C Da
    II 2 D Ex tb IIIC T75°C Db

    Ex Safety Instructions (XA)
  • FieldPort SWA50

    Intelligent Bluetooth and/or WirelessHART adapter for any HART field
    device

    Innovations (IN)
    10/20
    English
  • FieldPort SWA50

    Intelligenter Bluetooth- und/oder WirelessHART-Adapter für alle
    HART-Feldgeräte

    Innovations (IN)
    10/20
    German
  • FieldPort SWA50

    FieldPort SWA50
    Adattatore intelligente Bluetooth
    e/o adattatore WirelessHART per
    dispositivi da campo HART

    Innovations (IN)
    10/20
    Italian
  • FieldPort SWA50

    Adapteur intelligent Bluetooth et/ou WirelessHART pour tout appareil de
    terrain HART

    Innovations (IN)
    10/20
    French
  • Veilige Bluetooth-verbinding ontwikkeld door Endress+Hauser

    Een veilige, energiezuinige technologie
    voor de procesindustrie

    Innovations (IN)
    04/21
    Dutch
  • Sichere Bluetooth®-Verbindung von Endress+Hauser

    Eine sichere Low-Power-Technologie für die Prozessindustrie

    Innovations (IN)
    03/21
    German
  • Connexion Bluetooth® sécurisée Endress+Hauser

    Une technologie sûre et à faible consommation pour les process

    Innovations (IN)
    03/21
    French
  • Secure Bluetooth® connection developed by Endress+Hauser

    A secure low power technology for the process industry

    Innovations (IN)
    03/21
    English
  • DTM Library, EH_Wireless_HART_Package, 22.04.2021 (Components, WirelessHART)

    HART,

    DeviceCare Version: 1.07.00

    Field Xpert - SMT70 Version: 1.05.00

    FieldCare Version: 2.15.00

    Device Type Manager (DTM)
    01.03.08
    Language neutral
  • FieldPort SWA50

    Stainless Steel, direct mounting version with plastic M20

    08/19
    Language neutral
  • FieldPort SWA50

    Stainless Steel, remote mounting version with brass M20

    08/19
    Language neutral
  • FieldPort SWA50

    Stainless Steel, remote mounting version with plastic M20

    08/19
    Language neutral
  • Cerabar with FieldPort SWA50

    Stainless Steel, direct mounting version with brass M20

    08/19
    Language neutral

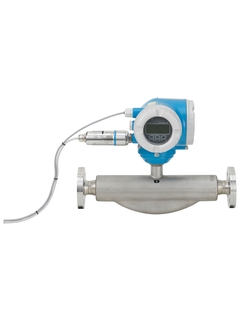

  • Promass with FieldPort SWA50

    Stainless Steel, direct mounting version with brass M20

    08/19
    Language neutral

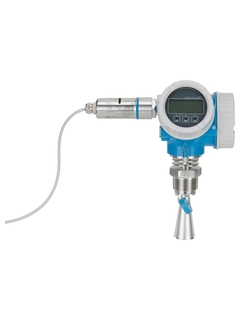

  • Micropilot with FieldPort SWA50

    Stainless Steel, direct mounting version with brass M20

    08/19
    Language neutral
  • FieldPort SWA50

    Stainless Steel, direct mounting version with brass NPT1/2

    08/19
    Language neutral
  • FieldPort SWA50

    Stainless Steel, direct mounting version with brass M20

    08/19
    Language neutral
  • FieldPort SWA50

    Stainless Steel, direct mounting version with plastic NPT1/2

    08/19
    Language neutral

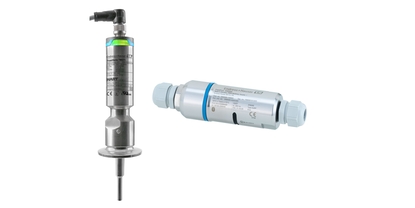

  • iTemp with FieldPort SWA50

    Stainless Steel, direct mounting version with brass M20

    08/19
    Language neutral
  • FieldPort SWA50 Direct Mount and Remote Mount Version

    Intelligent Bluetooth and/or WirelessHART adapter for any HART field
    device

    02/21
    Language neutral
  • Fieldgate

    Product Code: SWA50-
    Declaration Number: EC_00865_01.20

    EU Declaration
    German , English , French
  • Fieldgate

    Product Code: SWA50-
    Declaration Number: EC_00876_04.21

    EU Declaration
    English
  • Fieldgate

    Product Code: SWA50-
    Declaration Number: EC_00866_01.20

    EU Declaration
    German , English , French
  • Fieldgate

    Product Code: SWA50-
    Region/Country: Great Britain
    Approval Agency: CML
    Protection: 020|005|020, 020|005|050, 030|005|060

    Explosion Protection
    English
  • Fieldgate

    Product Code: SWA50-
    Region/Country: International (IECEx)
    Approval Agency: IECEx
    Protection: Ex ia IIC T4 Ga, Ex ia IIIC Txxx°C Da, Ex tb IIIC Txxx°C Db

    Explosion Protection
    English
  • Fieldgate

    Product Code: SWA50-
    Region/Country: Europe (ATEX)
    Approval Agency: CML
    Category: II 2 D, II 1 D, II 1 G
    Protection: Ex ia IIC T4 Ga, 020|005|050, 030|005|060

    Explosion Protection
    English
  • Fieldgate

    Product Code: SWA50-
    Region/Country: Japan
    Approval Agency:

    Radio Equipment
    English
  • Product family: Fieldgate

    Product Code: SWA50-
    Region/Country:
    Approval Agency:

    Radio Equipment
  • Fieldgate

    Product Code: SWA50-
    Region/Country: Canada
    Approval Agency:

    Radio Equipment
    English
  • Fieldgate

    Product Code: SWA50-
    Region/Country: USA
    Approval Agency: FCC

    Radio Equipment
    English
