Memosens Analog Converter CYM17

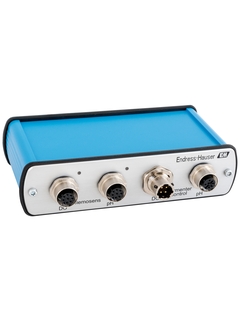

CYM17 enables the use of digital pH sensors and digital oxygen sensors with laboratory fermenters. ©Endress+Hauser

CYM17 enables the use of digital pH sensors and digital oxygen sensors with laboratory fermenters.

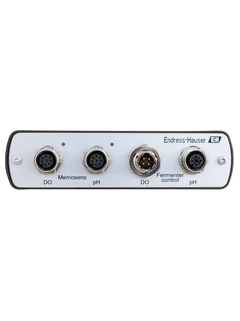

With CYM17 you can benefit from all the advantages of Memosens digital sensors. ©Endress+Hauser

With CYM17 you can benefit from all the advantages of digital Memosens sensors, such as insensitivity to moisture, corrosion and dirt.

Converter for Memosens sensors for easy use with laboratory fermenters

The Memosens Analog Converter CYM17 enables the easy use of digital Memosens sensors in your fermentation applications in the laboratory without changing your SOP. Memosens digital technology combines maximum process and data integrity with simple operation. It eliminates any moisture issues and guarantees stable signals after autoclavation.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Easy exchange of your existing analog sensors. Just install the Memosens sensors to your fermenter and connect them with the converter.

    • Various adapter cables are available for easy connection of one Memosens pH sensor (e.g. CPS171D) and one optical DO...

  • Field of application

    The Memosens Analog Converter CYM17 enables the use of digital Memosens sensors in laboratories in biotechnology industries with your existing fermenter.

Features and specifications

Back

Details

  • Measuring principle

    Potentiometric

  • Application

    CYM17 converter enables easy retrofit of conventional analog pH and oxygen sensor to Memosens CPS171D and COS81D in benchtop fermentation applications.

  • Material

    Housing: Aluminum

  • Dimension

    Height: 36.6 mm (1.44 in)
    Deep: 72 mm (2.8 in)
    Width 140.6 mm (5.5 in)

  • Process temperature

    -5 to 50 °C (20 to 120 °F)

  • Ingres protection

    IP54

  • Input

    M12 socket

  • Output / communication

    Output pH: mV signal according to Nernst equation with 0 mV at pH 7 and -59 mV/pH

    Temperature pH: simulated PT1000

    Output oxygen: 0 to 60 nA with 60 nA at 100% oxygen saturation

    Temperature oxygen: simulated 22 kOhm NTC

  • Measuring principle

    Amperometric oxygen measurement

  • Application

    CYM17 converter enables easy retrofit of conventional analog pH and oxygen sensor to Memosens CPS171D and COS81D in benchtop fermentation applications.

  • Material

    Housing: Aluminum

  • Dimension

    Height: 36.6 mm (1.44 in)
    Deep: 72 mm (2.8 in)
    Width 140.6 mm (5.5 in)

  • Process temperature

    -5 to 50 °C (20 to 120 °F)

  • Input

    M12 socket

  • Output / communication

    Output pH: mV signal according to Nernst equation with 0 mV at pH 7 and -59 mV/pH

    Temperature pH: simulated PT1000

    Output oxygen: 0 to 60 nA with 60 nA at 100% oxygen saturation

    Temperature oxygen: simulated 22 kOhm NTC
