Protection tube for temperature sensors

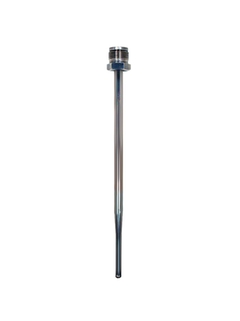

protection tube TW12 ©Endress+Hauser
protection tube TW12 ©Endress+Hauser
protection tube TW12 ©Endress+Hauser

Designed for use in the fine chemicals industry and generally for almost all industrial processes

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Max. process pressure (static)

      50 bar (725 psi)

    • Maximum standard immersion length

      4.000 mm (157,48")

    • Max. immersion length on request

      10.000 mm (393,7")

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Tip of the thermowell with a reduced diameter or tapered for a faster response time

    • Customized immersion length

    • Surface finishing Ra < 0.8 μm

    • SS 316L/1.4404 and SS 316Ti/1.4571 for the "wetted" parts

    • The common threaded process connections are supplied as...

  • Field of application

    TW12 protection tubes are designed for the use in the fine chemicals industry but can also be used for generic applications.

Features and specifications

Back

Details

  • Measuring principle

    Fabricated Thermowell

  • Characteristic / Application

    metric style

    DIN 43772 Form 2/3

    process connection as compression fitting

    with neck

  • Head connection

    external thread:

    M24 x 1.5

    1/2" NPT

  • Maximum standard immersion length

    4.000 mm (157,48")

  • Max. immersion length on request

    10.000 mm (393,7")

  • Process connection

    compression fitting:

    G1/2"

    G3/4"

    G1"

    1/2" NPT

    R1/2"

    R3/4"

    R1"

    M20 x 1.5

  • Thermowell root diameter

    9 mm (0,35")

    11 mm (0,43")

    12 mm (0,47")

    14 mm (0,55")

    15 mm (0,59")

  • Medium contact material

    1.4404 (316L)

    1.4571 (316Ti)

    1.4843 (310)

    2.4816 (Alloy 600)

    2.4819 (Alloy C276)

  • Wetted part finishing (Ra)

    < 0.8 ìm (31.50 ìin)

  • Tip shape

    straight

    reduced

    tapered

  • Temperature range

    -200...1.100 °C (-328...2.012 °F)

  • Max. process pressure (static)

    50 bar (725 psi)

  • Max. process pressure at 400 °C

    depends on process connection
