Levelflex FMP54 - Guided radar

Guided radar measurement
Time-of-Flight
Levelflex FMP54

For high temperature and high pressure applications in the oil & gas, chemical and power industry

FMP54
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

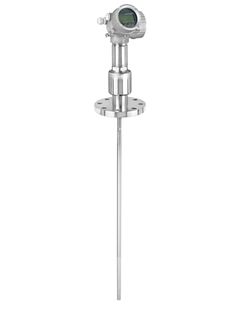

Levelflex FMP54 stainless steel
  • F
  • L
  • E
  • X
©Endress+Hauser

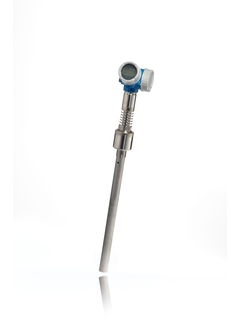

Levelflex FMP54 aluminum
  • F
  • L
  • E
  • X
©Endress+Hauser
Levelflex FMP54
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    Rod probe: +/- 2 mm (0.08 in)
    Rope probe <= 15 m (49 ft):
    +/- 2 mm (0.08 in)
    Rope probe > 15 m (49 ft):
    +/- 10 mm (0.39 in)
    Coaxial probe: +/- 2 mm (0.08 in)

  • Process temperature

    XT: -196...+280 °C
    (-321...+536 °F)
    HT: -196...+450 °C
    (-321...+842 °F)

  • Process pressure / max. overpressure limit

    Vacuum...400 bar
    (Vacuum...5800 psi)

  • Max. measurement distance

    Rod:
    10 m (33 ft) Min DK>1.6
    Rope:
    25 m...30 m (82 ft...98 ft) Min DK>1.6;
    30 m...45 m (98 ft...148 ft) Min DK >1,9
    Coaxial probe: 6 m (20 ft) Min DK>1.4

  • Main wetted parts

    Rod probe:
    304, 316L, Alloy C, Ceramic
    Rope probe:
    304, 316, 316L, Alloy C, Ceramic
    Coaxial probe:
    304, 316L, Alloy C, Ceramic

Field of application

Levelflex FMP54 for continuous level measurement in liquids under extreme conditions. The process connection with its ceramic-graphite seal safeguards high temperature and high pressure applications as they occur in steam boilers and toxic media like ammonia. The gas tight feedthrough guarantees additional safety. Only the gas phase compensation of the FMP54 gives reliable results in case of gas and steam phases. Reliable measurement in case of moving surface and foam or in changing medias.

Version with rod, rope or coax probe.

  • Process connections: Thread or flange

  • Temperature: -196 to +450°C (-320 to +842°F)

  • Pressure: -1 to +400bar (-14.5 to +5,800psi)

  • Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)

  • Accuracy: rod ±2mm (0.08")

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approval, steam boiler approval, 5-point linearity protocol

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test for SIL and WHG saves time and costs

Videos

  • Time-of-Flight measuring principle

  • Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar

  • Levelflex FMP54 with gas phase compensation for high temperature and high pressure applications

  • Unique HistoROM data management concept for safe level measurement

  • Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

  • Multi-Echo Tracking with Tank Trace marks and traces all echoes signals, not only the level signal - guaranteeing safe measurement at any time

Extended selection

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity
