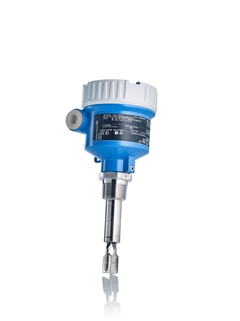

Liquiphant FTL41 ©Endress+Hauser

The vibronic measuring principle explained

Liquiphant FTL41 ©Endress+Hauser

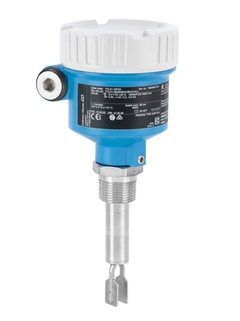

Basic point level switch Liquiphant FTL41

  • Liquiphant FTL41
  • Liquiphant FTL41

The vibronic level switch in basic applications reduces complexities in your plant

Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.

Lean selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      -40 °C...+150 °C
      (-40 °F...+302 °F)

    • Process pressure absolute / max. overpressure limit

      Vacuum...40 bar
      (Vacuum...580 psi)

    • Min. density of medium

      0.5 g/cm³
      (0.4 g/cm³ optional)

Loading alternative products

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FTL41
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • One measuring system for any liquid. Simple to use with plug and play functionality based on active sensor technology

    • Better long-term stability compared to float switches due to no mechanically moving parts

    • Repeatability of switching point

    • Universal...

  • Field of application

    Point level switch with extension tube for all liquids.

    • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

    • Temperature: -40 to +150°C (-40 to +302°F)

    • Pressure: -1 to +40bar (-14.5 to +580psi)

    • Sensor material: 316L

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    Compact vibronic device with an optional pipe extension up to 2 m;

    Modular housing concept;

    Wide range of certificates

  • Specialities

    RFID TAG for easy identification,

    Plug and play functionalities

  • Supply / Communication

    10...55V / DC-PNP 3-wire

    19...253V AC or 19...55V DC / relays

    NAMUR

  • Ambient temperature

    -40 °C...+70 °C

    (-40 °F...+158 °F)

  • Process temperature

    -40 °C...+150 °C

    (-40 °F...+302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...40 bar

    (Vacuum...580 psi)

  • Min. density of medium

    0.5 g/cm³

    (0.4 g/cm³ optional)

  • Main wetted parts

    316L

  • Process connection

    Threads:

    G3/4A, G1A, R3/4", R1, NPT3/4, NPT1


    Flanges:

    DN25...DN100

    ASME 1"...4"

    JIS 25A...50A

  • Process connection hygienic

    Tri-Clamp ISO2852

  • Sensor length

    Up to 2 m

  • Communication

    DC-PNP 3-wire

    Relays

    NAMUR

  • Certificates / Approvals

    ATEX, IEC Ex, CSA, NEPSI

  • Safety approvals

    Overfill protection WHG

  • Design approvals

    EN 10204-3.1

    ASME B31.3 Process Piping

    CRN

  • Components

    FTL325N Interface NAMUR

Documents / Manuals / Software

  • Weld-in adapter, process adapter and flanges

    Level and pressure measurement

    Technical Information (TI)
