The Liquiphant FTL64 ensures long term reliable detection

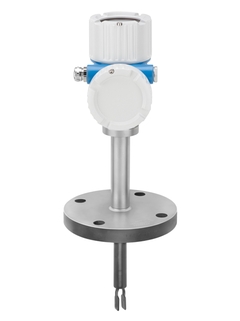

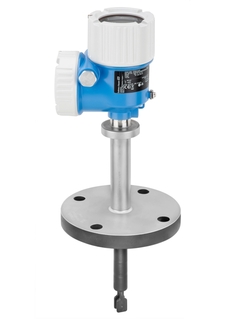

Liquiphant FTL64 for high temperatures — The new Liquiphant FTL64

Preventive maintenance is possible with corrosion detection via Heartbeat Technology

Liquiphant with permanent function check is the safe choice for point level detection in liquids

A level switch for hot and pumpable liquids

Liquiphant FTL64 has a strong focus on high temperature applications and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in applications with high temperatures and want a reliable and proven point level detection for tank overfill prevention and pump dry run protection. The FTL64 is easy to use, has a digital connection and gives a real-time data at hand

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

This product is not available in this market.

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

FTL64

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Universal measuring principle for limit detection – proven vibronic technology
Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved). The FTL64 increases plant safety, efficiency and availability
Periodic proof...

Show more
Universal measuring principle for limit detection – proven vibronic technology
Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved). The FTL64 increases plant safety, efficiency and availability
Periodic proof testing is quickly and simple organized with guided wizards via the SmartBlue-App or via a test button or magnetic pin from outside. Via these ways, you can initiate the instrument for a fast and easy testing of the safety loop
Heartbeat Technology allows safe, continuous diagnostics and a simple verification
Diagnostics:Permanent diagnostics increase the safety of the plant. You connect your device via the SmartBlue-App and you easily have real time diagnostics at hand
Verification: The device can be verified without process interruption. The documentation is generated automatically
Monitoring:With the frequency tracking of the sensor data you have all information at hand for predictive maintenance and process optimization strategies

Show less

Field of application
Point level switch with extension tube for pumpable liquids

Process temperature: -80 °C +280°C (PFA coated: up to 230°C)

Process pressure: -1 to +100bar (PFA coated: up to 40bar)

Ambient temperature: -60 to +70°C

Viscosity up to 10,000mm2/s (cSt)

...

Show more
Point level switch with extension tube for pumpable liquids

Process temperature: -80 °C +280°C (PFA coated: up to 230°C)

Process pressure: -1 to +100bar (PFA coated: up to 40bar)

Ambient temperature: -60 to +70°C

Viscosity up to 10,000mm2/s (cSt)

Optional PFA coating for aggressive media

Process connections: threads, flanges and hygienic process connection (Tri-Clamp

International explosion protection certificates, overfill protection WHG, SIL, marine approvals

Show less

Documents / Manuals / Software

Download type

Filter

Liquiphant FTL64
Vibronic

Technical Information (TI)
Liquiphant FTL64
Vibronic

Operating Instruction (BA)
Liquiphant FTL64
Vibronic

Short Instruction (KA)

11/20

English
Ground terminal
Liquiphant, Gammapilot,
Cerabar, Deltabar

Installation Instructions (EA)
Dummy plug M20×1.5, dummy plug NPT½
Liquiphant, Gammapilot,
Cerabar, Deltabar
Prothermo NMT81

Installation Instructions (EA)
LED module VU120
Liquiphant FTL51B, FTL62, FTL64

Installation Instructions (EA)
Terminal module, 4 to 20 mA
Gammapilot FMG50, Prothermo NMT81
Cerabar PMC71B, PMP71B
Deltabar PMD75B, PMD78B
Liquiphant FTL51B, FTL62, FTL64

Installation Instructions (EA)
Bluetooth module VU121
Liquiphant FTL51B, FTL62, FTL64

Installation Instructions (EA)
Cover, cover seal
Liquiphant FTL41, FTL51B, FTL62, FTL64
Gammapilot FMG50
Cerabar PMC51B, PMP51B, PMC71B, PMP71B
Deltabar PMD55B, PMD75B, PMD78B

Installation Instructions (EA)
M12 plug (housing side)
Liquiphant, Gammapilot,
Cerabar, Deltabar

Installation Instructions (EA)
Electronic insert FEL6x
Liquiphant FTL51B, FTL62, FTL64

Installation Instructions (EA)
Cable gland M20x1.5
Liquiphant, Gammapilot
Cerabar, Deltabar

Installation Instructions (EA)
Liquiphant FTL64
ATEX:
II 1/2 G Ex db eb IIC T6...T1 Ga/Gb
II 2 G Ex db eb IIC T6...T1 Gb
IECEx:
Ex db eb IIC T6...T1 Ga/Gb
Ex db eb IIC T6...T1 Gb

Ex Safety Instructions (XA)
Liquiphant FTL64
ATEX:
II 1/2 G Ex db ia IIC T6...T1 Ga/Gb
II 2 G Ex db ia IIC T6...T1 Gb
IECEx:
Ex db ia IIC T6...T1 Ga/Gb
Ex db ia IIC T6...T1 Gb

Ex Safety Instructions (XA)
Liquiphant FTL64
ATEX:
II 1/2 G Ex db IIC T6...T1 Ga/Gb
II 2 G Ex db IIC T6...T1 Gb
II 1/2 D Ex ta/tb IIIC Txxx°C Da/Db
II 2 D Ex tb IIIC Txxx°CDb
IECEx:
Ex db IIC T6...T1 Ga/Gb
Ex db IIC T6...T1 Gb
Ex ta/tb IIIC Txxx°C Da/Db
Ex tb IIIC Txxx°C Db

Ex Safety Instructions (XA)
Liquiphant FTL64
ATEX:
II 1/2 G Ex db IIC T6...T1 Ga/Gb
II 2 G Ex db IIC T6...T1 Gb
IECEx:
Ex db IIC T6...T1 Ga/Gb
Ex db IIC T6...T1 Gb

Ex Safety Instructions (XA)
Liquiphant FTL64
ATEX:
II 3 G Ex ec IIC T6...T1 Gc
II 3 G Ex ec nC IIC T6...T1 Gc
II 3 D Ex tc IIIC Txxx°C Dc
IECEx:
Ex ec IIC T6...T1 Gc
Ex ec nC IIC T6...T1 Gc
Ex tc IIIC Txxx°C Dc

Ex Safety Instructions (XA)
Liquiphant FTL64
ATEX:
II 1/2 G Ex db ia IIC T6...T1 Ga/Gb
II 2 G Ex db ia IIC T6...T1 Gb
II 1/2 D Ex ia IIIC Txxx°C Da/Db
II 2 D Ex ia IIIC Txxx°C Db
IECEx:
Ex db ia IIC T6...T1 Ga/Gb
Ex db ia IIC T6...T1 Gb
Ex ia IIIC Txxx°C Da/Db
Ex ia IIIC Txxx°C Db

Ex Safety Instructions (XA)
Bluetooth® module VU121
Suitable for Liquiphant FTL51B, FTL62, FTL64
Certified according to:
ATEX/IECEx:
Ex ia, Ex db, Ex db eb, Ex ec,
Ex ta/tb, Ex tb, Ex tc
EPL:
Ga, Ga/Gb, Gb, Gc, Da/Db, Db, Dc

Ex Safety Instructions (XA)
Cable gland M20 Ex d
for the Japanese market

Special Documentation (SD)
M12 socket
Accessories for Liquipoint, Liquitrend, Liquiphant, Ceraphant, Cerabar,
Deltabar, Gammapilot

Special Documentation (SD)
Liquiphant FTL41, FTL51B, FTL64, FTL71, FTL81
Vibronic

Special Documentation (SD)
Bluetooth® module VU121
Remote operation via Bluetooth® wireless technology

Special Documentation (SD)
Weather protection cover
Level measurement, pressure measurement

Special Documentation (SD)
Adapter/cable gland
Level measurement, pressure measurement

Special Documentation (SD)
Liquiphant FTL51B, FTL62, FTL64
Application package
Heartbeat Verification + Monitoring

Special Documentation (SD)
Liquiphant FTL64 with electronic insert FEL68
Vibronic

Functional Safety (FY)

09/20

English
Liquiphant FTL64 with electronic insert FEL61
Vibronic

Functional Safety (FY)

09/20

English
Liquiphant FTL64 with electronic insert FEL62
Vibronic

Functional Safety (FY)

09/20

English
Liquiphant FTL64 with electronic insert FEL67
Vibronic

Functional Safety (FY)

09/20

English
Liquiphant FTL64 with electronic insert FEL64, FEL64DC
Vibronic

Functional Safety (FY)

09/20

English
The challenge and solution, inventory Management of NGLs in 1.3m x 500m horizontal vessels
White Paper - As presented at the Canadian School of hydrocarbon
measurement
calgary 2018

Case Studies (CS)

05/18

English
Innovation brochure - Liquiphant FTL64
Innovation brochure - Liquiphant FTL64
ensures long term reliable detection of hot liquids

Innovations (IN)

01/21

English
Liquiphant
Product Code: FTL51B-, FTL62-, FTL64-
Declaration Number: EC_00724_02.18

EU Declaration

German , English , fr
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Declaration Number: EC_00749_02.19

EU Declaration

German , English , fr
Liquiphant
Product Code: FTL51B-, FTL62-, FTL64-
Declaration Number: EC_00751_02.19

EU Declaration

German , English , fr
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Declaration Number: EC_00721_02.18

EU Declaration

German , English , fr
Liquiphant
Product Code: FTL51B-, FTL62-, FTL64-
Declaration Number: EC_00750_02.19

EU Declaration

German , English , fr
Liquiphant
Product Code: FTL64-
Declaration Number: SIL_00365_01.20

SIL Declaration

English
Liquiphant
Product Code: FTL64-
Declaration Number: SIL_00366_01.20

SIL Declaration

English
Liquiphant, Nivotester
Product Code: FTL325N-, FTL51B-, FTL62-, FTL64-
Declaration Number: SIL_00362_01.20

SIL Declaration

English
Liquiphant
Product Code: FTL64-
Declaration Number: SIL_00363_01.20

SIL Declaration

English
Liquiphant, Nivotester
Product Code: FTL325N-, FTL51B-, FTL62-, FTL64-
Declaration Number: SIL_00358_01.20

SIL Declaration

English
Liquiphant, Nivotester
Product Code: FTL325N-, FTL51B-, FTL62-, FTL64-
Declaration Number: SIL_00359_01.20

SIL Declaration

English
Liquiphant
Product Code: FTL64-
Declaration Number: SIL_00367_01.20

SIL Declaration

English
Liquiphant
Product Code: FTL64-
Declaration Number: SIL_00368_01.20

SIL Declaration

English
Liquiphant, Nivotester
Product Code: FTL325N-, FTL51B-, FTL62-, FTL64-
Declaration Number: SIL_00360_01.20

SIL Declaration

English
Liquiphant, Nivotester
Product Code: FTL325P-, FTL51B-, FTL62-, FTL64-
Declaration Number: SIL_00352_01.20

SIL Declaration

English
Liquiphant, Nivotester
Product Code: FTL325N-, FTL51B-, FTL62-, FTL64-
Declaration Number: SIL_00361_01.20

SIL Declaration

English
Liquiphant
Product Code: FTL64-
Declaration Number: SIL_00364_01.20

SIL Declaration

English
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Region/Country: Europe (ATEX)
Approval Agency: KIWA
Category: II 1 G, II 1/2 G, II 1/2 D, II 2 G, II 2 D
Protection: Ex t, Ex ia, Ex d e, Ex d

Explosion Protection

English
Liquiphant
Product Code: FTL51B-, FTL62-, FTL64-
Region/Country: Europe (ATEX)
Approval Agency: Endress+Hauser
Category: II 3 D, II 3 G
Protection: , Ex ec

Explosion Protection

German , English , fr
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Region/Country: International (IECEx)
Approval Agency: KIWA
Protection: Ex ec, Ex t, Ex ia, Ex d e, Ex d

Explosion Protection

English
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Region/Country: Germany
Approval Agency: DIBt
Approval Number: Z-65.40-591

Overfill Prevention

German
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Region/Country: Germany
Approval Agency: DIBt
Approval Number: Z-65.11-590

Overfill Prevention

German
Micropilot, Micropilot S, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Doppelstabsonde, Dreistabsonde, Einstabsonde, Levelflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquiphant S, Liquipoint, Liquipoint T, LIQUITREND
Product Code: FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTI52-, FTI51-, FTI26-, FTC968Z-, FTC262-, FTC260-, FMU44-, FMU43-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, QMW43-, FMU42-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMU41-, FMU40-, FMU30-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR532-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-, FMP57-, FMP56-
Approval Agency: TÜV

Pressure Equipment

German , English
Liquiphant
Product Code: FTL51B-, FTL62-, FTL64-
Region/Country: International
Approval Agency: TÜV

Safety Integrity Level (SIL)

German , English
Liquiphant
Product Code: FTL41-, FTL51B-, FTL62-, FTL64-
Region/Country: International
Approval Agency: LR

Marine

German , English
Liquiphant
Region/Country:

Heartbeat Technology

English
