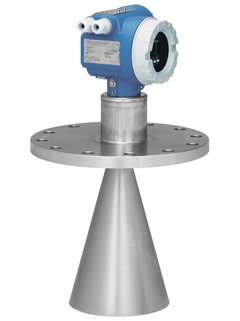

  • Micropilot FMR530

For custody transfer and inventory control applications with NMi- and PTB-approvals

The Micropilot FMR530 is used for highly accurate non-contact level measurement in storage tanks and can be applied in custody transfer applications. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR530 free space radar offers cost-effective and simple installation via 4-wire cable with HART and
24 V DC intrinsically safe power supply.

  • Benefits

    • 0.5mm accuracy (2σ value)

    • National approvals (NMi, PTB) for custody transfer

    • Applicable as stand-alone system or integrated tank gauging systems via the Tank Side Monitor NRF590

    • Easy on-site operation via menu-driven alphanumeric display

    • Easy commissioning...

  • Field of application

    With horn antenna suitable for free space applications (up to 25m) that disallow the use of a parabolic antenna due to tank/nozzle geometry.

    • Process connection: Flange

    • Temperature: -40 to +200°C (-40 to +392°F)

    • Pressure: -1 to +64bar (-14.5 to +928psi)

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Level radar

  • Supply / Communication

    4-wire (HART)

  • Frequency

    C-band (~6 GHz)

  • Accuracy

    +/- 1 mm

  • Ambient temperature

    Standard:
    -40 °C ... 80 °C
    (-40 °F ... 176 °F)
    For calibration to regulatory standards:
    -25 °C ... 60 °C
    (-13 °F ... 131 °F)

  • Process temperature

    -40 °C ... 200 °C
    (-40 °F ... 392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 64 bar
    (Vacuum ... 580 psi)

  • Main wetted parts

    316Ti

  • Process connection

    DN150 ... DN250 /3" ... 10"

  • Application

  • Max. measurement distance

    25 m (82ft)

  • https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_Mediengruppe_en.jpg https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_not_selected_FMR530.jpg
  • Communication

    4 ... 20 mA HART

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI

  • Safety approvals

    Overfill prevention WHG

  • Marine approval

    GL/ ABS

  • Application limits

    Maximum measuring range is dependent on the tank form and/or application


    Free space and many baffles

    FMR540

Documents / Manuals / Software

  • Tankvision NXA820, NXA821, NXA822

    Inventory Management System with completely integrated software for
    operation via standard web browser

    Technical Information (TI)
  • Micropilot S FMR530 Technical Information

    Level-Radar

    Continuous level transmitter for continuous and non-contact precision
    level measurement. For custody transfer andinventory control
    applications with NMi- and PTB-approvals.

    Technical Information (TI)
  • Micropilot S FMR530, FMR531, FMR532, FMR533 HART Description of Instrument Functions

    Smart Transmitter for continuous and non-contact precision level
    measurement
    For custody transfer and inventory control
    applications with NMi- and PTB-approvals

    Operating Instruction (BA)
  • Micropilot S FMR530 HART Operating Instructions

    Level-Radar

    Continuous level transmitter for continuous and non-contact precision
    level measurement. For custody transfer andinventory control
    applications with NMi- and PTB-approvals.

    Operating Instruction (BA)
  • Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

    Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

    Short Instruction (KA)
    12/00
    German , English
  • Weather protection cover Mounting Instruction

    Weather protection cover for devices with F12/T12/F23 housing.

    Short Instruction (KA)
    06/07
    German , English , Spanish , fr , Italian , Dutch
  • Installation instruction - electronics, terminal module

    Mircropilot S

    Short Instruction (KA)
    05/15
    German , English
  • Exchange of horn antenna on Micropilot S FMR530

    Exchange of horn antenna on Micropilot S FMR530

    Short Instruction (KA)
    04/12
    German , English
  • Micropilot S FMR530 HART Brief Operating Instructions
