Sample preparation
Stamoclean CAT411

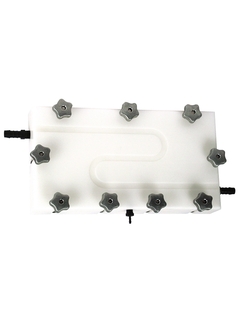

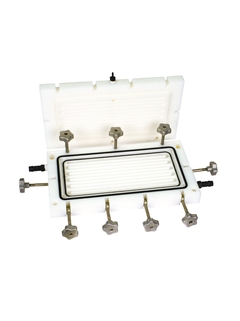

Sample preparation Stamoclean CAT411 ©Endress+Hauser
Sample preparation Stamoclean CAT411 ©Endress+Hauser
  • Sample preparation Stamoclean CAT411
  • Sample preparation Stamoclean CAT411

Self-cleaning crossflow filter for pressurized pipe sampling

Stamoclean CAT411 provides bacteria-free micro filtration of samples from pressure pipes. Its self-cleaning crossflow filter avoids filter blocking, thus increasing your process safety. Thanks to a minimized dead volume, it reflects changes of your process promptly and shortens the response time of your downstream measuring devices. Stamoclean CAT411 can be easily integrated into existing processes.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      5 to 50 °C (41 to 122 °F)

    • Process pressure

      0.2 to 1 bar (3 to 15 psi)

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CAT411
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • High operational safety thanks to robust construction

    • Bacteria-free micro filtration

    • Easy installation and integration

    • Short response time of downstream measuring devices thanks to low dead volume

    • Self-cleaning design minimizes operating costs

  • Field of application

    Stamoclean CAT411 is a self-cleaning sample preparation for:

    • Municipal wastewater treatment plants:
      - Return activated sludge
      - Waste activated sludge
      - Secondary clarifier

    • Industrial wastewater treatment plants:
      - Return activated sludge
      - Waste...

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Sample Preparation

  • Size

    370 x 200 x 70 mm
    14.43 x 7.8 x 2.73 inch

  • Design

    Housing CAT 411 POM
    Fastening screws Stainless steelSeals Perbunan®Filter membrane PTFE

  • Process temperature

    5 to 50 °C (41 to 122 °F)

  • Ambient temperature

    5 to 50 °C (41 to 122 °F)

  • Process pressure

    0.2 to 1 bar (3 to 15 psi)

  • Consistency of the sample

    to max. 8 g/l TS

  • Specials

    Sample preparation made of pressure pipe without additional pump possible, otherwise a feed pump is needed

  • Application

    Water, Wastewater, Processwater

  • Consumables

    Filter membranes necessary

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 51511288

      KIT CAT411 reserve membrane, 2 pcs

    • Order code 51511474

      KIT CAT411 pipes + connectors

    • Order code 51516465

      KIT CAT411 spare sealing

    • Order code 51512790

      Pump for CAT411

      Sample feeding pump for clear water without cutting wheel. Submersive pump for feed of clear and lightly polluted water without fibrous impurities; stationary and transportable. Pump tolerates self-throtteling by back pressure. Type KP 250 A1, 230 V, 10m power cable, pump protection with pressure pipe joint Rp 1 1/4", max. power 0,5 kW, stainless steel 1.4301, dimensions: d=149mm, h=214mm, max. head: 7m, max. capacity: 11 m3/h (free passage 1m head), enclosure class IP68.
