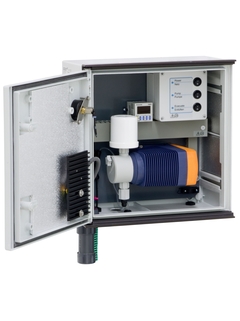

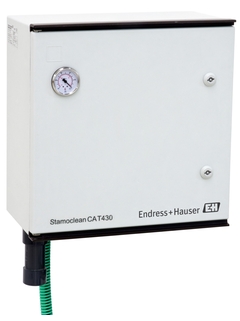

Stamoclean CAT430

Stamoclean CAT430 offers bacteria-free samples from the activated sludge and the outlet of WWTPs. ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Sample Preparation. Sample feeding with tubing or membrane pump depending on order code.

  • Size

    Hose pump box 400 x 420 x 230 mm, Filterelement 450 x 350 x 12 mm

  • Design

    Hose pump box GRP, filterelement PES dmembranes, armature and carriage high-grade steel

  • Process temperature

    5°C ... 50°C

  • Ambient temperature

    -25°C ... 60°C

  • Process pressure

    1 ... 3,5 bar

  • Sample flow rate

    Filtrate quantity per filterelement 200ml/h

  • Consistency of the sample

    to max. 8 g/l TS

  • Specials

    different mounting plates available, for routes of transportationlonger than 20 m filtrate transport with compressed air

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 60 Hz or 230 V AC / 50 Hz

  • Consumables

    no filter membranes necessarily

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Predecessor

  • Successor

    • Liquiline System CAT820 - Sample preparation system for aeration, outlets, surface waters

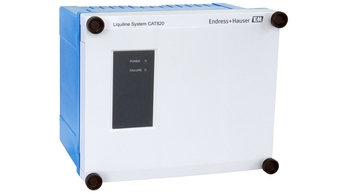

      Liquiline System CAT820

      Liquiline System CAT820 provides filtered samples directly from your aeration basin, outlet or surface waters. The optional ceramic filter allows easy cleaning, thus reducing your operating costs.
