Liquiline System CAT810

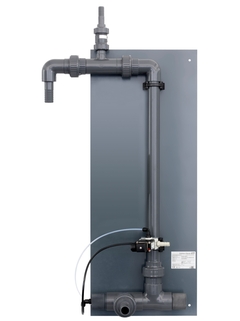

Liquiline System CAT810 - Sample preparation system for pressurized pipes and outlets, panel version ©Endress+Hauser

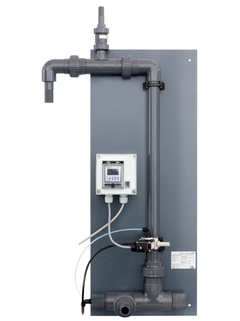

Liquiline System CAT810 - Sample preparation  for pressurized pipes and outlets, panel with timer ©Endress+Hauser

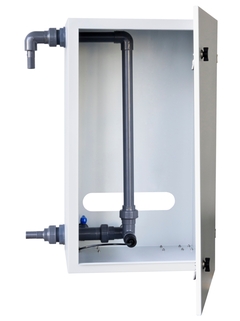

Liquiline System CAT810 - Sample preparation  for pressurized pipes and outlets, stand version ©Endress+Hauser

Self-cleaning backflush filter for sampling from pressurized pipes and outlets

Liquiline System CAT810 provides filtrate for continuous online monitoring of municipal and industrial wastewater and industrial processes. Its self-cleaning crossflow filter avoids filter blocking, thus increasing your process safety. Thanks to a minimized dead volume, it reflects changes in your process promptly and shortens the response time of your downstream measuring devices.

  • Benefits

    • Long maintenance intervals due to automatic back-flush function

    • Save costs through tool-free maintenance and easy replacement of filter elements

    • Control via the user-friendly Liquiline System analyzer for perfect synchronization of the measuring point or...

  • Field of application

    Liquiline System CAT810 is designed for:

    • Outlets of municipal and industrial wastewater treatment plants

    • Collection of aqueous samples from pressurized pipes in industrial processes

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Automatic sample preparation system for supplying process measuring devices with filtered samples from pressurized pipes

  • Size

    Panel version

    870 x 372 x 343 mm

    34.25 x 14.65 x 13.50 in

    Prepared for stand housing CA80

    828 x 327 x 327 mm

    32.6 x 12.87 x 12.87 in

    Basic version

    811 x 334 x 131 mm

    31.93 x 13.15 x 5.16 in

  • Design

    Back-wash filter system with various mounting options:

    Panel version

    Prepared for stand housing of CA80

    Basic version - filter unit

  • Process temperature

    4 to 40 °C (39 to 104 °F)

  • Ambient temperature

    4 to 40 °C (39 to 104 °F)

  • Process pressure

    1.5 to 4.0 bar (21.76 to 58.01 psi)

    for optional automatic cleaning:

    2.0 to 5.0 bar (29.0 to 72.5 psi); but at least 0.5 bar (7.3 psi) > process pressure

  • Specials

    Optional back-flush with pressurizd air or water

    Controling and parametrition via Lquiline System CA80

    Stand-alone version with time-control available

  • Application

    Sampling from pressurized pipes

    Preliminary and secondary clarification of municipal and industrial wastewater treatment plants

    Sampling of aqueous media from industrial processes

  • Power supply

    100 to 120/200 to 240 V AC ±10%, 50/60 Hz
