Specs at a glance
-
Measurement range
0 to 2.5 AU
0 to 50 OD (depending on optical pathlength) -
Process temperature
0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours -
Process pressure
Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly
Field of application

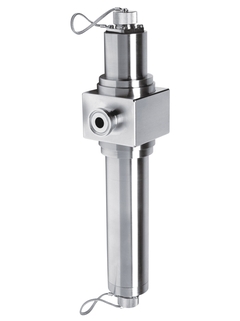

The OUSAF44 UV sensor monitors the concentration of your product in process liquids. Its outstanding filter performance ensures highest linearity and full consistency with lab results. This provides you with fast and reliable process information and increases the yield of your product. You also benefit from EasycalTM – the patented system for easy, liquid-free online calibration traceable to NIST. OUSAF44 is approved for hazardous areas (ATEX, FM) and suitable for hygienic processes (CIP/SIP).
The OUSAF44 sensor measures the UV absorption for:
Measurement of protein concentrations
Chromatography control
Permeate and retentate monitoring
Concentration measurement of organic compounds
Aromatics detection
Filter monitoring
With its international explosion-protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.
Benefits
Fast and reliable monitoring of product concentration for better process control and simplified quality control
Precise measured values with full consistency to laboratory results
Patented EasycalTM system option for easy, liquid-free online calibration traceable to NIST
Low-maintenance sensor with long service life and stable operation
Outstanding filter performance provides highest linearity
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Approved for hazardous area use
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity

-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
OUSAF44
Optical sensor combined with the OUA260 flow assembly for the measurement of UV absorption
