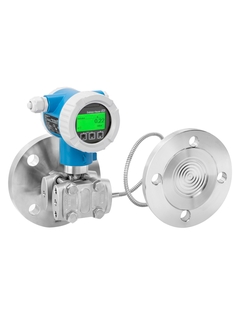

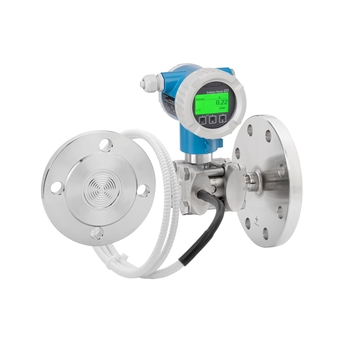

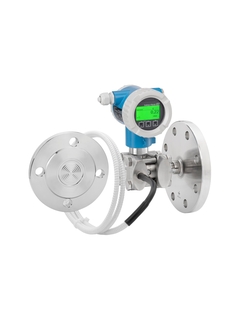

Deltabar PMD78B - differential pressure transmitter

Deltabar PMD78B ©Endress+Hauser
Deltabar PMD78B ©Endress+Hauser
  • Deltabar PMD78B
  • Deltabar PMD78B

Smart pressure transmitter which detects process anomalies like plugged impulse lines

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      Standard:
      up to 0.1 %

    • Process temperature

      -40°C...+400°C
      (-40°F...+752°F)

    • Pressure measuring range

      100 mbar...40 bar
      (1.5psi...600 psi)

    • Main wetted parts

      316L, AlloyC,
      Tantal, Monel
      PTFE, Gold

    • Material process membrane

      316L, AlloyC,
      Tantal,
      Monel
      PTFE
      Gold

    • Measuring cell

      100 mbar...40 bar
      (1.5 psi...600 psi)

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

PMD78B
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Wireless control of the device in hard to reach areas with the SmartBlue App and a Bluetooth® connection

    • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

    • With Heartbeat Technology you are able to...

  • Field of application

    • Pressure measuring ranges up to 40 bar (600 psi)

    • Process temperatures up to 400 °C (752 °F) with diaphragm seal

    • Static pressure: up to 160 bar (2400 psi)

    • Accuracy: up to +/- 0.075%

Features and specifications

Back

Details

  • Measuring principle

    Differential pressure

  • Characteristic / Application

    Smart differential pressure transmitter with one or two capillaries, full range of certifications and Heartbeat Technology.

    Intuitive and clear wizards for commissioning, proof tests and verification.

  • Specialities

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities

    HistoROM

  • Supply / Communication

    Ex d, Ex e, non-Ex::

    10.5...35V DC

    Ex i: 10.5...30V DC

  • Accuracy

    Standard:

    up to 0.1 %

  • Long term stability

    0.025 % of URL/ year

    0.05 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • Ambient temperature

    -54°C...+85°C
    (-65°F...+185°F)

  • Process temperature

    -40°C...+400°C
    (-40°F...+752°F)

  • Process pressure absolute / max. overpressure limit

    160 bar (2.400 psi)

  • Pressure measuring range

    100 mbar...40 bar
    (1.5psi...600 psi)

  • Main wetted parts

    316L, AlloyC,

    Tantal, Monel

    PTFE, Gold

  • Process connection

    Thread:

    MNPT1/2, G1/2

    Flange:

    NPS 2"...4", DN50...100

  • Max. measurement distance

    160 m (525 ft) H2O

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, CSA C/US, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1,

    NACE MR0175,

    NACE MR0103

  • Options

    Touch control display

  • Application limits

    Keine

  • Measuring principle

    Differential pressure

  • Characteristic

    Specialist with one or two capillaries for accurate differential pressure measurement.

    Intuitive and clear wizards for commissioning, proof tests and verification.

  • Supply voltage

    Ex d, Ex e, non-Ex:

    10.5...35V DC

    Ex i: 10.5...30V DC

  • Reference Accuracy

    Standard:

    up to 0.1 %

  • Long term stability

    0.025 % of URL/ year

    0.05 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • Process temperature

    -40°C...+400°C
    (-40°F...+752°F)

  • Ambient temperature

    -40°C...+85°C
    (-40°F...+185°F)

  • Measuring cell

    100 mbar...40 bar

    (1.5 psi...600 psi)

  • Smallest calibratable span

    5 mbar (0.075 psi)

  • Vacuum resistance

    50 mbar (0.73 psi)

  • Max. Turn down

    100:1

  • Max. overpressure limit

    160 bar
    (2400 psi)

  • Process connection

    Thread: MNPT1/2, G1/2

    Flange: NPS 2"...4", DN50...100

  • Material process membrane

    316L, AlloyC,

    Tantal,

    Monel

    PTFE

    Gold

  • Material gasket

    PTFE, FKM,

    EPDM, FFKM

  • Fill fluid

    Silicone oil,

    inert oil,

    vegetable oil,

    low- / high temperature oil

  • Material housing

    Aluminium, 316L

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, CSA C/US, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN10204-3.1,

    NACE MR0175,

    NACE MR0103

  • Specialities

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM
