Field of application

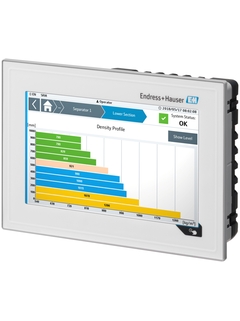

Profile Vision Compact gives users a detailed insight into their separation processes. It is the perfect solution for full monitoring of interfaces and emulsion layers of different density. With this system, continuous density profiles and interface levels can be visualized easily and clearly. The results can be implemented quickly into a DCS for further process optimization and application control.
Profile Vision Compact calculate and monitore interface and emulsion layers with different densities in a separation tank. Typical applications for Profile Vision Compact are any type of vessel where two or more media are separated due to gravity like: Separator, Desalter, Free Water Knock Out Drum, Treater, HF Alcylation, HF Stripper, Settling tanks, Wash tanks and more.
Profile Vision Compact must be installed in a safe environment (not in hazardous areas or Ex zones).
Benefits
Precise process information thanks to continuous interface and density profile measurement over the entire measuring range
Reliable monitoring of up to 5 separation vessels with multiple sections
-
Flexible adaptation of media characteristic values to varying conditions
-
Easy HMI integration into customer control systems via Modbus TCP or OPC UA
-
Detailed warnings and alarms enable swift decision-making and remedial action
-
-
further parts
7" touch display
Order code71413801 -
-
-
further parts
Gateway (SiteManager Ethernet & 3G)
Order code71413802 -
-
-
further parts
Controller assembly (Standard)
Order code71414438 -
-
-
further parts
Remote IO assembly (12x 4...20mA input)
Order code71414439 -
-
-
further parts
PROFIBUS DP Master interface module
Order code71414458 -
-
-
further parts
4-20mA HART input module; 2 inputs
Order code71414460 -
