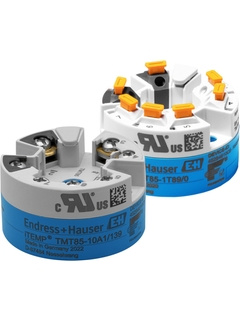

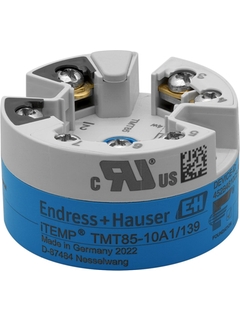

iTEMP TMT85
Temperature head transmitter

Transformation of sensor signals into standardized digital output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optimization of the measurement accuracy by sensor-transmitter matching.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RID14
8 channel field indicator for fieldbuses

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
More information
Compare
RID16
8 channel field indicator for fieldbuses

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
More information
Compare
HAW569
Surge arresters

Surge arresters for field mounting
More information
Compare

Benefits
Easy and standardized communication via FOUNDATION Fieldbus™ H1
Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27
Safe operation in hazardous areas thanks to international approvals...

Show more
Easy and standardized communication via FOUNDATION Fieldbus™ H1
Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27
Safe operation in hazardous areas thanks to international approvals such as FM IS, NI; CSA IS, NI; ATEX Ex ia, Ex nA for intrinsically safe installation in zone 1 and zone 2
High accuracy through sensor-transmitter matching
Reliable operation with sensor monitoring and device hardware fault recognition
Several mounting versions and sensor connection combinations
Rapid no-tools wiring due to optional spring terminal technology

Show less

Field of application
2 universal input channels and FF™ protocol for the conversion of input signals into digital output signals
The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)
...

Show more
2 universal input channels and FF™ protocol for the conversion of input signals into digital output signals
The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)
For the highest level of safety, availability and risk reduction
Installation in flat-face terminal head as per DIN EN 50446

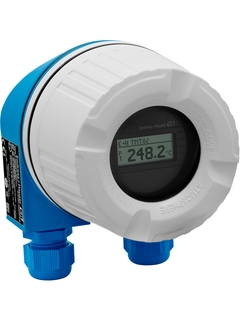

Optional installation in field housings even for use in Ex d areas - with mounting brackets for wall or pipe mounting

Show less

Features and specifications

Back

Details

Measuring principle

Head transmitter
Input

2 x RTD, TC, Ohm, mV
Output

FOUNDATION Fieldbus H1
Auxiliary power supply

9...32 V DC (FOUNDATION Fieldbus)

9...17,5 V DC (FISCO/FNICO)
Communication

FOUNDATION Fieldbus H1
Installation

Terminal head form B
Accuracy

(Pt100) <= 0,1 K

(Pt100) <= 0,18 °F
Galvanic isolation

yes
Certification

ATEX II1G Ex ia IIC T4/T5/T6

ATEX II3G Ex nA IIC T6

ATEX II3D Ex tc IIIC Dc

ATEX II1G Ex ia IIC T6, II3D

ATEX II3G Ex nA IIC T6, II3D

ATEX II2G Ex d T6, II2D Ex tb IIIC

FM+CSA IS, NI I/1+2/ABCD

FM IS, NI I/1+2/ABCD

CSA IS, NI I/1+2/ABCD

CSA XP, NI, DIP I, II, III/1+2/A-G

NEPSI Ex ia IIC T4/T5/T6

NEPSI Ex d IIC T6 Gb

NEPSI Ex nA IIC T4/T5/T6

IECEx Ex ia IIC T4/T5/T6

FM XP, NI, DIP I, II, III/1+2/A-G

IECEx Ex tb IIIC Db

IECEx Ex d T6 Gb, Ex tb IIIC Db

ATEX IECEx II1G Ex ia IIC T6 Ga

FM+CSA IS, NI I/1+2/ABCD

ATEX IECEx II1G Ex ia IIC T6 Ga

Show more
Show less

Documents / Manuals / Software

Download type

Filter

iTEMP TMT85
Dual Input Temperature Transmitter
with FOUNDATION Fieldbus™ communication

Technical Information (TI)
iTEMP TMT85
Temperature transmitter
with FOUNDATION Fieldbus™ - protocol

Operating Instruction (BA)
TID10 Operating Instructions

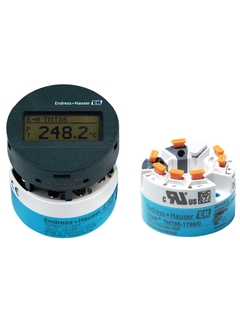

Pluggable display for head transmitters (TMT8x)

Operating Instruction (BA)
Brief operating instructions iTEMP® TMT85
Two channel temperature head transmitter with FOUNDATION
Fieldbus™ protocol

Short Instruction (KA)

03/16

German , English , Italian
