Liquiphant FTL85

Liquiphant FailSafe FTL85 ©Endress+Hauser

Vibronic measuring principle

Functional safety SIL in process instrumentation

Liquiphant with permanent function check is the safe choice for point level detection in liquids

  • Liquiphant FailSafe FTL85

Coated point level switch for liquids for FailSafe overfill prevention

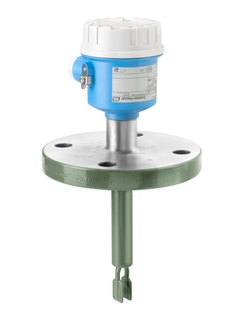

Liquiphant FTL85 is a coated point level switch for use in hazardous areas with all international certificates. FailSafe overfill prevention in applications with functional safety up to SIL3 with one device. With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Xpert selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      –50°C...+150°C
      (–58°F...+300°F)

    • Process pressure absolute / max. overpressure limit

      Vacuum...40 bar
      (580 psi)

    • Min. density of medium

      Density from 0.4 g/cm3
      (0.4 SGU)

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FTL85
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Use in safety systems requiring functional safety to SIL3 in accordance with IEC 61508 Ed.2.0/ IEC 61511-1/ISA 84-1 and DIN EN ISO 13849

    • Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button

    • Permanent self-...

  • Field of application

    Point level switch for liquids up to SIL3.

    • Process connections: Threads and flanges

    • Temperature: -50 to +150°C (-76 to +300°F)

    • Pressure: -1 to +40bar (-14.5 to +580psi)

    • Sensor length: Extension pipe up to 3m (9.8ft)

    • Sensor material: Enamel, ECTFE and...

Features and specifications

Back

Details

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    Coated point level switch for MIN and MAX safety applications up to SIL3,
    Dual Sealing/ Second line of defense,
    Modular housing concept

  • Specialities

    Outstanding features:
    - permanent LIVE signal monitors function safety

    - failsafe design and

    - high availability of the measuring values

  • Supply / Communication

    2-wire 4...20 mA

  • Ambient temperature

    -50°C...+70°C
    (-58°F...+160°F)

  • Process temperature

    –50°C...+150°C
    (–58°F...+300°F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...40 bar
    (580 psi)

  • Min. density of medium

    Density from 0.4 g/cm3
    (0.4 SGU)

  • Main wetted parts

    With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials

  • Process connection

    Flange:

    DN25...DN100,

    ASME 1"...4",

    JIS 10K...20K

  • Sensor length

    Extension pipe up to 3 m (9.8 ft)

  • Communication

    2-wire 4...20 mA

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, EAC

  • Safety approvals

    Overfill protection WHG

    Leakage Detection

    SIL3

  • Options

    AlloyC Material

    PWIS free

    Pressure tight feed through

    Weather protection

  • Components

    Nivotester FTL825, Transmitter

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 52025606

      Cover F16 grey, PBTP, gasket

      Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.

    • Order code 52025790

      Cover F16 transparent, gasket

      Gasket EPDM. Usage: housing F16 Polyester.

    • Order code 52004137

      O-ring 71.0x3.55 EPDM, 5 pieces

      Usage: cover, housing F16, Polyester.

    • Order code 52004133

      Adapter set cable entry NPT1/2

      Usage: housing F16, Polyester.

    • Order code 52004134

      Adapter set cable gland M20

      Usage: housing F16, Polyester.

    • Order code 52004135

      Adapter set cable entry G1/2

      Usage: housing F16, Polyester.

    • Order code 52002698

      Cover F13 Ex Alu, gasket

      O-ring EPDM. Usage: housing F13, aluminium, Ex d.

    • Order code 52002699

      Cover F17 Alu, gasket

      O-ring EPDM. Usage: housing F17, aluminium.

    • Order code 52027693

      Cover F13/17/18 Alu,sight glass,gasket

      O-ring 70.0x3.0 EPDM. Usage: housing F13/F17/F18 Alu. Not for EEx d.

    • Order code 71114754

      Cover F27 316L, gasket EPDM

      Material: 316L. O-ring 70.0x3.0 EPDM. Usage: stainless steel housing F27, FTL50/FTL51/FTL51C, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 71185025

      Cover F27 316L, gasket FVQM

      Material: 316L. O-ring 70.0x3.0 FVQM. Usage: stainless steel housing F27, FTL80/FTL81/FTL85, FTM50/FTM51/FTM52.

    • Order code 52004277

      Sealing set EPDM,cover F13/17/18/27,10pc

      Consists of: 10x O-ring 70.0x3.0 EPDM.

    • Order code 71114756

      Sealing set FVQM, cover F27, 3 pc.

      Consists of: 3x O-ring 70.0x3.0 FVQM. Usage: FTL50/FTL51/FTL51C, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 52027000

      Cover F15 316L, gasket

      Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.

    • Order code 52027002

      Cover F15 316L, sight glass, gasket

      Sight glass: glass. Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.

    • Order code 52028179

      Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

      Profile gasket cover. Usage: housing F15 stainless steel.

    • Order code 52002447

      Cable entry G1/2, gasket

      Consists of: adapter M20 > G1/2, 316L. Gasket NBR. Blind plug G1/2. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 52002448

      Cable entry NPT1/2, gasket

      Consists of: adapter M20 > NPT1/2, 316L. Gasket NBR. Plug NPT1/2. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 52004278

      Cable gland M20, gasket

      Consists of: Cable gland M20. O-ring EPDM. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 71185029

      Cable gland M20 Metal F15, gasket

      Consists of: cable gland M20, metal. O-ring 17.0x2.0 EPDM + PTFE/FDA. Usage: stainless steel housing F15, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.

    • Order code 52006903

      Cover T13 Alu, gasket EPDM

      O-ring EPDM. Usage: housing T13, aluminium.

    • Order code 52028271

      Cover T13 Alu,Ex d,high,sight glass,gas.

      Sight glass: mineral glass. Individual tested, EEx d/XP. O-ring EPDM, FDA 72.0x3.0. Usage: housing T13 aluminium.

    • Order code 52007103

      Cover T13 "Terminal" Alu, gasket EPDM

      O-ring EPDM. Usage: terminal compartment, housing T13, aluminium.

    • Order code 52008495

      Sealing set EPDM 73.0x3.0, 10 pieces

      Usage: cover.

    • Order code 71184994

      Electronics FEL85 4-20mA

      Level switch 2-wire 12-30VDC. Ambience temperature -40oC. Hardware version 01.00. Software version 01.00.00. Usage: FTL80/FTL81/FTL85.

    • Order code 71184997

      Electronics FEL85 4-20mA, -50oC

      Level switch 2-wire 12-30VDC. Ambience temperature -50oC. Hardware version 01.00. Software version 01.00.00. Usage: FTL80/FTL81/FTL85.

    • Order code 52010285

      M12 socket, 90deg, 5m cable

      M12 plug socket, cable side. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTL51B, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B, QMW43.

    • Order code 52024216

      Cable 4x0,34, box M12, 316L, 90o, L=5m

      M12x1 plug. 5m cable PVC, 316L lock. Especially for hygiene applications. Usage: FTL33, FTL50, FTL51B, FTL80/FTL81/FTL85, FTW23, FTW33, QMW43.

    • Order code 52005977

      Lubricant "SYNTHESO GLEP1" (tube a 8g)

    • Order code 71067434

      Modification name plate, non Ex

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

    • Order code 71127760

      Protection cover F16 housing

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

    • Order code 71040497

      Weather protection cover F13/F17/F18/F27

      Usage: FMI51/FMI52, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52.
