TA535

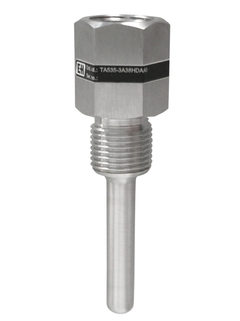

Thermowell for temperature sensors
For use in general purpose industrial applications and processes generating medium to high stress
The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress. For pipes or tanks that have threaded process connections.
It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also be used in combination with thermometers without a thermowell. It is available with NPT, gas and M20 connections (on thermometer and process sides).
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Max. process pressure (static)
100 bar (1450 psi)
-
Maximum standard immersion length
5.000 mm (196,85")
-
Max. immersion length on request
10.000 mm (393,7")
-
-
Benefits
Several types of process connections can be selected as standard
Several outer diameters can be selected as standard
Connections to the thermometer: ½" NPT, G ½” and M20x1.5 thread
Made in SS 316L / 1.4404
The material certification can be selected as...
-
Field of application
The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress. For pipes or tanks that have threaded process
connections. It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also...
