Microwave barrier
Switch amplifier
Nivotester FTR325

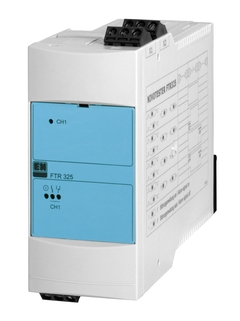

Nivotester FTR325 ©Endress+Hauser

For the Soliwave FQR50/FDR50 microwave barrier

The Nivotester FTR325 is a 1-channel switch amplifier and suitable for the Soliwave FQR50/FDR50 microwave barrier. Used for point level detection for any type of solids or for control and counting tasks for packaged goods.

  • Benefits

    • High level of operational safety through line monitoring up to the sensor

    • Easy installation due to compact housing for easy inline mounting on standard rack rails and wiring via pluggable terminal block connectors

    • Selectable pick-up and/or drop-out...

  • Field of application

    Typical bulk solids are: wood chips, wood dust or flour, plaster, cement, ash, paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.

    • Ambient temperature: -20 to +60°C (-4 to +140°F)

    • Mounting: Standard rack rails

    • International...

Features and specifications

Back

Details

  • Measuring principle

    Microwave barrier

  • Characteristic / Application

    Design: Top-hat rail

  • Ambient temperature

    -20 °C ... 60 °C
    (-4°F ... 140 °F)

  • Communication

    Relay, DPDT

  • Certificates / Approvals

    ATEX, IEC Ex

  • Components

    Emitter: FQR50
    Receiver: FDR50

  • Successor

    Nivotester FTR525

Documents / Manuals / Software

  • Technical Information Nivotester FTR 325

    1-channel switch amplifier for the Soliwave M microwave barrier

    Technical Information (TI)
  • Operating instructions Nivotester FTR 325

    Switching unit for the microwave barrier Soliwave M

    Short Instruction (KA)
    08/16
    German , English , Spanish , fr , Italian , Dutch
  • Soliwave M FQR50, FDR50 Nivotester FTR325

    Approval No.: IECEx BVS 09.0007X


    Zone 0/1 Ex ia IIC T4,

    Ex iaD 20/21 IP66 T98°C

    [Zone 0] [Ex ia] IIC,

    [Ex iaD]

    Ex Safety Instructions (XA)
  • Nivotester

    Product Code: FTR325-
    Declaration Number: BVS07ATEX E148X

    EU Declaration
    German , English , fr
  • Nivotester

    Product Code: FTR325-
    Declaration Number: EC_00562_01.17

    EU Declaration
    German , English , fr
  • Nivotester, Soliwave M

    Product Code: FTR325-, FQR50-, FDR50-
    Region/Country: International
    Approval Agency: IECEx

    Explosion Protection
    English
  • Nivotester, Soliwave M

    Product Code: FDR50-, FQR50-, FTR325-
    Approval Agency: BVS

    Explosion Protection
    German , English

Accessories / Spare parts

Nr
Order code
Specification

  • Successor

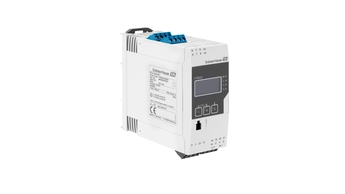

    • Nivotester FTR525

      The Nivotester FTR525 allows convenient adjustment and parametrization of the microwave barrier Soliwave in a well accessible location near the measuring point or in the control room of the plant.
