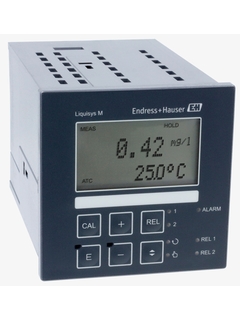

Liquisys CCM223 is a compact panel transmitter for chlorine, chlorine dioxide and pH measurement.

Disinfection transmitter
Liquisys CCM223

Compact panel device for the water, wastewater, food and power industries

CCM223
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Input

    Chor / Chlordioxide and pH/ORP Sensor.

  • Output / communication

    - Chlor/Chlordioxid, pH, Temperatur : 0/4-20mA- Profibus- Hart + 0/4-20mA

Field of application

Liquisys CCM223 is a standard chlorine transmitter with integrated pH compensation for free chlorine. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.

The Liquisys CCM223 transmitter works with all analog total chlorine, free chlorine, chlorine dioxide and pH sensors in:

  • Water & Wastewater
    - Disinfection process control and monitoring
    - Desalination with membrane technology
    - Swimming and whirl pools
    - Gas scrubbers

  • Food & Beverages
    - Disinfection of process water

  • Power plants
    - Cooling water disinfection

Liquisys CCM223 features the following protocols and interfaces:

  • 0/4...20mA

  • HART

  • PROFIBUS DP

  • PROFIBUS PA

Benefits

  • More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.

  • Reliable chlorine and pH control: Current input for flow rate monitoring with controller shut off or for feedforward control.

  • Easy to operate and service: Intuitive user interface, simple calibration for chlorine and pH, direct access for manual contact control.

  • Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

  • Fit for every application: Numerous extensions, e.g. P(ID) controller, timer, etc., allow for flexible adaption to all processes.
