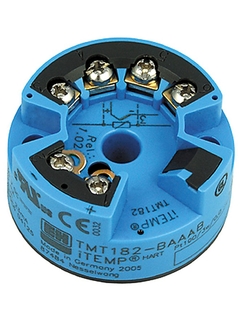

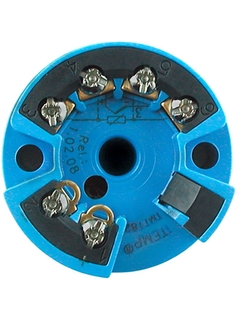

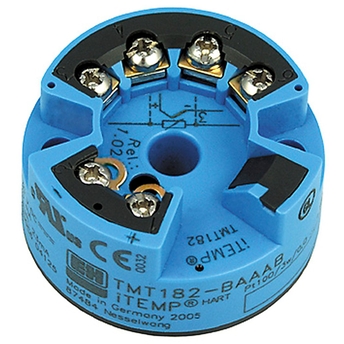

iTEMP TMT182
Temperature head transmitter

Transformation of sensor signals into stable and standardized output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals using HART^® communication. It can be installed as an intrinsically safe apparatus in Zone 1 hazardous areas. Swift and easy operation, visualization and maintenance by PC using operating software.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare
RIA14
Loop-powered field indicator

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!
More information
Compare
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
RB223
Loop powered passive barrier

One or two-channel barrier for the safe separation of 4...20 mA standard signal circuits
More information
Compare

Benefits
Front end unit or panel unit operation using the hand operating module or PC
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant
EMC to NAMUR NE 21, CE
Ex-Certification: ATEX Ex ia and dust...

Show more
Front end unit or panel unit operation using the hand operating module or PC
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant
EMC to NAMUR NE 21, CE
Ex-Certification: ATEX Ex ia and dust zone 22 in compliance with EN 50281-1; FM IS; CSA IS
Galvanic isolation
SIL 2 compliant;
Marine approval

Show less

Field of application
Temperature head transmitter with HART® -protocol for converting various input signals into an scalable 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD), thermocouple (TC), Resistance transmitter (Ω), voltage transmitter (mV)
HART® -...

Show more
Temperature head transmitter with HART® -protocol for converting various input signals into an scalable 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD), thermocouple (TC), Resistance transmitter (Ω), voltage transmitter (mV)
HART® -protocol for front end unit or panel unit operation using the hand operating module (DXR275, DXR375) or PC (e. g. ReadWin 2000 or FieldCare)

Show less

Features and specifications

Back

Details

Measuring principle

Head transmitter
Input

1 x RTD, TC, Ohm, mV
Output

1 x analog 4...20 mA
Auxiliary power supply

11,5...35 V DC (standard-version)

11,5...30 V DC (Ex-version)
Communication

HART-protocol
Installation

Terminal head form B
Accuracy

(Pt100, -50...200 °C) <= 0,2 K

(Pt100, -58...392 °F) <= 0,4 °F
Galvanic isolation

yes
Certification

UL Ex IS

UL Ex NI

Marine approval

GOST Ex i

FM IS,NI,Class I,Div.1+2,Group ABCD

CSA IS,NI,Class I,Div.1+2,Group ABCD

ATEX II1G Ex ia IIC T4/T5/T6

ATEX II3G Ex nA IIC T4/T5/T6

ATEX II3D

ATEX II1G Ex ia IIC T6, II3D

ATEX II3G Ex nA IIC T6, II3D

FM+CSA IS,NI,Class I,Div.1+2,Group ABCD

CSA General Purpose

IECEx Ex ia IIC T6/T5/T4

ATEX IECEx II1G Ex ia IIC T6 Ga

NEPSI Ex ia IIC T4-T6

NEPSI Ex nA II T4-T6

EAC Ex ia

GL (German Lloyd)

Show more
Show less

Documents / Manuals / Software

Download type

Filter

iTEMP TMT182 HART®
Universal temperature head transmitter for resistance
thermometers (RTD), thermocouples, resistance and voltage transmitters,
settable via HART ® -Protocol

Technical Information (TI)
Operating manual iTEMP HART Communication
iTEMP HART Communication TMT 182/TMT 122

Operating Instruction (BA)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC Software

Operating Instruction (BA)
Operating Manuals ReadWin 2000 (GB)
Operating Manuals ReadWin 2000

Operating Instruction (BA)
Brief operating manual iTEMP® HART® TMT182
Temperature head transmitter with HART® protocol

Short Instruction (KA)

08/08

German , English , fr , Italian
TMT182 ATEX II1G Safety Instructions
iTEMP Temperature transmitter TMT182

Ex Safety Instructions (XA)
TMT182 ATEX II1G Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
iTEMP TMT181, TMT187/188, TMT182 ATEX: II 3D: Ex ia IIIC T85 °C...T120 °C Dc II 3D: Ex tc IIIC T120 °C Dc II 3G: Ex nA IIC T6...T4 Gc Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Safety instructions ATEX II3D
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Safety instructions ATEX II3G
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Temperature transmitter 0ExiaIICT6...T4 X Safety Instructions
Safety Instructions EAC: 0ExiaIICT6...T4 X, iTEMP TMT181, TMT182,
TMT187, TMT188 temperature transmitter

Ex Safety Instructions (XA)
Control Drawing CSA Intrinsical Safety, Nonincendive iTEMP® HART TMT182
Installation Notes for hazardous locations for temperature head
transmitter iTEMP® HART TMT182

Certificate FM/CSA (ZD)
Control Drawing FM IS, NI iTEMP® HART TMT182
Temperature head transmitter iTEMP® HART TMT182
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
Control Drawing FM IS, NI iTEMP® HART TMT182
Temperature head transmitter iTEMP® HART TMT182
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
Control Drawing CSA Intrinsical Safety, Non incendive iTEMP® HART TMT182
Temperature head transmitter iTEMP® HART TMT182
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
iTEMP HART® TMT182
Temperature Transmitter
with HART communication
Functional safety manual (SIL)

Special Documentation (SD)
iTEMP TMT182 Manufacturer information for users regarding hardware updates (NE53)
Electronic components have been changed, making a DeviceRel (xx.yy.zz)
change at the yy-position necessary. The hardware version has been
increase at
the last digit.
The TMT182-xBxxx; TMT182-xCxxx; TMT182-xDxxx; TMT182-xExxx; TMT182-xFxxx
version have NO SILconformity.

Manufacturer Information (MI)
Mesure de température
Capteurs et transmetteurs pour les industries de process

Fields of Activities (FA)

12/19

fr
温度测量
过程工业用温度传感器和温度变送器

Fields of Activities (FA)

12/14

Chinese
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych

Fields of Activities (FA)

10/14

Polish
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.

Fields of Activities (FA)

06/13

Russian
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo

Fields of Activities (FA)

04/18

Italian
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso

Fields of Activities (FA)

04/18

Spanish
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

03/13

English
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler

Fields of Activities (FA)

03/13

Turkish
Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

02/20

English
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie

Fields of Activities (FA)

02/20

German
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

Competence Brochure (CP)

08/11

Russian
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

Competence Brochure (CP)

04/10

Russian
Chemical plant uses 350 temperature transmitters
Field and head temperature transmitters used in global chemical company
in their production processes.

Case Studies (CS)

10/07

English
Temperature transmitters and components (IN)
A new generation of transmitters and components offers simple
operation and greater control

Innovations (IN)

03/11

English
iTEMP TMT182 Head Transmitter via HART to the PlantPAx Process Automation System
System using a ControlLogix 1756 HART Analog Input Module
Integration Document

System Partner (SP)

01/09

English
Kopftransmitter TMT182
Temperatur-Kopftransmitter (2-Draht) mit programmierbarem Messbereich,
kundenspezifischer Linerarisierung und HART-Kommunikation, zur Montage
im Anschlusskopf Form DIN B

Tender Text

11/09

German
EDD Single, PDM_HART_TE_iTEMPTMT182_0x00C8_0x02_0x03, 01.10.2014 (Temperature, iTEMP, 0x00C8)
HART,

PDM Version: 6.0 SP5, 6.1, 8.2

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_TE_iTEMP_TMT182_0x00C8_0x01_0x01, 07.11.2018 (Temperature, iTEMP, 0x00C8)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, iTemp_TMT182_V1_1, 08.07.2019 (Temperature, iTEMP, 0x00C8)
HART,

DeviceCare Version: 1.06.00

Field Device Manager Version: R430.1

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Plant Resource Manager Version: R3.11

Device Type Manager (DTM)

1.4.188.39

Language neutral
head transmitters
Product Code: TMT182-, TMT182L-
Declaration Number: HE_00464_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

English
ACCESSORIES: TC INSERT, head transmitters, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Product Code: TMT85-, TPC100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Declaration Number: HE_00237_03.15
Manufacturer Specification: Explosion protection, EMC

Manufacturer Declaration

Russian
head transmitters
Product Code: TMT182-
Declaration Number: EC_00320_01.16

EU Declaration

German , English , fr
head transmitters
Product Code: TMT181-, TMT182-, TMT187-, TMT188-
Declaration Number: EC_00160_01.16

EU Declaration

German , English , fr
head transmitters
Product Code: TMT182-
Declaration Number: EC_00159_01.16

EU Declaration

German , English , fr
head transmitters
Product Code: TMT182-
Declaration Number: EC_00168_01.16

EU Declaration

German , English , fr
ACCESSORIES, DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT127-, TMT128-, TMT142-, TMT162-, TMT180-, TMT180L-, TMT181-, TMT181L-, TMT182-, TMT182L-, TMT187-, TMT188-, TMT80-, TMT82-, TMT84-, TMT85-, OTMT127-, OTMT128-, OTMT187-, OTMT188-, OTMT80-, OTMT82-, OTMT84-, OTMT85-, TID10-, TMT111L-, TMT112-, TMT112L-, TMT121-, TMT121L-, TMT122-, TMT125-
Declaration Number: EC_00567_01.17

EU Declaration

German , English , fr
head transmitters
Product Code: TMT180-, TMT181-, TMT182-
Region/Country: China
Approval Agency: ACMA
Approval Number: MD-17038A/09/EN

Miscellaneous

English
DIN Rail Transmitter, Field transmitter, head transmitters, Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP020 003 126

Miscellaneous

Russian
DIN Rail Transmitter, Field transmitter, head transmitters, RTD-thermometer, Process TC Heavy duty, Process RTD Heavy duty, process displays, power supply and barrier, contactors / transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-, TTR35-, TTR31-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR31-, TMR35-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC № RU D-DE.AG95.B.00650

Miscellaneous

Russian
head transmitters
Product Code: TMT182-
Region/Country: Europe (ATEX)
Approval Agency: PTB
Category: II 2 G, II 1 G
Protection: Ex ia IIC T6...T4

Explosion Protection

German , English
head transmitters
Product Code: TMT182-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T4 Ga/Gb

Explosion Protection

Chinese
head transmitters
Product Code: TMT182-
Region/Country: South Korea
Approval Agency: KOSHA
Protection: Ex ia IIC T6...T4

Explosion Protection
head transmitters
Product Code: TMT182-
Region/Country: International (IECEx)
Approval Agency: BKI
Protection: Ex ia

Explosion Protection

English
head transmitters
Product Code: TMT182-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex nA IIC T6...T4 Gc

Explosion Protection

Chinese
head transmitters
Product Code: TMT182-
Region/Country: USA
Approval Agency: FM
Category: I/1,2/ABCD
Protection: AEx, NI, IS

Explosion Protection

English
DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT162-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Protection: [Ex ia Ga] IIC T6...T4 Gb, Ex d IIC T6...T4 Ga, Ex d IIC T6...T4 Ga/Gb, Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex tb IIIC Txxx°C Gb

Explosion Protection

Russian
head transmitters
Product Code: TMT182-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T4 Ga/Gb

Explosion Protection

Chinese
head transmitters
Product Code: TMT182-
Region/Country: USA, Canada
Approval Agency: CSA
Category: I/1,2/ABCD
Protection: GP, NI, IS

Explosion Protection

English
head transmitters
Product Code: TMT182-
Region/Country: Europe (ATEX)
Approval Agency: PTB
Category: II1G, II2G
Protection: Ex ia IIC T6

Explosion Protection

German , English
DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.32.004.A NO 74639

Metrology

Russian
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, head transmitters, Process RTD General purpose, Process RTD Heavy duty
Product Code: TS211-, TS111-, TR88-, TR66-, TR62-, TPR300-, TPR100-, TMT82-, TMT182-, TM131-
Approval Agency: NMI
Approval Number: NMI TC8683

Metrology

English
DIN Rail Transmitter, Field transmitter, Low cost RTD General purpose, Process RTD Direct contact, Process RTD Explosion proof, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process RTD direct in contact, Process TC Explosion proof, RTD complete assembly, RTD thermometer Zone "0", RTD-thermometer, head transmitters
Product Code: TR44-, TR45-, TR47-, TR48-, TSM187-, TSM470-, TSM487-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST90-, TR15-, TMT121-, TMT122-, TMT127-, TMT128-, TMT162-, TMT180-, TMT181-, TMT182-, TMT188-, TR10-, TR11-, TR12-, TR13-
Region/Country: China
Approval Agency: NEPSI
Approval Number: CN_SMB_2004-T180

Metrology

Chinese
head transmitters
Product Code: TMT180-, TMT181-, TMT182-, TMT187-, TMT188-
Region/Country: International
Approval Agency: DNVGL

Marine

English
RTD-thermometer, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters, head transmitters, DIN Rail Transmitter
Product Code: TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, TMT180-
Region/Country: Canada, USA
Approval Agency: UL

Ordinary Location Product Safety

English

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code

  The unit is not repairable

  Show details Show less
- Order code 51001112

  Spare part set for TMT181/187/188/182

  (4 screws, 6 springs, 10 spring rings)

  Show details Show less
- Order code 51000856

  DIN rail clip

  according to IEC 60715 for temperature head transmitters.

  Show details Show less
- Order code FXA195-

  Commubox FXA195

  Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  Show details Show less
- Order code READWIN-

  Readwin 2000 Operation + Read. software

  Show details Show less
- Order code TAF10-

  Field housing TAF10

  Application: E+H Head transmitter. Housing: Alu IP66, 100x100x60mm.

  Show details Show less
