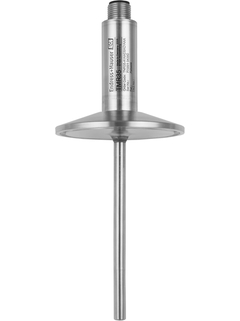

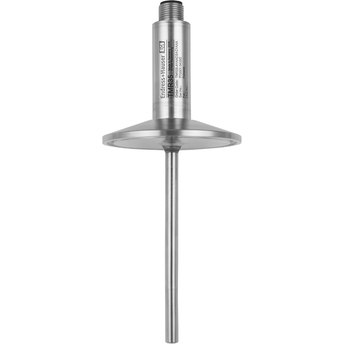

Easytemp TMR35
Hygienic compact thermometer

Compact, fast and precise for the measurement of process temperatures in hygienic applications

  • Easytemp TMR35
Hygienic compact thermometer ©Endress+Hauser
  • Easytemp TMR35
Hygienic compact thermometer ©Endress+Hauser
  • Easytemp TMR35
Hygienic compact thermometer ©Endress+Hauser

With cost efficiency, optimal use of space, reliable operation, easy commissioning and hygienic design the TMR35 fulfills all the requirements in the Food & Beverage as well as in the Life Science industries. A variety of hygienic process connections leads to a high flexibility.

Benefits

  • Small, compact design made entirely of stainless steel

  • Extremely short response times

  • Highly accurate even with short insertion lengths

  • 4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output

  • Configuration and visualization with ReadWin® 2000 PC operating software, which is free of charge

  • Breakdown information in event of sensor break or sensor short-circuit, adjustable as per NAMUR NE43

  • Hygienic compatible design with 3-A marking and EHEDG certification;
    Marine approval

Field of application

The Easytemp TMR35 compact thermometers are used to measure temperatures from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck. The most common installation locations are tanks and pipes. TMR35 with process connections for hygienic applications.

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Contact

Endress+Hauser Instruments International AG/ Asia Pacific Support Center
Unit 3, 1st Floor, CentrePoint Building 106 Nguyen Van Troi Street Phu Nhuan District Ho Chi Minh City Vietnam
Tel.: +84 28 3842 0026
Send email
