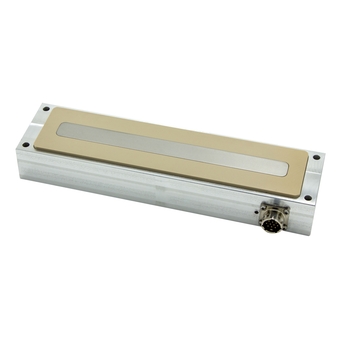

Solitrend MMP60 - Low-density media moisture measurement

Guided radar solution for continuous inline moisture measurement ©Endress+Hauser

For wood processing industry and dedicated applications in other sectors

A large measuring field combined with our guided radar technology guarantees reliable moisture measurement. Suitable and applicable for light bulk solids and low moisture contents

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Deep material permeation (85 mm)

    • High resolution even under low moisture contents

    • Precise in bulk densities down to 0,1 g / cm3

    • Integrated transmitter for simple plant integration

    • Surface and capillary moisture measurement

  • Field of application

    • For moisture measurement in bulk solids with low density from 0.1...1 g / cm³ like sawdust, woodchips, biomass, pellets, granules

Features and specifications

Back

Details

  • Measuring principle

    Guided radar

  • Application

    Moisture measurement in heterogeneous bulk solids with the density from 0.1...1 g/ cm³ like sawdust, woodchips, biomass, pellets or granules

  • Measuring method

    Contact inline measurement with a large rectangular sensor

  • Measurement range

    Recommended moisture range %/ vol.: 0...25 %

  • Material permeation depth

    Up to 85 mm (0.28 ft)

  • Consistency of the sample

    Conductivity range:

    0…max. 1 mS/ cm

  • Temperature sensor

    Yes

  • Process temperature

    0…+70°C

    (+32°F...+158°F)

  • Accuracy

    Up to +/-0.2 % abs.

  • Output / communication

    0...20 mA

    4...20 mA

  • Options

    Remote display

    Sensor cables
