Immersion assembly
Dipfit CPA140

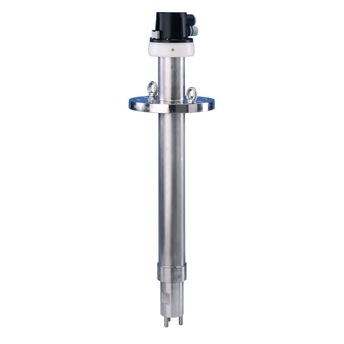

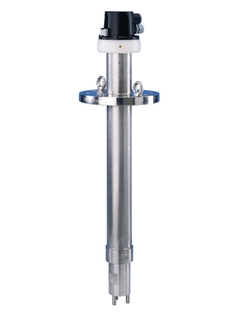

Dipfit CPA140 - Immersion assembly for pH/ORP sensors in aggressive media ©Endress+Hauser

Durable assembly for the chemical, petrochemical, life sciences and power industries

The Dipfit CPA140 immersion assembly is designed for all demanding applications where aggressive media are involved. With its flange connection, Dipfit is installed safely in the process and offers space for three sensors. Its bayonet lock offers you easy sensor installation even in sticky media or media containing solid particles, thus saving time for maintenance and recalibration.

  • Benefits

    • Simple installation and removal of the electrode holder thanks to bayonet lock

    • Flexible connection to the process by means of various flanges (DIN, ANSI, JIS)

    • Less condensation due to a Goretex filter

    • Reduces installation effort by providing 3 mounting...

  • Field of application

    Dipfit CPA140 is intended to be used in closed tanks in:

    • Chemical industry

    • Petrochemical industry

    • Life sciences

    • Power plants and waste incinerating plants

    • Extractive metallurgy and metal processing

    It is suitable for use with pressures of up to 10 bar (...

Features and specifications

Back

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Process

  • Installation

    Immersion assembly

  • Characteristic

    Closed tank

  • Design

    - bayonet technology - 3 electrode installation locations - 120 mm electrodes - integrated spray cleaning CPR31

  • Material

    Holder: PVDF or stainless steel. Sealing: Different materials available

  • Dimension

    Immersion depth: 500 - 2500 mm.
    (19.7 - 78.7 inch), special lengths on request.

  • Process temperature

    max. 150°C
    (302°F)

  • Process pressure

    max. 10 bar
    (145 psi)

  • Connection

    Pressurized flange DN80/PN16, ASME 3" lbs150, JIS 10K80A

  • Additional certifications

    - Material certification 3.1B EN 10204

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Process

  • Installation

    Immersion assembly

  • Characteristic

    Closed tank

  • Design

    - bayonet technology- 3 electrode installation locations- 120mm electrodes- Integrated spray cleaning CPR31

  • Material

    Holder : PVDF or stainless steel.Sealing : different materials available

  • Dimension

    Immersion deepth : 500 - 2500mm. Special length on request.

  • Process temperature

    max. 150°C

  • Process pressure

    max. 10bar

  • Connection

    Pressurized flange DN80/PN16, ASME 3" lbs150, JIS 10K80A

  • Additional certifications

    - Material certification 3.1B EN 10204
