Fuel feed analysis

Fast composition measurement of gas turbine fuel feed

Accurate, non-destructive analysis of gas turbine fuel feed composition

To reduce carbon emissions, many companies are leveraging gas turbine assets by burning hydrogen-rich fuels. Hydrogen blends come with higher risks such as burner coke up and flashback, making reliable composition measurement essential. Traditional measurement techniques typically produce slow results, require intensive maintenance and can consume the sample or require flaring, increasing safety risk and product loss. Our Raman solutions can help.

  • Multi-component measurement in seconds

    for optimized turbine efficiency

    Endress+Hauser’s Raman Rxn5 analyzer performs full composition measurement of gas turbine fuel feeds without sacrificing speed. Fast results allow you to quickly detect fuel composition fluctuations and make critical changes to optimize operational efficiency. Easily adjust combustion conditions to accommodate the properties of the blended fuel. Quickly adjust for flame speed and reduce flashback risks. Minimize the risk of turbine issues such as stage down, blow out, or excess emissions.

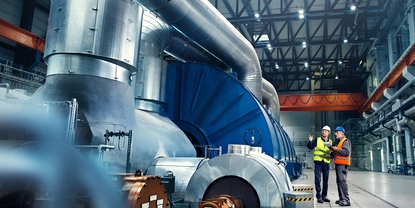

Gas turbine in a power and energy plant ©Cultura Images RF/Strandperle

Gas turbine in a power and energy plant

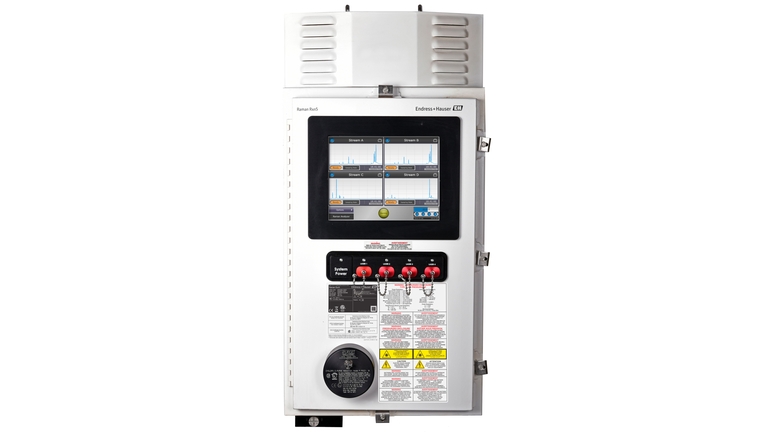

Raman Rxn5 analyzer ©Endress+Hauser

Raman Rxn5 analyzer

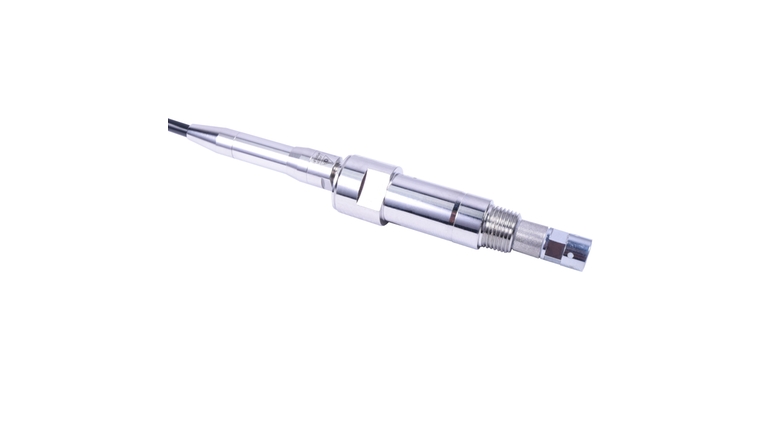

Rxn-30 probe ©Endress+Hauser

Rxn-30 probe

Gas measurement solutions with Raman technology ©Endress+Hauser

Gas measurement solutions with Raman technology

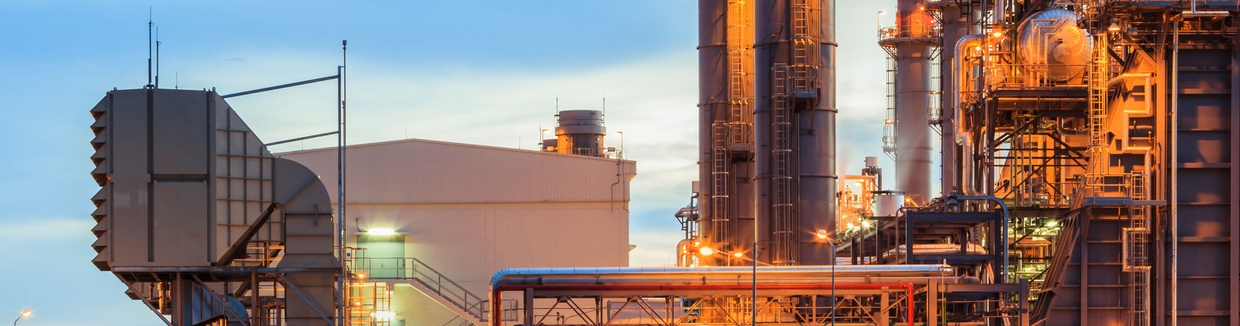

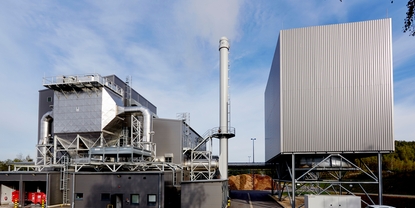

Power and Energy plant ©Bobo1980-Fotolia

Power and Energy plant

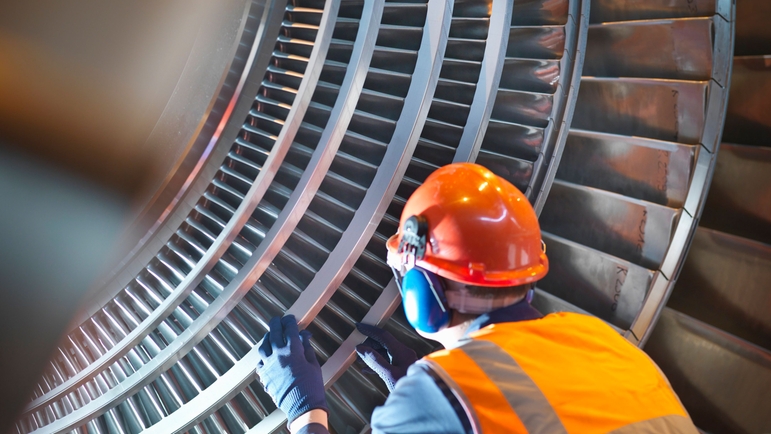

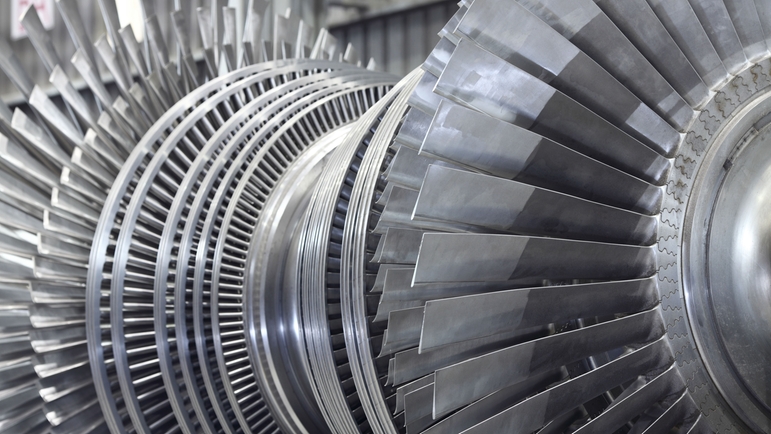

Gas turbine ©iStock

Gas turbine

  • Gas turbine in a power and energy plant
  • Raman Rxn5 analyzer
  • Rxn-30 probe
  • Gas measurement solutions with Raman technology
  • Power and Energy plant
  • Gas turbine

How we can help

Heighten the safety and efficiency of your gas turbine operations using fast and reliable, real-time composition measurement with low maintenance requirements.

  • Quickly detect transient events by receiving results in seconds.

  • Simultaneously measure H2 (0.1% to 100%), N2, CH4, C2H6, CO2, C3H8, O2, Btu, and Wobbe index from one system

  • Calculate the hydrocarbon dewpoint via composition measurement to avoid condensate and burner coke up

  • Conduct minimal sample conditioning with little maintenance, infrequent calibration, no sample transfer, and no carrier gases

  • Avoid potential damage to injection nozzles caused by flame flashback

Câu chuyện thành công

  • Sản phẩm đơn giản

  • Dễ lựa chọn, cài đặt và vận hành

Công nghệ vượt trội

Đơn giản

  • Sản phẩm tiêu chuẩn

  • Đáng tin cậy, mạnh mẽ và ít bảo trì

Công nghệ vượt trội

Đơn giản

  • Sản phẩm cao cấp

  • Chức năng cao và tiện lợi

Công nghệ vượt trội

Đơn giản

  • Sản phẩm chuyên dụng

  • Dành cho các ứng dụng đòi hỏi cao

Công nghệ vượt trội

Đơn giản

Có thể thay đổi

Lựa chọn FLEX Công nghệ vượt trội Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Fundamental

Đáp ứng nhu cầu đo lường cơ bản

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Lean

Xử lý dễ dàng các quy trình cốt lõi

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Extended

Tối ưu hóa quy trình bằng công nghệ tiên tiến

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Xpert

Làm chủ các ứng dụng khó khăn nhất

Công nghệ vượt trội
Đơn giản

Có thể thay đổi

  • Phạm vi chúng tôi cung cấp

    The Raman Rxn5 analyzer equipped with an Rxn-30 probe delivers fast composition measurement of gas turbine fuel feeds. Reduce risk, optimize turbine operational conditions, and meet quality compliance specifications.

  • Phần cứng & Phần mềm

    • Raman Rxn5 analyzer

    • Raman RunTime embedded control software with Modbus TCP/IP or RS485

    • Raman Rxn-30 probe

    • Fiber optic cable up to 150 m

    • Sunshade racks, cabinets and shelters

    • Calibration with reference gas

    • Power and communications distribution

    • HTTPS remote access

  • Dịch vụ

    • Application Consultancy & Onsite Inspection

    • Project Management & Engineering

    • FAT & SAT

    • Project Commissioning

    • System Performance Verification Services

    • Customer Training

Các điểm nổi bật trong phạm vi cung cấp

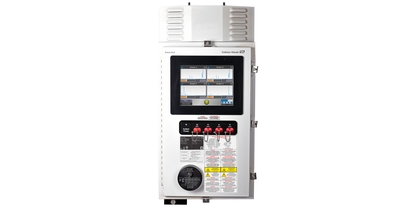

  • Product Picture Raman Rxn5 Process analyzer front view Product Picture Raman Rxn5 Process analyzer front view
    • F
    • L
    • E
    • X

    Raman Rxn5 process analyzer

    Turn-key process Raman analyzer for quantitative chemical composition measurements

    Đang tải giá
    Giá tạm thời không có sẵn
    Price on request
    from CHF ??.-

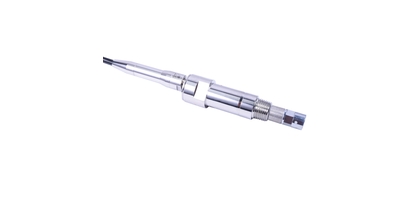

  • Product picture Raman Rxn-30 probe side view aiming right and down Product picture Raman Rxn-30 probe side view aiming right and down
    • F
    • L
    • E
    • X

    Raman Rxn-30 probe

    Providing reliable, quantitative gas-phase measurements in a process environment

    Đang tải giá
    Giá tạm thời không có sẵn
    Price on request
    from CHF ??.-

Tải

    • Tạp chí công ty
    Raman composition analysis of gas turbine fuel feeds

    Raman composition analysis of gas turbine fuel feeds

    • Tạp chí công ty

    Learn why Raman analyzers are an extremely effective composition measurement tool for a wide range of fuels used to power gas turbines today.

    Cỡ tập tin:

    Tên tập tin:

    • Giấy trắng (WP)
    Raman Rxn5 analyzer

    Raman Rxn5 analyzer for laser-based composition analysis

    • Giấy trắng (WP)

    Raman Rxn5 analyzer for laser-based composition analysis

    Cỡ tập tin:

    Tên tập tin:

    • Giấy trắng (WP)
    Raman Rxn-30

    Raman Rxn-30 - Gas-phase probe

    • Giấy trắng (WP)

    Raman Rxn-30 - Gas-phase probe

    Cỡ tập tin:

    Tên tập tin:

Get in touch with our solutions consultants

Get in touch with our solutions consultants

For specific questions, please fill in the form and our solutions consultants will contact you. If you want, you can share more detailed information in the message field.

Please let us know as detailed as possible how we can help you. That way we can get back to you with the best possible answer.

Khám phá các ứng dụng khác cho ngành này

  • flow metering systems for power plants

    Flow metering systems for power plant fuel oil offloading

    Flow metering systems for power plant fuel oil offloading

    Endress+Hauser flow metering systems ensure power plant availability and efficient operations with safe and accurate offloading of fuel oil and other liquids.

  • Learn about Endress+Hauser's high accuracy level measurement in oil storage tanks in power plants.

    Tank gauging systems for the power and energy industry

    Tank gauging systems for the power and energy industry

    Power & Energy companies must strike a careful balance between affordable yet clean energy. To help them, Endress+Hauser and its world-class technology takes liquid measurement to the next level.

  • Water monitoring panels provide all necessary measuring signals for process control and diagnostics

    Process water monitoring systems for Power & Energy

    Process water monitoring systems for Power & Energy

    Enable efficient and cost-effective process water monitoring for power and energy applications with Endress+Hauser’s turnkey solutions.

  • Endress+Hauser sales engineer with the manager of a power plant

    Reliable wastewater effluent monitoring in power plants

    Reliable wastewater effluent monitoring in power plants

    Discover our robust monitoring solutions for gypsiferous, saline and sludge wastewater that help you safely meet your power plant's regulatory discharge limits and reduce your operating costs.

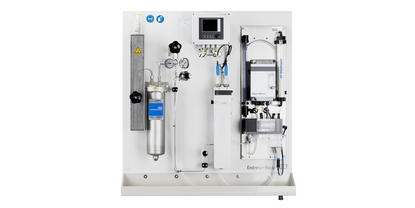

  • Steam and water analysis systems (SWAS) from Endress+Hauser
