Conductivity assembly

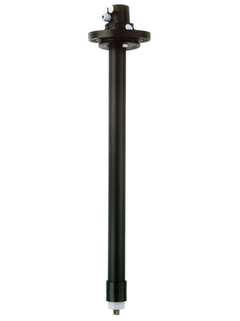

Dipfit CLA111
Immersion assembly for water, wastewater and utilities
The Dipfit CLA111 immersion assembly is designed for application in open basins, channels and tanks. It is suitable for conductive and toroidal sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use. Dipfit is the time and cost-effective solution for standard water and wastewater treatment.
-
Sản phẩm chuyên dụng
- Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Có thể thay đổi
Lựa chọn FLEX | Công nghệ vượt trội | Đơn giản |
---|---|---|
Lựa chọn Fundamental Đáp ứng nhu cầu đo lường cơ bản |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Lean Xử lý dễ dàng các quy trình cốt lõi |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Extended Tối ưu hóa quy trình bằng công nghệ tiên tiến |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Xpert Làm chủ các ứng dụng khó khăn nhất |
Công nghệ vượt trội
|
Đơn giản
Có thể thay đổi |
-
Tổng quan về thông số kỹ thuật
-
Process temperature
Max. 80 °C (176 °F)
-
Process pressure
Max. 4 bar at 20 °C
(Max. 58 psi at 68 °F)
-
Chọn nhanh
Công cụ lựa chọn mã thiết bị
-
Lợi ích
Easy installation and removal of sensor thanks to bayonet lock mounting method
Flexible immersion depth thanks to adjustable flange
Made of environmentally-compatible polypropylene material
Reduced condensation of water due to breathable Goretex® filter
-
Phạm vi ứng dụng
Dipfit CLA111 is an immersion assembly for conductivity sensors in water, wastewater and utility applications, such as:
Inlet of wastewater treatment plants
Surface water monitoring
Well monitoring
Dipfit CLA111 is suitable for:
CLS21/CLS21D...
Tài liệu / Tài liệu hướng dẫn / Phần mềm
-
Technical Information CLA 111
Immersion assembly
Technical Information (TI) -
Dipfit CLA111
Operating Instructions
Immersion and installation assembly for conductivity measurement
Operating Instruction (BA) -
Mounting instruction for pendoulous suspension of assemblies
Special Documentation
Pendulumverse/Pendulum Frame
for pendulous suspension of assemblies
CPA111,CLA111,CPA510, CYA611Special Documentation (SD) -
Leitfähigkeitsmessung in Industrieprozessen
Auswahl- und Engineeringhilfe für verschiedene Industrien und
AnwendungenCompetence Brochure (CP)12/19Tiếng Đức -
Conductivity measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)12/19Tiếng Anh -
Dipfit W CLA111
Industrie-Eintaucharmatur zur Aufnahme der Leitfähigkeitsmesszelle
Tender Text10/09Tiếng Đức -
Dipfit-W CLA111
1 Industry immersion assembly to hold conductivity measuring cell
Tender Text09/05Tiếng Anh -
Measurement of electrical conductivity
(.mp4 format, 70,7MB)
The conductivity of a liquid can be measured using the conductive or
toroidal measuring principles. This video shows what it is about and how
these measuring principles work.Animation01/14fr -
Measurement of electrical conductivity
(.mp4 format, 116 MB)
The conductivity of a liquid can be measured using the conductive or
toroidal measuring principles. This video shows what it is about and how
these measuring principles work.Animation01/14Người Ba Lan
Phụ kiện / Phụ tùng thay thế
-
-
Order code 51500640
Sensor holder G3/4 for CLA111 in PP
For armatur CLA111 eller CPA111 CLA111
-
Order code 71467074
Kit CLA111 sensor holder G3/4" CLS50(D)
-
Order code 50074080
Electrode holder G 1" complete f. CLA111
-
Order code 50015632
-
Order code 50051753
o-ring f.CLS21 ID28.17 W3.53
-
Order code 50009289
-
Order code 71467073
Kit CLA111 Sealing set
-
Order code 71467085
Kit CxA111/140 Small parts
-
Order code 71467086
Kit CxA111 adjustable flange
-
Order code 50070514
adapter f. slidable flange
for CPA 111 and CLA 111 to adjust immersion depth
-
Order code 50066626
half shells=1 pair of weights for CPA111
-
Order code 71467090
Kit CxA111 Star handle screws (2x)
-
Order code 50066593
pressure flange DN100
-
