Levelflex M FMP43

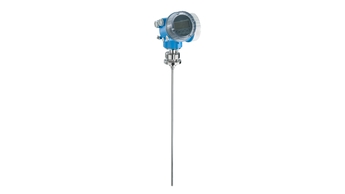

Product picture of: Levelflex M FMP43

Sản phẩm này không có sẵn.

Vui lòng kiểm tra sản phẩm thế hệ mới trong phần sản phẩm trước đây / sản phẩm thay thế hoặc liên hệ với Endress+Hauser/ đại diện Endress+Hauser địa phương.

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Guided radar

  • Characteristic / Application

    Rod probe:

    not affected by spray ball operation

    Probes electro-polished or mechanically polished

  • Specialities

    Pharma Certificate of Compliance




  • Supply / Communication

    2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus)

  • Accuracy

    Rod probe: +/-3 mm (0.13")

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -20 °C ... 150 °C
    (-4 °F ... 302 °F)

  • Process pressure absolute / max. overpressure limit

    Vaccum ... 16 bar

  • Main wetted parts

    316L/1.4435

    PEEK (USP Cl. VI)

    EPDM / KALREZ (USP Cl. VI)

  • Process connection

    Flange: ASME B16.5 1 1/2", 2"

  • Process connection hygienic

    Tri-Clamp ISO2852
    DIN11851
    SMS
    DIN11864
    NEUMO Biocontrol

  • Sensor length

    Rod: 4 m (178")

  • Max. measurement distance

    Rod probe :

    4 m (178") Min. DK > 1.6

  • Communication

    4 ... 20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX

    FM

    CSA

    SIL

    EHEDG, 3A

  • Options

    Calibration Kit


  • Successor

    FMP53

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Nr
Order code
Specification
    • Order code 52006628

      Instrument plug M20-M12 "PA" (WDM)150

      4-pin metall plug for installation in the device, providing connection to a T-Box (WDM) or cable socket (WDM). Cable length: 150mm. Not suitable for PROMAG and PROMAG.

  • 12
    • Nr 12 Order code 535720-9020

      Set of screws housing F12/T12/F23

      Consists of: 1x stop screw M5x10. 1x retaining screw M8x10. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

    • Order code 543199-0001

      Protective cover for housing T12/F12, SS

      Usage: Micropilot M, Micropilot S, Prosonic M, Levelflex M. Material: 316Ti.

  • 20
    • Nr 20 Order code 517391-0011

      Cover F12/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

    • Nr 20 Order code 52005936

      Cover F12/T12 Alu, window, gasket

      Material: aluminium. Usage: VU331, housing F12/T12, Micropilot M/S, Prosonic M, Levelflex M.

    • Nr 20 Order code 52018670

      Cover F23 316L, sight glass, gasket

      Material: 316L. Usage: VU331, Levelflex M, Micropilot M.

    • Nr 20 Order code 52018671

      Cover F23 316L, gasket

      Material: 316L. Usage: Levelflex M, Micropilot M.

  • 25
    • Nr 25 Order code 518710-0020

      Cover T3/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  • 11
    • Nr 11 Order code 52006026

      Cover terminal compartment F12/F23

      Hood terminal compartment. Usage: Micropilot M, Prosonic M, Levelflex M.

    • Nr 11 Order code 52019062

      Cover terminal compartment F12/F23,FHX40

      Hood terminal compartment. Usage: separate display, Micropilot M, Prosonic M, Levelflex M.

  • 35
    • Nr 35 Order code 52006197

      Terminal module 4-pole, HART, 2-wire

      Cable connection. Usage: housing F12/F23, Micropilot M, Levelflex M, Prosonic M.

    • Nr 35 Order code 52012156

      Terminal module 4-pole, PA, FF

      PROFIBUS PA, FOUNDATION Fieldbus. Usage: Micropilot II/M, Prosonic M, Levelflex M.

    • Nr 35 Order code 52013302

      Terminal mod. Ex d, 4-pol., 2wr,HART,T12

      Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52013303

      Terminal mod. Ex d, 2-pol.,2wr,PA/FF,T12

      2-wire, PROFIBUS PA/FOUNDATION Fieldbus. Ex d limiter. Usage: housing T12, Levelflex M, Micropilot M, Prosonic M.

    • Nr 35 Order code 52018949

      Terminal mod. 4-pol.,EEx ia,HART,T12,OVP

      4-pole, 2-wire. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52018950

      Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

      2-pole, 2-wire. PROFIBUS PA, FOUNDATION Fieldbus. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

  • 11
  • 35
  • 40
    • Order code 52013874

      Mounting bracket FHX40 1" / 2" pipe

      Usage: FHX40.

    • Order code FHX40-

      Display FHX40

      Remote display + local operation. 4-line LC-display. :: Menu driven plain text operation. :: Easy setup. :: User language selectable. :: Envelope curve display on site. Usage: FMG60, FMU40/FMU41/FMU42/FMU43/FMU44.

  • 52
    • Nr 52 Order code 71043425

      Aseptic coupling DIN11864-1 A DN25 tube

      DIN11864-A, 316L. Slotted nut DIN11851 F25. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043426

      Dairy fitting DIN11851 DN40 PN40

      Material: 316L. Slotted nut DIN11851 F40. Usage: FMP53.

    • Nr 52 Order code 71043427

      Dairy fitting DIN11851 DN50 PN40

      Material: 316L. Slotted nut DIN11851 F50. Usage: FMP53.

    • Nr 52 Order code 71043428

      Adapter NEUMO BioControl DN25 PN16

      Flange adapter. Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043429

      Tri-Clamp ISO2852 DN25-38 1..1-1/2"

      Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043430

      Tri-Clamp ISO2852 DN40-51 2"

      Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043438

      Tri-Clamp ISO2852 DN70-76.1 3"

      Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043439

      Adapter SMS 2" PN25, 316L

      Slotted nut. Usage: FMP53.

    • Nr 52 Order code 71043440

      Adapter SMS 1-1/2" PN25, 316L

      Slotted nut. Usage: FMP53.

    • Nr 52 Order code 71043443

      Aseptic coupl.DIN11864-1 A DN25 tube,3.1

      DIN111864-A, 316L. Slotted nut DIN11851 F25. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043444

      Dairy fitting DIN11851 DN40 PN40, 3.1

      Material: 316L. Slotted nut DIN11851 F40. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043445

      Dairy fitting DIN11851 DN50 PN40, 3.1

      Material: 316L. Slotted nut DIN11851 F50. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043446

      Adapter NEUMO BioControl DN25 PN16, 3.1

      Flange adapter. Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043447

      Tri-Clamp ISO2852 DN25-38 1..1-1/2", 3.1

      Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043448

      Tri-Clamp ISO2852 DN40-51 2", 3.1

      Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043449

      Tri-Clamp ISO2852 DN70-76.1 3", 3.1

      Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043450

      Adapter SMS 2" PN25, 316L, 3.1

      Slotted nut. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043451

      Adapter SMS 1-1/2" PN25, 316L, 3.1

      Slotted nut. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Order code 71041381

      Weld-in adapter M24 D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      Weld-in adapter M24 D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

  • 57
    • Nr 57 Order code 71043452

      Sealing kit FMP43,FMP53 Kalrez, 2 pieces

      Consists of: O-ring 9.25x1.78 FFKM 70 Kalrez FDA. Rod/process connection. O-ring 15.54x2.62 FFKM 70 Kalrez FDA. Sensor body/process connection. Usage: FMP43, FMP53.

    • Nr 57 Order code 71043453

      Sealing kit FMP43, FMP53 EPDM, 2 pieces

      Consists of: O-ring 9.25x1.78 EPDM FDA. Rod/process connection. O-ring 15.54x2.62 EPDM FDA. Sensor body/process connection. Usage: FMP43, FMP53.
