Tổng quan về thông số kỹ thuật
-
Max. measurement error
Volume flow: ±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)
-
Measuring range
4 dm3/min to 9600 m3/h (0.5 gal/min to 44000 gal/min)
-
Medium temperature range
–40 to +130°C (–40 to +266°F)
-
Max. process pressure
PN40
Cl. 300
JIS 20K
AS 2129 Table E -
Wetted materials
Liner: PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
Phạm vi ứng dụng

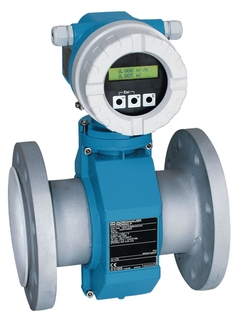

Promag P is the preferred sensor for applications with highest requirements in a multitude of industries. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10P is dedicated for chemical and process applications with corrosive liquids and high medium temperatures. It will be the preferred solution for customers aiming for minimized cost of ownership. Promag 10P is available as compact or remote version.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Device properties
Nominal diameter: max. DN 600 (24")
All common process connections
Liner made of PTFE
2-line display with push buttons
Device as compact or remote version
HART
Lợi ích
Versatile applications – wide variety of wetted materials
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Cost-effective – designed for easy applications and direct integration
Safe operation – display provides easily readable process information
Fully industry compliant – IEC/EN/NAMUR
