Conductive
Point level detection

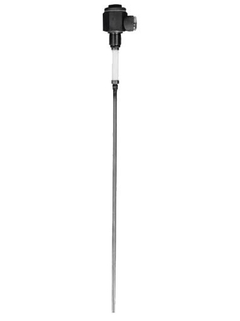

One rod probe 11961Z

Probe 11961Z ©Endress+Hauser

High resistance point level detection of conductive liquids steam boilers and aggressive media

The 11961Z is a highly resistant probe for applications with aggressive medium thanks to corrosion-resistant materials for rod and insulation. It can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water.

Chọn nhanh

Chọn theo đề xuất của chúng tôi
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể
  • Lợi ích

    • Safe and reliable measurement even in aggressive medium thanks to corrosion-resistant materials for rod and insulation

    • Can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water

    • Can be deployed particularly with high...

  • Phạm vi ứng dụng

    For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0, or pump protection in pipes and two-point control.

    • Process connection: Thread

    • ...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Conductive

  • Characteristic / Application

    One rod probe for high and extremely low temperature and high pressure. Corrosion resistant

  • Supply / Communication

    Relay
    PFM

  • Ambient temperature

    -200 °C ... 250 °C
    (-328 °F ... 482 °F)

  • Process temperature

    -200 °C ... 250 °C
    (-328 °F ... 482 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 160 bar
    (Vacuum ... 2320 psi)

  • Min. conductivity of medium

    20 µS/cm

  • Main wetted parts

    Ceramic, 316TI

  • Process connection

    G 1/2

  • Sensor length

    0.1m ... 2m
    (3.9" ... 79")

  • Communication

    Relay

  • Safety approvals

    Overfill prevention WHG

  • Components

    Transmitter: FTW325

  • Application limits

    Observe min. medium conductivity
