Gammapilot FMG60

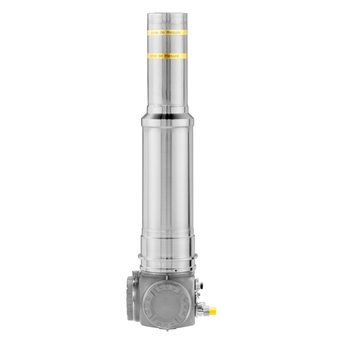

Gammapilot FMG60 stainless steel housing ©Endress+Hauser

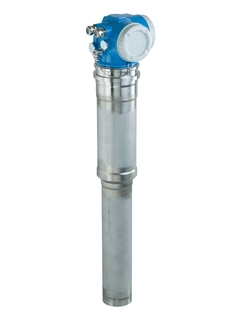

Gammapilot FMG60 aluminum housing ©Endress+Hauser

Radiometric measuring principle

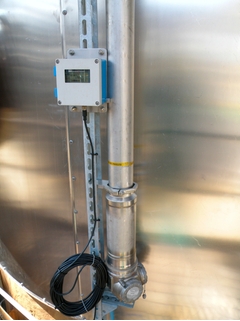

Gammapilot FMG60 application ©Endress+Hauser

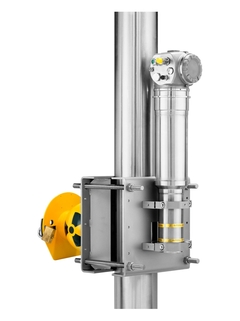

Gammapilot FMG60 application ©Endress+Hauser

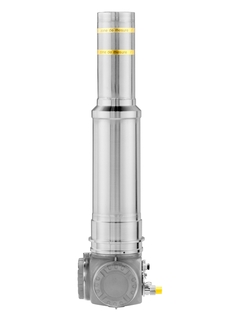

  • Gammapilot FMG60 stainless steel housing
  • Gammapilot FMG60 aluminum housing
  • Gammapilot FMG60 application
  • Gammapilot FMG60 application

Compact transmitter for point level detection, continuous level, interface and density measurement

The Gammapilot FMG60 compact transmitter is made for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. The variable transmitter concept with NaJ crystal or plastic scintillators in different lengths guarantees optimum adaptation to individual applications. The transmitter contains a scintillator, photomultiplier and evaluation unit.

Chọn nhanh

Chọn theo đề xuất của chúng tôi
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FMG60
Hiện chi tiết Ẩn chi tiết
Hiện chi tiết
Quay lại Mục chọn nhanh
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Các add-on tùy chọn
Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

Các thành phần bổ sung

  • Lợi ích

    • Multifunctional compact transmitter: One instrument for all measuring tasks which results in cost savings in spare parts and maintenance

    • SIL2/3 approval in accordance with IEC 61508 for point level detection

    • Highest availability, reliability and safety,...

  • Phạm vi ứng dụng

    For liquids, solids, suspensions or sludges etc. Extreme measuring conditions, e.g. corrosiveness, toxicity, abrasion for all kinds of process vessels, e.g. reactors, autoclaves, separators, acid tanks, mixers, cyclones, cupola furnaces. Also for...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter

  • Specialities

    Cascading for high silos

  • Supply / Communication

    AC: 90-253V
    DC: 18-36V

  • Accuracy

    +/-1%

  • Ambient temperature

    -40...60°C
    (-40...140°F),
    With cooling jacket:
    0...120°C
    (32...248°F

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Process connection hygienic

    Non-contact

  • Sensor length

    PVT scintillator
    400mm...2000mm
    >2000mm cascade mode

  • Max. measurement distance

    Unlimited measuring range
    Cascade

  • Communication

    4...20 mA HART
    FOUNDATION Fieldbus
    PROFIBUS PA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC

  • Safety approvals

    SIL1

  • Components

    Isotope: FSG60, FSG61
    Source container: FQG60, FQG61, FQG62, FQG63, FQG66
    Display: FHX40
    Mounting accessories: FHG60

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter

    Non-contact measuring technique, for extreme process conditions (temperature, pressure)

  • Interface measurement

    Interfaces liquid / liquid also with emulsion layers and interfaces liquid / solid

  • Specialities

    Interface, density and mass flow measurement

  • Supply / Communication

    AC: 90-253V
    DC: 18-36V

  • Accuracy

    +/-1%

  • Ambient temperature

    -40...60°C
    (-40...140°F),
    With cooling jacket:
    0...120°C
    (32...248°F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Process connection hygienic

    Non-contact

  • Sensor length

    PVT scintillator
    400mm...2000mm
    >2000mm cascade mode

  • Max. measurement distance

    Unlimited measuring range
    Cascade

  • Communication

    4...20 mA HART
    FOUNDATION Fieldbus
    PROFIBUS PA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC

  • Safety approvals

    Overfill prevention WHG

    SIL1

  • Components

    Isotope: FSG60, FSG61
    Source container: FQG60, FQG61, FQG62, FQG63, FQG66
    Display: FHX40
    Mounting accessories: FHG60

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter

  • Specialities

    Optional separate housing

  • Supply / Communication

    AC: 90-253V
    DC: 18-36V

  • Ambient temperature

    -40...60°C
    (-40...140°F),
    With cooling jacket:
    0...120°C
    (32...248°F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Min. density of medium

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Process connection hygienic

    Non-contact

  • Sensor length

    PVT scintillator 200 mm (8")
    PVT scintillator 400 mm (16")
    NaJ scintillator 50x50mm (2")

  • Communication

    4...20 mA HART
    FOUNDATION Fieldbus
    PROFIBUS PA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC

  • Safety approvals

    Overfill prevention WHG

    SIL1/ SIL2

  • Components

    Isotope: FSG60, FSG61
    Source container: FQG60, FQG61, FQG62, FQG63, FQG66

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter

  • Specialities

    Interface measurement

  • Supply / Communication

    DC: 90-253V
    AC: 18-36V

  • Ambient temperature

    -40...60°C,
    (-40...140°F),
    With cooling jacket:
    0...120°C
    (32...248°F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Min. density of medium

    Any

  • Min. conductivity of medium

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Process connection hygienic

    Non-contact

  • Sensor length

    PVT scintillator 200 mm
    PVT scintillator 400 mm
    NaI scintillator 50x50mm

  • Communication

    4-20mA HART
    FOUNDATION Fieldbus
    PROFIBUS PA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC

  • Safety approvals

    Overfill prevention WHG

    SIL1/ SIL2

  • Components

    Isotope: FSG60, FSG61
    Source container: FQG60, FQG61, FQG62, FQG63, FQG66

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Compact transmitter
    with PT100 input for
    temperature compensation

  • Supply / Communication

    AC: 90-253V
    DC: 18-36V

  • Ambient temperature

    -40°C...50°C / 60°C

    With cooling jacket: 0°C...120°C

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Hygienic

    Non-contact

  • Sensor length

    NaJ scintillator 50x50mm
    PVT scintillator 200...400mm

  • Output

    4-20mA HART
    FOUNDATION Fieldbus
    PROFIBUS PA

  • Certificates / Approvals

    ATEX, FM, CSA, IECEx, TIIS, NEPSI, GOST

  • Components

    Isotope: FSG60
    Source container: FQG60, FQG61, FQG62, FQG63, QG2000

  • Other approvals and certificates

    SIL1

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Nr
Order code
Specification

  • Sản phẩm cũ

Accessories, with links to our online product configurator

Quay lại

Source Container

Source Container FQG60 - Radiometric measurement

Radiometric
Level/density measurement
Source Container FQG60

FQG60 is a small-size, lightweight radiation source container with radiation source insert with manual switching on/off for radiometric measurement.

Source Container FQG61 - Radiometric measurement

Radiometric
Level/density measurement
Source Container FQG61

FQG61 is a lightweight radiation source container with source holder for manual or pneumatic switching on/off for radiometric measurement.

Source Container FQG62 - Radiometric measurement

Radiometric
Level/density measurement
Source Container FQG62

FQG62 is a lightweight radiation source container with source holder for manual or pneumatic switching on/off for radiometric measurement.

Source Container FQG63 - Radiometric measurement

Radiometric
Interface measurement
Source Container FQG63

FQG63 is a lightweight radiation immersion type source container to place the source inside the process tank for radiometric measurement.

Source Container FQG66 - Radiometric measurement

Radiometric
Level and density
Source Container FQG66

Radiation source container FQG66 with sliding source support rod for manual or pneumatic switching on/off.
Hiển thị thêm

Modulator / Source

Gamma Modulator FHG65 - Radiometric measurement

Radiometric measurement
Gamma Modulator FHG65

Gamma Modulator FHG65 is made for the effective suppression of background radiation and extraneous radiation at the Gammapilot FMG60.

Gamma Source FSG60 - Radiometric measurement

Radiometric level and
density measurement
Gamma Source FSG60

Gamma radiation source FSG60 (137Cs) for radiometric point level detection, continuous level, density and interface measurement.
