Tank gauging

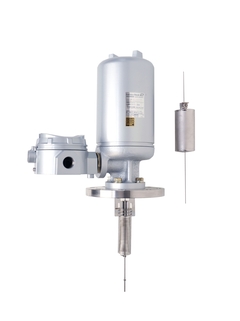

Magnet Level Switch MPC2
Displacement technology level switch
The MPC2 level switch is a displacement type instrument for installation on a tank. It provides alarm contact output of max. 4 points while activating micro switches with magnet. The switching mechanism is designed to operate these contacts independent of one another. The instruments could therefore emit high and low level alarm alarms.
-
Sản phẩm chuyên dụng
- Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Có thể thay đổi
Lựa chọn FLEX | Công nghệ vượt trội | Đơn giản |
---|---|---|
Lựa chọn Fundamental Đáp ứng nhu cầu đo lường cơ bản |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Lean Xử lý dễ dàng các quy trình cốt lõi |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Extended Tối ưu hóa quy trình bằng công nghệ tiên tiến |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Xpert Làm chủ các ứng dụng khó khăn nhất |
Công nghệ vượt trội
|
Đơn giản
Có thể thay đổi |
Chọn nhanh
Công cụ lựa chọn mã thiết bị
-
Lợi ích
Spring type micro switch holders assuring proper operations unaffected by vibration of vessels
Multi-point control (4 points maximum) possible with a single product.
Resistance to high temperature and high pressure
Simple construction featuring stable...
-
Phạm vi ứng dụng
Ambient temperature: -10 to +60°C (14 to +140°F)
Accuracy: ±3mm (± 0.12")
Tài liệu / Tài liệu hướng dẫn / Phần mềm
-
Level Switch MPC2000 MPC2 - Technical Information
MPC series level controllers are displacement type instruments for tank
installation. MPC provides 1to 4 control output contacts while
activating
microswitches with a magnet. The switching mechanism is designed to
operate these contacts independent of one another and performs pump
control by utilizing the independent operation of the contacts.Technical Information (TI) -
MPC2 - Techinical Information
Tank Gauging - Level Switch MPC2000 MPC2
Technical Information (TI) -
MPC2 - Operating Instructions
Tank Gauging - Level switch MPC2000 MPC2
Operating Instruction (BA) -
Level Switch MPC2000 MPC2 - Operating Instruction
MPC series level switches are displacement type instruments for liquid
tanks. MPC displays an alarm for
water or oil tank levels and to control pumps and valves by utilizing
independent operation of the contacts.Operating Instruction (BA) -
