Digital ORP sensor
Orbipore CPS92D

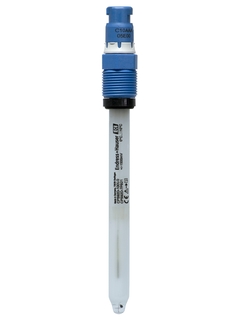

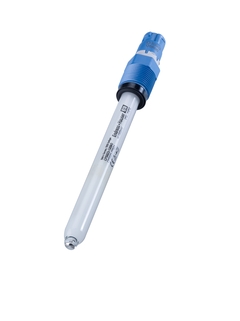

Orbipore CPS92D - Digital glass ORP electrode for heavily soiled media

Orbipore CPS92D - Digital glass ORP electrode for chemical, paper and paint industries

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens glass sensor for heavily polluted media in chemical processes, paper or paint production

Orbipore CPS92D is the digital specialist for fibrous media or media with a high content of suspended solids such as dispersions, precipitation reactions or emulsions. The open aperture prevents fouling and guarantees you the most reliable measurement under extreme process conditions. Thanks to Memosens digital technology, CPS92D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Lựa chọn nhanh

Chọn trong số các tùy chọn do chúng tôi đề xuất

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Các add-on tùy chọn

Please use the individual configurator to continue.

hoặc

Cấu hình riêng

Tiếp tục lựa chọn từ tất cả các tùy chọn có thể

Cấu hình

Các thành phần bổ sung

Buffer solution CPY3

Technical
Thông tin bổ sung
So sánh
1-channel transmitter
Liquiline M CM42

Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food
Thông tin bổ sung
So sánh
1-/2-channel transmitter
Liquiline CM442

Expandable multiparameter field device for all industries
Thông tin bổ sung
So sánh
1-/2-channel transmitter
Liquiline CM442R

Compact multiparameter DIN-rail and cabinet device for all industries
Thông tin bổ sung
So sánh
1-channel transmitter
Liquiline Compact CM82

Multiparameter field device for hazardous and non-hazardous applications in all industries
Thông tin bổ sung
So sánh

Lợi ích
Open aperture for application in heavily soiled media
Low maintenance and long service life due to stabilized gel filling
Not affected by fluctuations in pressure and temperature
Maximum process safety through non-contact inductive signal transmission
...

Hiển thị thêm
Open aperture for application in heavily soiled media
Low maintenance and long service life due to stabilized gel filling
Not affected by fluctuations in pressure and temperature
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

Hiển thị bớt

Phạm vi ứng dụng
Chemical processes
Pulp and paper industry
Contaminated media and suspended solids:
- Dispersions
- Precipitation
- Emulsions
With ATEX, FM, and CSA approval for application in hazardous areas.

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Sensor ORP / Redox
Application

Processapplications, heavy soiled media, emulsions, suspensions, precipitations
Installation

digital electrode with Memosenstechnology
Characteristic

Very robust, easy cleanable.
Measurement range

-1500 mV - +1500 mV
Measuring principle

- Gel compact electrode with open aperture - measuring part as platinum cap.
Design

All shaft lengths - advanced gel technology
Material

Glass electrode and platinum cap.
Dimension

Diameter: 12 mm (0.46 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16,57 inch)
Process temperature

max. 110°C (230°F)
Process pressure

max. 13bar (189psi)
Temperature sensor

NTC30k
Ex certification

ATEX II IG EEXia IIC T3/T4/T6
FM/CSA Class1 Div.2 in Kombination mit CM42 und CPM153 Messumformer.
Connection

Memosens
Ingres protection

IP68

Hiển thị thêm
Hiển thị bớt

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Hình thức tải về

Lọc

Orbipore CPS92D and CPS92 Technical Information
ORP electrodes, digital with Memosens technology, and analog

Technical Information (TI)
pH-/Redoxsensoren und Referenzhalbzellen pH/ORP sensors and reference half cells Operating Instructions
Sensors with Memosens technology and analog sensors

Operating Instruction (BA)
Memosens pH/ORP Safety instructions for electrical apparatus in explosion-hazardous areas Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous
areas

Ex Safety Instructions (XA)
Memosens pH/ORP Sicherheitshinweise für elektrische Betriebsmittel im explosionsgefährdeten Bereich Safety instructions for electrical apparatus for explosion-hazardous areas Conseils de sécurité pour matériels électriques destinés aux zones explosibles Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous
areas

Ex Safety Instructions (XA)
Memosens pH/ORP Sicherheitshinweise für elektrische Betriebsmittel im explosionsgefährdeten Bereich Safety instructions for electrical apparatus for explosion-hazardous areas Conseils de sécurité pour matériels électriques destinés aux zones explosibles Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous
areas

Ex Safety Instructions (XA)
perspektiven Energie 2014
perspektiven Energie 2014

Customer Magazine (CM)

08/14

Tiếng Đức
New ORP electrodes for heavily soiled media
The robust Orbipore electrodes stand out with short response time and
long service life. The newly developed electrodes Orbipore CPS92 and
CPS92D fulfill the special requirements of the pulp & paper and
mining industries. Typical application areas are solids, emulsions,
dispersions, precipitations.
