Digital conductivity sensor
Condumax CLS15D

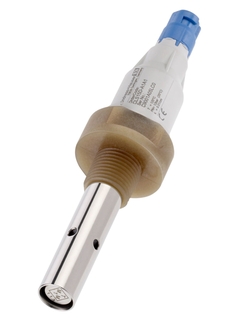

Digital conductivity sensor
Condumax CLS15D ©Endress+Hauser

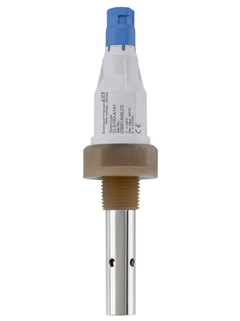

Digital conductivity sensor
Condumax CLS15D ©Endress+Hauser

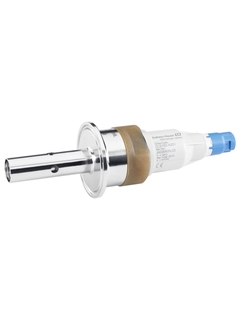

Digital conductivity sensor
Condumax CLS15D ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens conductive conductivity sensor for standard applications in pure and ultrapure water

Condumax CLS15D is the digital solution for conductivity measurement in the low measuring ranges. It performs reliably and accurately in a wide range of applications - even in hazardous areas. Designed for low maintenance and a long operating life, the sensor offers best value for money. With Memosens digital technology, CLS15D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration, and facilitates predictive maintenance.

  • Sản phẩm đơn giản

  • Dễ lựa chọn, cài đặt và vận hành

Công nghệ vượt trội

Đơn giản

  • Sản phẩm tiêu chuẩn

  • Đáng tin cậy, mạnh mẽ và ít bảo trì

Công nghệ vượt trội

Đơn giản

  • Sản phẩm cao cấp

  • Chức năng cao và tiện lợi

Công nghệ vượt trội

Đơn giản

  • Sản phẩm chuyên dụng

  • Dành cho các ứng dụng đòi hỏi cao

Công nghệ vượt trội

Đơn giản

Có thể thay đổi

Lựa chọn FLEX Công nghệ vượt trội Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Fundamental

Đáp ứng nhu cầu đo lường cơ bản

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Lean

Xử lý dễ dàng các quy trình cốt lõi

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Extended

Tối ưu hóa quy trình bằng công nghệ tiên tiến

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Xpert

Làm chủ các ứng dụng khó khăn nhất

Công nghệ vượt trội
Đơn giản

Có thể thay đổi

  • Tổng quan về thông số kỹ thuật

    • Measurement range

      k=0,01: 0.04 to 20 µS/cm
      k=0,1: 0.10 to 200 µS/cm

    • Process temperature

      Threaded with fixed cable:
      -20 to 100 °C (-4 to 212 °F)
      Threaded with plug-in head:
      -20 to 120 °C (-4 to 248 °F)
      Sterilization: max. 140 °C (284 °F) for 30 minutes

    • Process pressure

      13 bar at 20 °C (188 psi at 68 °F)
      1 bar at 120 °C (14 psi at 248 °F)

please wait Loading alternative products

Chọn nhanh

Chọn theo đề xuất của chúng tôi
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể
  • Lợi ích

    • Reliable and accurate measuring values at low conductivities

    • Easy to clean thanks to polished measuring surfaces

    • Sterilizable and autoclavable

    • Quality certificate stating the individual cell constant

    • Logging of sensor-specific data for easy traceability and...

  • Phạm vi ứng dụng

    Condumax CLS15D measures conductivity in pure and ultrapure water applications for the monitoring and control of:

    • Ion exchangers

    • Reverse osmosis

    • Cooling water

    • Distillation

    • Chip cleaning

    The digital sensor can be used in power plants for:

    • Degassed...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Conductive

  • Application

    Measurement in pure and ultrapure water range, monitoring of ion exchangers, reverse osmosis, distillation, chip cleaning

  • Characteristic

    Analog or digital 2-electrode conductivity sensors

  • Measurement range

    k=0,01: 0.04 to 20 µS/cm
    k=0,1: 0.10 to 200 µS/cm

  • Measuring principle

    Conductive conductivity cell with polished stainless steel electrodes

  • Design

    2-electrode conductivity cell with coaxially arranged electrodes, electropolished

  • Material

    Electrode: stainless steel 1.4435
    Electrode shaft: PES

  • Dimension

    Electrode diameter: 16 mm (0.63 inch)
    Electrode length: appr. 55 mm (2.17 inch)

  • Process temperature

    Threaded with fixed cable:
    -20 to 100 °C (-4 to 212 °F)
    Threaded with plug-in head:
    -20 to 120 °C (-4 to 248 °F)
    Sterilization: max. 140 °C (284 °F) for 30 minutes

  • Process pressure

    13 bar at 20 °C (188 psi at 68 °F)
    1 bar at 120 °C (14 psi at 248 °F)

  • Temperature sensor

    NTC 30K

  • Ex certification

    ATEX, NEPSI, FM, CSA

  • Connection

    Process: 1/2" and 3/4" NPT, Clamp 1 1/2"
    Cable: Memosens connector

  • Ingres protection

    IP68

  • Additional certifications

    Calibration certification of the cell constante, material certification 3.1

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Phụ kiện / Phụ tùng thay thế

Nr
Order code
Specification
    • Order code 50004381

      PVDF Adapter G 1/2" - G 1"

      for mounting of sensors with thread NPT 1/2".

    • Order code 50004738

      AM 32 equalizing sleeve DN32, PVC

      for conductivity cell installation into T-90-piece or cross piece DN 32

    • Order code 50004739

      AM 40 equalizing sleeve DN40, PVC

      For conductivity cell installation into T-90-piece or cross piece DN40

    • Order code 50004740

      AM 50 equalizing sleeve DN50, PVC

      For conductivity cell installation into T-90-piece or cross piece DN50

    • Order code 50066536

      PVC-Threaded coupling G 1/2"

      for cementing in cross / T-pieces DN 20

    • Order code 50081902

      Calibration solution CLY11-A, 74,0 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081903

      Calibration solution CLY11-B,149,6 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO.

    • Order code 50081904

      Calibration solution CLY11-C,1,406mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081905

      Calibration solution CLY11-D,12,64 mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM to NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081906

      Calibration solution CLY11-E,107,00mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
