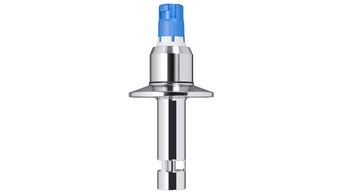

Digital conductivity sensor
Condumax CLS16D

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens conductive conductivity sensor for hygienic applications in pure and ultrapure water

Condumax CLS16D is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product quality. Numerous certificates and various hygienic process connections ensure the perfect fit for your process. With Memosens technology, CLS16D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration, and facilitates predictive maintenance.

Thêm vào giỏ hàng
Đặt cấu hình
Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Các thành phần bổ sung

1-channel transmitter
Liquiline M CM42

Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food
Thông tin bổ sung
So sánh
1-/2-channel transmitter
Liquiline CM442

Expandable multiparameter field device for all industries
Thông tin bổ sung
So sánh
1-channel transmitter
Liquiline CM14

Compact panel device for the food, power, water and wastewater industries
Thông tin bổ sung
So sánh
1-/2-channel transmitter
Liquiline CM442R

Compact multiparameter DIN-rail and cabinet device for all industries
Thông tin bổ sung
So sánh
1-channel transmitter
Liquiline Compact CM82

Multiparameter field device for hazardous and non-hazardous applications in all industries
Thông tin bổ sung
So sánh

Lợi ích
Highest precision and measuring accuracy
Hygienic design certified by EHEDG
Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials
Sterilizable and autoclavable
Quality certificate stating the individual cell constant
Logging of sensor-specific data for easy traceability...

Hiển thị thêm
Highest precision and measuring accuracy
Hygienic design certified by EHEDG
Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials
Sterilizable and autoclavable
Quality certificate stating the individual cell constant
Logging of sensor-specific data for easy traceability and predictive maintenance
Convenient maintenance strategy with Memobase Plus for easy calibration and sensor management

Hiển thị bớt

Phạm vi ứng dụng
Condumax CLS16D measures conductivity in pure and ultrapure water applications for the monitoring and control of:

Ion exchangers

Reverse osmosis

Distillation

Electro-deionizing

Water for injection (WFI)

With its international explosion protection...

Hiển thị thêm
Condumax CLS16D measures conductivity in pure and ultrapure water applications for the monitoring and control of:

Ion exchangers

Reverse osmosis

Distillation

Electro-deionizing

Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Hiển thị bớt

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Conductive
Application

Pure and ultrapure water, pharmaceutical industry
Characteristic

Hygienic 2-electrode conductivity sensor
Measurement range

k=0,1: 0,04 to 500 µS/cm
Measuring principle

Conductivity cell
Design

Hygienic 2-electrode conductivity sensor with coaxially arranged electrodes, electropolished stainless steel and FDA sealing material; sterilizable
Material

Isolation: PEEK
Electrode: polished stainless steel 1.4435
Sealing: Isolast (FFKM) FDA conform
Dimension

Electrode diameter: 17 mm (0.66 inch)
Electrode length: 54 mm (2.13 inch)
Process temperature

-5 to 120 °C (23 to 248 °F)
For Sterilizsation: max. 150 °C at 5 bar
(Max. 302 °F at 73 psi)
Process pressure

13 bar at 20 °C (188 psi at 68 °F)
9 bar at 120 °C (130 psi at 248 °F)
Temperature sensor

NTC 30K
Connection

Process connection: Varivent, Neumo, Clamp
Cable: Memosens connector
Ingres protection

IP68
Additional certifications

Material certification 3.1
EHEDG, pharma certificate of compliance
FDA

Hiển thị thêm
Hiển thị bớt
