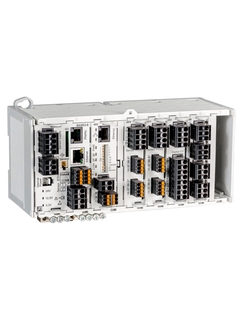

8-channel transmitter
Liquiline CM448R

Liquiline CM448R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen and more. — Liquiline CM448R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

An optional display enables configuration, maintenance and operation of the measuring point on-site.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Flexible multiparameter DIN-rail and cabinet device for all industries

Liquiline CM448R is a digital multiparameter transmitter for process monitoring and control in all applications - even where mounting space is limited. It saves you time and money through fast and simple system integration, installation, and operation. The 8-channel device can be easily adapted to your process, accommodating 1 to 8 sensors as desired. Liquiline CM448R provides you with all the benefits of a best-in-class transmitter platform from clever simplicity to maximum process safety.

Thêm vào giỏ hàng
Đặt cấu hình
Chọn & Kích thước
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Các thành phần bổ sung

RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.
Thông tin bổ sung
So sánh
RTA421
Limit switch

Contactor with loop power supply for monitoring current or voltage signals
Thông tin bổ sung
So sánh
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Thông tin bổ sung
So sánh

Lợi ích
Saves space, saves money:
Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.
High-speed installation:
No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.
Simple and safe commissioning:
Saving...

Hiển thị thêm
Saves space, saves money:
Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.
High-speed installation:
No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.
Simple and safe commissioning:
Saving configuration on SD card enables fast set-up on duplicate installations.
Easy to operate and service:
Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.
Process control from a distance:
Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.
Higher availability, lower costs:
Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

Hiển thị bớt

Phạm vi ứng dụng
The Liquiline CM448R multiparameter transmitter is suitable for all applications in non-hazardous areas, for example in these industries and their utilities:

Food & Beverages

Life Sciences

Power & Energy

Water & Wastewater

Chemicals

Liquiline...

Hiển thị thêm
The Liquiline CM448R multiparameter transmitter is suitable for all applications in non-hazardous areas, for example in these industries and their utilities:

Food & Beverages

Life Sciences

Power & Energy

Water & Wastewater

Chemicals

Liquiline CM448R features all common communication protocols and interfaces, such as:

0/4...20 mA

HART

PROFIBUS DP

Modbus TCP / Modbus RS485

EtherNet/IP

Webserver

Hiển thị bớt
