Flow assembly
Flowfit CYA21

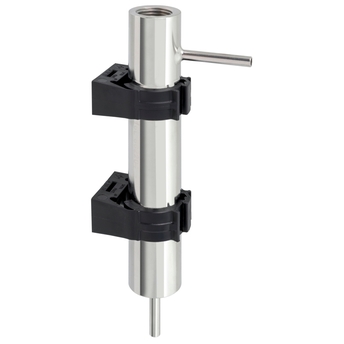

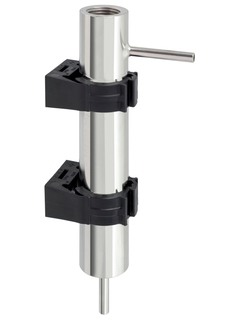

Flow assembly Flowfit CYA21 with sensor connection NPT 1/2" ©Endress+Hauser

Flow assembly Flowfit CYA21 with sensor connection NPT 1/2"

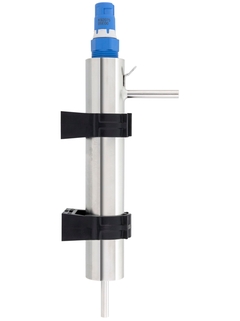

Flow assembly Flowfit CYA21 with installed PG13.5 sensor with shaft length 120mm ©Endress+Hauser

Flow assembly Flowfit CYA21 with installed PG13.5 sensor with shaft length 120mm

Universal assembly for analytical measuring points in power plants and industrial utilities.

The Flowfit CYA21 flow assembly is suitable for installation in analytical measuring points in power plants and industrial utilities. Thanks to its design in high-quality stainless steel, it can also be used continuously in applications with high process pressures of up to 16 bar at 100°C. The assembly is very easy to install because it fits into all common compression fitting systems. It can be used to create measuring points for pH/ORP, conductivity or dissolved oxygen.

Chọn nhanh

Chọn theo đề xuất của chúng tôi
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể
  • Lợi ích

    • Easy realization of measuring points for quality monitoring of process media like boiler feed water or condensate.

    • Robust stainless steel assembly for use under demanding process conditions (maximum 16 bar at 100°C).

    • Open pipe outlets for easy integration...

  • Phạm vi ứng dụng

    Flowfit CYA21 is a universal assembly for sensors with PG13.5 or NPT 1/2" process connection. It is intended for integration on analysis panels, analysis systems or for the realization of bypasses in the following industries:

    • Power plants

    • Utilities in...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Conductive

  • Measuring principle

    Glass electrode

  • Measuring principle

    Conductive

  • Measuring principle

    Glass electrode

  • Application

    Quality control of pure water, condensate, permeate

  • Installation

    Fixed installation assembly

  • Characteristic

    Bypass

  • Design

    Flow through assembly

  • Material

    Stainless steel

  • Process pressure

    Max. 16 bar (relative)

  • Connection

    Open pipe endings (outer diameter 6 mm)
