Digital non-glass pH sensor
Tophit CPS471D

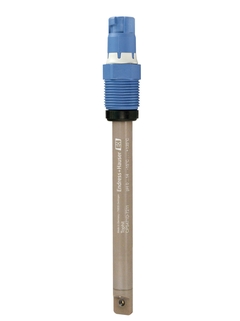

Tophit CPS471D - Digital non-glass pH electrode for sterile applications

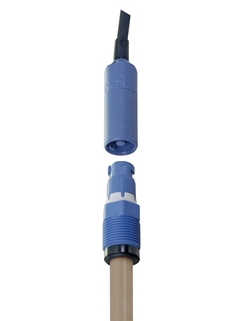

Tophit CPS471D - Digital pH sensor with CYK10 Memosens cable

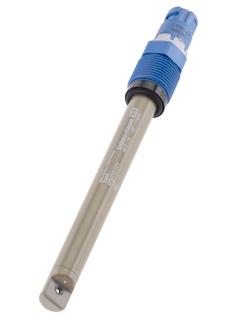

Tophit CPS471D - Digital ISFET sensor with Memosens technology for food and life sciences industries

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens ISFET electrode for food and life sciences industries

Tophit CPS471D is the digital specialist for hygienic applications. Its contamination-resistant gel guarantees stable measurement for a solid process database. The sensor is sterilizable and autoclavable and features an unbreakable PEEK shaft assuring highest safety of your products. Thanks to Memosens digital technology, CPS471D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Thêm vào giỏ hàng
Đặt cấu hình
Chọn & Kích thước
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Các thành phần bổ sung

Memograph M RSG45
Advanced Data Manager

Saves, visualizes, analyzes and communicates
Thông tin bổ sung
So sánh
RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.
Thông tin bổ sung
So sánh
Ecograph T RSG35
Universal Graphic Data Manager

Paperless recording, visualization and monitoring of the process values at the same time
Thông tin bổ sung
So sánh
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Thông tin bổ sung
So sánh

Lợi ích
Unbreakable for highest product safety
Certified biocompatibility
Suitable for sterilization and autoclaving
Low maintenance thanks to long calibration intervals
Maximum process safety through non-contact inductive signal transmission
Enables predictive...

Hiển thị thêm
Unbreakable for highest product safety
Certified biocompatibility
Suitable for sterilization and autoclaving
Low maintenance thanks to long calibration intervals
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

Hiển thị bớt

Phạm vi ứng dụng
Hygienic and sterile applications:
Food industry
Life sciences
Biotechnology
With 3-A, ATEX, FM, and CSA approval for hygienic applications or hazardous areas.

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

ISFET sensor
Application

Hygienic and sterile applications - non-glass, break-proof - low temperatures - pharmaceuticals, biotechnology - contaminating media
Characteristic

- gel-compact electrode - SIP and autoclavable - rapid response at low temperature - lower amount of maintenance required than with glass - biocompatible gel inside (acryle- and polyacrylamide free)- overhead installation
Measurement range

pH 0-14
Measuring principle

Ceramic diaphragm, double chamber reference, double gel
Design

- all shaft lengths with temperature sensor - advanced gel technology
Material

PEEK / metal oxide / ceramic / EPDM
Dimension

Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360, 425 mm
(4.72/8.86/14.2/16.7 inch)
Process temperature

-15°C ... 135°C
(5°F - 275°F)
Process pressure

max. 10 bar/100°C (145 psi/212°F)
Temperature sensor

Pt1000.
Ex certification

ATEX
FM
Connection

Contactless, inductive, digital connection head with Memosens technology
Ingres protection

IP68

Hiển thị thêm
