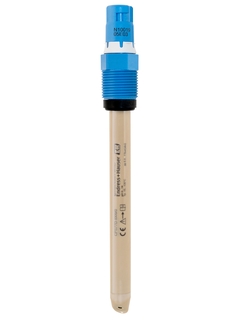

Digital non-glass pH sensor Memosens CPS77D

Memosens CPS77D – Digital ISFET sensor for food and life sciences industries ©Endress+Hauser

Memosens CPS77D with improved CIP stability

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Memosens CPS77D – Digital ISFET sensor for food and life sciences industries

Memosens ISFET electrode for food and life sciences industries

Memosens CPS77D is the digital specialist for hygienic applications. Its bacteria-proof reference with contamination-resistant gel guarantees stable measurements. The sensor is sterilizable with hot steam, autoclavable and features an unbreakable PEEK shaft assuring highest product safety. In addition, the Memosens digital technology combines maximum process and data integrity with simple handling. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Lựa chọn Extended
  • F
  • L
  • E
  • X

  • Sản phẩm đơn giản

  • Dễ lựa chọn, cài đặt và vận hành

Công nghệ vượt trội

Đơn giản

  • Sản phẩm tiêu chuẩn

  • Đáng tin cậy, mạnh mẽ và ít bảo trì

Công nghệ vượt trội

Đơn giản

  • Sản phẩm cao cấp

  • Chức năng cao và tiện lợi

Công nghệ vượt trội

Đơn giản

  • Sản phẩm chuyên dụng

  • Dành cho các ứng dụng đòi hỏi cao

Công nghệ vượt trội

Đơn giản

Có thể thay đổi

Lựa chọn FLEX Công nghệ vượt trội Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Fundamental

Đáp ứng nhu cầu đo lường cơ bản

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Lean

Xử lý dễ dàng các quy trình cốt lõi

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Extended

Tối ưu hóa quy trình bằng công nghệ tiên tiến

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Xpert

Làm chủ các ứng dụng khó khăn nhất

Công nghệ vượt trội
Đơn giản

Có thể thay đổi

  • Tổng quan về thông số kỹ thuật

    • Measurement range

      pH 0 to 14

    • Process temperature

      -15 to 135°C (5 to 275°F)

    • Process pressure

      Max. 11 bar abs at 100 °C
      (Max. 160 psi at 212 °F)

Loading alternative products

Chọn nhanh

Chọn theo đề xuất của chúng tôi
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CPS77D
Hiện chi tiết Ẩn chi tiết
Hiện chi tiết
Quay lại Mục chọn nhanh
  • <%feature%>
    <%coding%>
    <%label%>
pc
Đang tải giá
Giá tạm thời không có sẵn
from CHF 803.-
  • Các add-on tùy chọn
Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

Các thành phần bổ sung

  • Lợi ích

    • Unbreakable for highest product safety

    • Certified biocompatibility

    • Suitable for hot steam sterilization and autoclaving

    • Low maintenance thanks to long calibration intervals

    • Six times higher CIP stability compared to conventional ISFET pH sensors

    • Optional...

  • Phạm vi ứng dụng

    Hygienic and sterile applications:


    • Food industry
    • Life sciences
    • Biotechnology


    With all relevant approvals for hygienic applications such as EHEDG, 3A, EU1935/2004, USP 87/88.

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    ISFET

  • Application

    Hygienic and sterile applications, food industry, pharmaceutical industry, biotechnology

  • Characteristic

    Sterilizable and autoclavable ISFET sensor for pH measurement
    Digital with Memosens technology

  • Reference

    Double chamber reference system

  • Measurement range

    pH 0 to 14

  • Material

    Sensor shaft: PEEK
    Seals: FFKM
    Junction: ceramic

  • Dimension

    Diameter: 12 mm (0.47 inch)
    Shaft lengths: 120, 225 and 360 mm
    (4.72, 8.86 and 14.2 inch)

  • Process temperature

    -15 to 135°C (5 to 275°F)

  • Process pressure

    Max. 11 bar abs at 100 °C
    (Max. 160 psi at 212 °F)

  • Temperature sensor

    Pt1000

  • Connection

    Inductive, digital connection head with Memosens technology

  • Ingres protection

    IP 68 (10 m (33 ft) water column, 25 °C (77 °F), 45 days

  • Additional certifications

    3-A, FDA compatible
    EHEDG Typ EL Class I aseptic
    ASME BPE-2018
    Regulation (EC) No. 1935/2004
    USP <87>, USP <88> Class VI, 121 °C (250 °F)

Tài liệu / Tài liệu hướng dẫn / Phần mềm

  • Memosens CPS77D

    Sterilizable and autoclavable ISFET sensor for pH measurement

    Technical Information (TI)
  • CPS47D/77D/97D

    Memosens ISFET sensors for pH measurement

    Operating Instruction (BA)
  • Memosens ISFET pH sensors

    Supplement to BA01916C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas

    Ex Safety Instructions (XA)
  • Hygienic applications

    Equipment for liquid analysis

    Special Documentation (SD)
  • Expertise in liquid analysis

    From sensors to complete turnkey solutions

    Fields of Activities (FA)
    03/19
    Tiếng Anh
  • pH-Messung in Industrieprozessen

    Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und
    Applikationen

    Competence Brochure (CP)
    03/20
    Tiếng Đức
  • pH measurement in industrial processes

    Selection and engineering guide for different industries and
    applications

    Competence Brochure (CP)
    02/20
    Tiếng Anh
  • Damit bei der pH-Messung höchste Genauigkeit garantiert ist

    Kalibrierung,Justierung und Verifizierung

    Case Studies (CS)
    04/21
    Tiếng Đức
  • Ensuring maximum accuracy in pH measurement

    Calibration, adjustment and verification

    Case Studies (CS)
    04/21
    Tiếng Anh
  • pH-Messung erhöht Prozesssicherheit

    DAW setzt bei Qualitätskontrolle auf Inlinemessung

    Case Studies (CS)
    02/20
    Tiếng Đức
  • pH measurement increases process safety

    DAW relies on inline measurement for quality control

    Case Studies (CS)
    02/20
    Tiếng Anh
  • Comment la mesure du pH augmente la sécurité des process

    DAW s’appuie sur des mesures en ligne pour son contrôle qualité

    Case Studies (CS)
    02/20
    French
  • pH-ISFET-Sensoren Memosens 47D/77D/97D

    pH-ISFET-Sensoren Memosens 47D/77D/97D

    Innovations (IN)
    05/18
    Tiếng Đức
  • pH ISFET sensors Memosens 47D/77D/97D

    pH ISFET sensors Memosens 47D/77D/97D

    Innovations (IN)
    05/18
    Tiếng Anh
  • Memosens

    Product Code: CPS47D-, CPS77D-
    Declaration Number: HE_01089_02.19

    Manufacturer Declaration
    Tiếng Anh
  • Memosens

    Product Code: CPS77D-
    Declaration Number: HE_01022_03.18
    Manufacturer Specification: 1935/2004

    Manufacturer Declaration
    Tiếng Đức , Tiếng Anh
  • Memosens

    Product Code: CPS47D-, CPS77D-
    Declaration Number: FDA_00202_01.18

    FDA Declaration
    Tiếng Đức , Tiếng Anh
  • Memosens

    Product Code: CPS47D-, CPS77D-, CPS97D-
    Declaration Number: EC_00864_01.20

    EU Declaration
    Tiếng Đức , Tiếng Anh , French
  • Memosens

    Product Code: CPS47D-, CPS77D-, CPS97D-
    Declaration Number: EC_00729_01.19

    EU Declaration
    Tiếng Đức , Tiếng Anh , French
  • TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel

    Product Code: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Approval Number: EAEC RU D-DE.AD07.B.01362/19

    Miscellaneous
    Tiếng Nga
  • TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel

    Product Code: CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS16D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Approval Number: EAEC D-DE.AD07.B.01363/19

    Miscellaneous
    Tiếng Nga
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS72E-, CPS71E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS12E-, CPS11E-, CLS82E-, CLS21E-, CLS16E-, CLS15E-
    Region/Country: Canada, USA
    Approval Agency: CSA

    Explosion Protection
    Tiếng Anh
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97D-, CPS91E-, CPS77D-, CPS71E-, CPS61E-, CPS47D-, CPS41E-, CPS12E-, CPS11E-
    Region/Country: China
    Approval Agency: NEPSI
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    Tiếng Trung Quốc
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS96E-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS76E-, CPS72E-, CPS71E-, CPS62E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS16E-, CPS12E-, CPS11E-
    Region/Country: Europe (ATEX)
    Approval Agency: DEKRA
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    Tiếng Đức , Tiếng Anh
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS96E-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS76E-, CPS72E-, CPS71E-, CPS62E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS16E-, CPS12E-, CPS11E-
    Region/Country: International (IECEx)
    Approval Agency: DEKRA
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    Tiếng Anh
  • InduMax H, Memosens, SmarTec, SmarTec S, TopHit, UniFit H

    Product Code: CPS77D-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPA842-, CLS82D-, CLS54D-, CLS54-, CLD18-, CLD134-, CPS61E-
    Region/Country: USA
    Approval Agency: 3-A Sanitary Standards

    Hygienic Equipment
    Tiếng Anh
  • Memosens

    Product Code: CPS47D-, CPS77D-
    Region/Country: Europe
    Approval Agency: TU München

    Hygienic Equipment
    Tiếng Anh
  • Memosens

    Product Code: CPS47D-, CPS77D-
    Region/Country: Europe
    Approval Agency: TU München

    Hygienic Equipment
    Tiếng Anh
  • Turbimax, TopHit, OxyMax W, OxyMax H, OrbiSint, OrbiPore, OrbiPac, New Analyzer Platform, Memosens, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, Ceramax, CeraLiquid, CeraGel

    Product Code: CPS171D-, CPS31D-, CPS341D-, CPS41D-, CPS41E-, CPS42D-, CPS441D-, CPS471D-, CPS47D-, CPS491D-, CPS71D-, CPS71E-, CPS72D-, CPS76D-, CPS77D-, CPS91D-, CPS91E-, CPS92D-, CPS96D-, CPS97D-, CUS50D-, CUS51D-, CUS52D-, CA80HA-, CA80SI-, CCS120D-, CCS142D-, CCS50D-, CCS51D-, CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS54D-, CLS82D-, COS22D-, COS51D-, COS61D-, COS81D-, CPF81D-, CPF82D-, CPS11D-, CPS11E-, CPS12D-, CPS12E-, CPS16D-
    Region/Country: Russia
    Approval Number: OC.C.31.004.A NO 75181

    Metrology
    Tiếng Nga
  • Viomax, Turbimax, TopHit, OxyMax W, OxyMax H, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquiline M, Liquiline, Isemax, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, Ceramax, CeraLiquid, CeraGel

    Product Code: CPS47D-, CPS471D-, CPS441D-, CPS42D-, CPS41E-, CPS41D-, CPS341D-, CPS31D-, CPS171D-, CPS16D-, CPS12E-, CPS12D-, CPS11E-, CPS11D-, CPS491D-, CPS71D-, CPS71E-, CPS72D-, CPS76D-, CPS77D-, CPS91D-, CPS91E-, CPS92D-, CPS96D-, CPS97D-, CUS50D-, CUS51D-, CUS52D-, CAS40D-, CCS120D-, CCS142D-, CCS50D-, CCS51D-, CLS15D-, CLS15E-, CLS16D-, CLS16E-, CLS21D-, CLS21E-, CLS50D-, CLS54D-, CLS82D-, CLS82E-, CM14-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, COS22D-, COS51D-, COS61D-, COS81D-, CPF81D-, CPF82D-
    Region/Country: Russia
    Approval Agency: Rosstandart
    Approval Number: OC.C.31.004.A NO 54218/1

    Metrology
    Tiếng Nga

Phụ kiện / Phụ tùng thay thế
