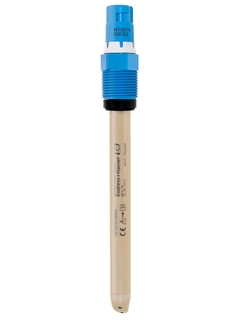

Digital non-glass pH sensor Memosens CPS97D
The specialist for heavily soiled media in the chemical industry.
The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.
Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
Memosens ISFET sensor for heavily polluted media in chemical processes, paper or paint production
Memosens CPS97D is the specialist for fibrous media or media with a high content of suspended solids such as dispersions, precipitation, emulsions. Its unbreakable shaft ensures a long operating life while the open aperture guarantees reliable measurement under harsh process conditions. In addition, the Memosens digital technology combines maximum process and data integrity with simple handling. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.
- F
- L
- E
- X
-
Sản phẩm chuyên dụng
- Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Có thể thay đổi
| Lựa chọn FLEX | Công nghệ vượt trội | Đơn giản |
|---|---|---|
Lựa chọn Fundamental Đáp ứng nhu cầu đo lường cơ bản |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Lean Xử lý dễ dàng các quy trình cốt lõi |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Extended Tối ưu hóa quy trình bằng công nghệ tiên tiến |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Xpert Làm chủ các ứng dụng khó khăn nhất |
Công nghệ vượt trội
|
Đơn giản
Có thể thay đổi |
-
Tổng quan về thông số kỹ thuật
-
Measurement range
pH 0 to 14
-
Process temperature
-15 to 110 °C (5 to 230 °F)
-
Process pressure
Max. 11 bar abs. at 100 °C
(Max. 159.5 psi at 212 °F)
-
Loading alternative products
Các thành phần bổ sung
-
Lợi ích
-
Unbreakable for highest product safety
-
Open aperture for application in heavily soiled media
-
Chemically stable reference gel for long-term stable measurements
-
Application possible at low temperatures
-
Low maintenance thanks to long calibration intervals
-
...
-
-
Phạm vi ứng dụng
• Chemical processes
• Pulp and paper industry
• Contaminated media and suspended solids
- Dispersions
- Precipitation
- Emulsions
Tài liệu / Tài liệu hướng dẫn / Phần mềm
-
Memosens CPS97D
ISFET sensor for pH measurement with long-term stability in media with
high dirt loadsTechnical Information (TI) -
CPS47D/77D/97D
Memosens ISFET sensors for pH measurement
Operating Instruction (BA) -
Memosens ISFET pH sensors
Supplement to BA01916C
Safety instructions for electrical apparatus in explosion-hazardous
areasEx Safety Instructions (XA) -
Memosens ISFET pH sensors
pH measurement
Supplement to BA01916C
Safety instructions for electrical apparatus in explosion-hazardous
areasEx Safety Instructions (XA) -
pH-Messung in Industrieprozessen
Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und
ApplikationenCompetence Brochure (CP)03/20Tiếng Đức -
pH measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)02/20Tiếng Anh -
Damit bei der pH-Messung höchste Genauigkeit garantiert ist
Kalibrierung,Justierung und Verifizierung
Case Studies (CS)04/21Tiếng Đức -
Ensuring maximum accuracy in pH measurement
Calibration, adjustment and verification
Case Studies (CS)04/21Tiếng Anh -
pH ISFET sensors Memosens 47D/77D/97D
pH ISFET sensors Memosens 47D/77D/97D
Innovations (IN)05/18Tiếng Anh -
pH-ISFET-Sensoren Memosens 47D/77D/97D
pH-ISFET-Sensoren Memosens 47D/77D/97D
Innovations (IN)05/18Tiếng Đức -
Memosens
Product Code: CPS47D-, CPS77D-, CPS97D-
Declaration Number: EC_00864_01.20EU DeclarationTiếng Đức , Tiếng Anh , French -
Memosens
Product Code: CPS47D-, CPS77D-, CPS97D-
Declaration Number: EC_00729_01.19EU DeclarationTiếng Đức , Tiếng Anh , French -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Product Code: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC RU D-DE.AD07.B.01362/19MiscellaneousTiếng Nga -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Product Code: CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS16D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC D-DE.AD07.B.01363/19MiscellaneousTiếng Nga -
Memocheck, Memosens
Product Code: CYP02E-, CPS97D-, CPS91E-, CPS77D-, CPS71E-, CPS61E-, CPS47D-, CPS41E-, CPS12E-, CPS11E-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 GaExplosion ProtectionTiếng Trung Quốc -
Memocheck, Memosens
Product Code: CYP02E-, CPS97E-, CPS97D-, CPS96E-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS76E-, CPS72E-, CPS71E-, CPS62E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS16E-, CPS12E-, CPS11E-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 GaExplosion ProtectionTiếng Anh -
Memocheck, Memosens
Product Code: CYP02E-, CPS97E-, CPS97D-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS72E-, CPS71E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS12E-, CPS11E-, CLS82E-, CLS21E-, CLS16E-, CLS15E-
Region/Country: Canada, USA
Approval Agency: CSAExplosion ProtectionTiếng Anh -
Memocheck, Memosens
Product Code: CYP02E-, CPS97E-, CPS97D-, CPS96E-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS76E-, CPS72E-, CPS71E-, CPS62E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS16E-, CPS12E-, CPS11E-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 GaExplosion ProtectionTiếng Đức , Tiếng Anh -
Memocheck, Memosens
Product Code: CYP02E-, CPS97E-, CPS97D-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS72E-, CPS71E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS12E-, CPS11E-
Region/Country: JapanExplosion ProtectionTiếng Nhật -
Viomax, Turbimax, TopHit, OxyMax W, OxyMax H, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquiline M, Liquiline, Isemax, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, Ceramax, CeraLiquid, CeraGel
Product Code: CPS47D-, CPS471D-, CPS441D-, CPS42D-, CPS41E-, CPS41D-, CPS341D-, CPS31D-, CPS171D-, CPS16D-, CPS12E-, CPS12D-, CPS11E-, CPS11D-, CPS491D-, CPS71D-, CPS71E-, CPS72D-, CPS76D-, CPS77D-, CPS91D-, CPS91E-, CPS92D-, CPS96D-, CPS97D-, CUS50D-, CUS51D-, CUS52D-, CAS40D-, CCS120D-, CCS142D-, CCS50D-, CCS51D-, CLS15D-, CLS15E-, CLS16D-, CLS16E-, CLS21D-, CLS21E-, CLS50D-, CLS54D-, CLS82D-, CLS82E-, CM14-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, COS22D-, COS51D-, COS61D-, COS81D-, CPF81D-, CPF82D-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.31.004.A NO 54218/1MetrologyTiếng Nga -
Turbimax, TopHit, OxyMax W, OxyMax H, OrbiSint, OrbiPore, OrbiPac, New Analyzer Platform, Memosens, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, Ceramax, CeraLiquid, CeraGel
Product Code: CPS171D-, CPS31D-, CPS341D-, CPS41D-, CPS41E-, CPS42D-, CPS441D-, CPS471D-, CPS47D-, CPS491D-, CPS71D-, CPS71E-, CPS72D-, CPS76D-, CPS77D-, CPS91D-, CPS91E-, CPS92D-, CPS96D-, CPS97D-, CUS50D-, CUS51D-, CUS52D-, CA80HA-, CA80SI-, CCS120D-, CCS142D-, CCS50D-, CCS51D-, CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS54D-, CLS82D-, COS22D-, COS51D-, COS61D-, COS81D-, CPF81D-, CPF82D-, CPS11D-, CPS11E-, CPS12D-, CPS12E-, CPS16D-
Region/Country: Russia
Approval Number: OC.C.31.004.A NO 75181MetrologyTiếng Nga
Phụ kiện / Phụ tùng thay thế
-
-
Order code
No spare parts available.
-
-
