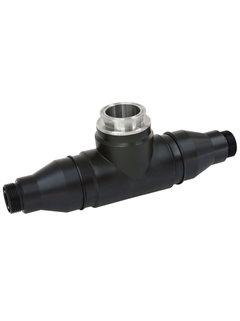

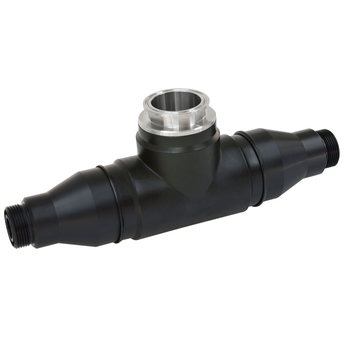

Turbidity assembly
Flowfit CUA252

Polyethylene (PE) flow assembly for drinking water, process water and utilities

Flowfit CUA252 is a turbidity flow assembly for all drinking and process water applications. Its extremely low backscattering enables reliable values even in the lowest measuring range – for precise information about your process. The ruggedized PE material withstands high pressure and temperature and is fully suitable for drinking water. Thus, you preserve each drop of water in the process. Its easy to use Clamp connection and automatic venting speed up sensor installation and commissioning.

Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Lựa chọn nhanh

Chọn trong số các tùy chọn do chúng tôi đề xuất

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Các add-on tùy chọn

Please use the individual configurator to continue.

hoặc

Cấu hình riêng

Tiếp tục lựa chọn từ tất cả các tùy chọn có thể

Cấu hình

Lợi ích
Precise information about your process: Extremely low backscattering allows reliable measuring values even at the lowest turbidity.

Flexible mounting: Quick screwing into the process pipeline or in a bypass installation with a wide range of pipe...

Hiển thị thêm
Precise information about your process: Extremely low backscattering allows reliable measuring values even at the lowest turbidity.

Flexible mounting: Quick screwing into the process pipeline or in a bypass installation with a wide range of pipe connections.

Fast sensor installation and commissioning: Easy-to-use clamp connection and automatic venting speed up integration into your process.

Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 60°C (140°F).

Hiển thị bớt

Phạm vi ứng dụng

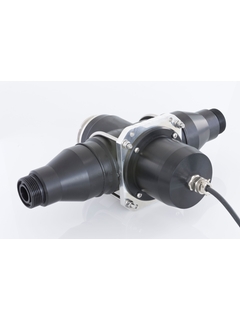

Flowfit CUA252 is a flow assembly for use with the Turbimax CUS52D sensor in:

Drinking and process water:
- All measuring points from inlet to outlet of water plants
- Abstraction and raw water control
- All measuring points in distribution networks
-...

Hiển thị thêm
Flowfit CUA252 is a flow assembly for use with the Turbimax CUS52D sensor in:

Drinking and process water:
- All measuring points from inlet to outlet of water plants
- Abstraction and raw water control
- All measuring points in distribution networks
- All quality control points in water production

Wastewater treatment plants:
- Reuse of outlet water

Utilities of all industries:
- All measuring points from inlet to outlet of water production
- All measuring points in distribution networks

Hiển thị bớt

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Single beam scattered light
Application

Flow-through-assembly for potable water
applications
and distribution networks
flow-through assembly for process water
applications
Installation

Flow-through-assembly for potable water
applications
and distribution networks
flow-through assembly for process water
applications
Design

PE100
Material

PE100
Dimension

350 x 120 mm
Process temperature

0 .. 60°C
Process pressure

0 .. 6 bars
Connection

G 1 1/4 and vaious adapters

Hiển thị thêm
Hiển thị bớt

Tài liệu / Tài liệu hướng dẫn / Phần mềm

Hình thức tải về

CUA252 Technical Information
Flowfit CUA252

Technical Information (TI)
Flowfit CUA252 Operating Instructions
Flowfit CUA252

Operating Instruction (BA)
Mesure de turbidité sans perte de produit
Turbimax CUS52D le capteur en ligne pour l’eau potable et les eaux de
process

Innovations (IN)

06/14

fr
Turbidity measurement without product loss
Turbimax CUS52D inline sensor for drinking and process water

Innovations (IN)

03/14

Tiếng Anh
Turbidity measurement without product loss
Turbimax CUS52D inline sensor for drinking and process water

Innovations (IN)

03/14

Tiếng Anh
Trübungsmessung ohne Produktverluste
Der Inline-Sensor Turbimax CUS52D für Trink- und Prozesswasser

Innovations (IN)

03/14

Tiếng Đức
FlowFit W
Product Code: CUA252-
Declaration Number: HE_01134_01.19
Manufacturer Specification: PED

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
FlowFit W
Product Code: CUA252-
Declaration Number: HE_01133_01.19
Manufacturer Specification: PED

Manufacturer Declaration

Tiếng Đức , Tiếng Anh
FlowFit W
Product Code: CUA252-
Declaration Number: HE_01032_01.18
Manufacturer Specification: RoHS

Manufacturer Declaration

Tiếng Đức , Tiếng Anh

Hiển thị thêm
Hiển thị bớt

Phụ kiện / Phụ tùng thay thế

Tìm kiếm

Lọc

Order code

Specification

- Order code 71241892

  Kit CUA252: 2x Set of O-Rings EPDM

  Hiện chi tiết Ẩn chi tiết
- Order code 71241882

  Kit CUS52D: 2x Sealing Clamp DN50 FDA

  For CUS50D, CUS52D, CUA252 and CUA262

  Hiện chi tiết Ẩn chi tiết
- Order code 71242170

  Air bubble trap, CUA252

  Hiện chi tiết Ẩn chi tiết
- Order code 71242171

  wall mounting set, CUA252

  Hiện chi tiết Ẩn chi tiết
- Order code 71242172

  adapter female thread Rp 3/4

  Hiện chi tiết Ẩn chi tiết
- Order code 71242173

  adapter female thread NPT 3/4, PE

  Hiện chi tiết Ẩn chi tiết
- Order code 71242174

  adapter welding tap D25, PE

  Hiện chi tiết Ẩn chi tiết
- Order code 71242175

  adapter hose connection, D25, PE

  Hiện chi tiết Ẩn chi tiết
- Order code 71242176

  adapter hose connection, D12, PE

  Hiện chi tiết Ẩn chi tiết
- Order code 71242177

  adapter flange ANSI 2 inch

  Hiện chi tiết Ẩn chi tiết
- Order code 71242180

  blind cover 2 inch

  For CUS50D, CUS52D, CUA252 and CUA262

  Hiện chi tiết Ẩn chi tiết
- Order code 71364586

  Kit CUS52D air bubble trap

  Hiện chi tiết Ẩn chi tiết
