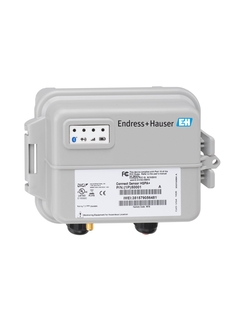

Connect Sensor FXA30B
Battery-powered remote cellular monitoring of connected field devices
Connect Sensor FXA30B is a fully integrated, battery-powered cellular gateway with inputs for connecting to a wide range of field devices. Designed to work in rugged industrial environments, the FXA30B is the ideal solution for remote monitoring in places where power is not easily available. It can even be used as power supply for the field device and measured values can be visualized via the SupplyCare Hosting cloud solution.
Các thành phần bổ sung
-
Lợi ích
-
Level, flow and pressure visualization at the desk regardless of location and powered by the gateway in remote areas
-
Easy connection to field devices
-
If desired, bundled with cellular communication service
-
Flexible for battery use on remote places or...
-
-
Phạm vi ứng dụng
Battery-powered remote cellular monitoring of connected analog as well as digital field devices via mobile communications.
External, configurable power outputs eliminate the need for sensor power supplies
Configuration of measuring and transmission...
Tài liệu / Tài liệu hướng dẫn / Phần mềm
-
Connect Sensor FXA30, FXA30B
Technical Information
Fieldgate
Technical Information (TI) -
Connect Sensor FXA30, FXA30B
Operating Instructions
Fieldgate
Operating Instruction (BA) -
Connect Sensor FXA30, FXA30B
Brief Operating Instructions
Fieldgate
Short Instruction (KA)04/19Tiếng Anh -
Connect Sensor FXA30/FXA30B
Special Documentation
Technical documentation resources informationSpecial Documentation (SD) -
Prevent unscheduled downtimes
With fuel and chemical supply chain management in Primaries
Industry Solutions (SO)09/19Tiếng Anh -
Real-time inventory information across production storages
Usage of existing material on stocks and reduction of locked-in
inventory costsIndustry Solutions (SO)09/19Tiếng Anh -
More efficient with the supplier-managed inventory business model
Inventory and supply chain solution across depots for a chemical
producerIndustry Solutions (SO)09/19Tiếng Anh -
The efficient business model with Vendor Managed Inventory
Inventory solution for a chemical distributor
Industry Solutions (SO)09/19Tiếng Anh
Phụ kiện / Phụ tùng thay thế
-
-
Order code 71327395
Fixed Antenna: LTE, GSM, UMTS, WLAN
Fixed antenna for mounting on vertical surfaces. Cable length: 3m. Application: LTE 800MHz, LTE 2.6GHz, GSM 900/1800, UMTS, WLAN 2.4 GHz (WiMAX, WiFi). Usage: FXA30, FXA42. Indoor and outdoor use. Mounting via bracket. Omnidirectional characteristic. Radiator protected by a plastic tube. HF-cable connected directly to antenna. 10cm clearance between antenna by 15dB isolation.
-
Order code 71329969
Battery-lithium-thionyl chloride FXA30
Consists of: Lithium-thionyl chloride (Li-SOCL2). Type: ER34615 7,2V 14Ah. Non-rechargeable. Usage: FXA30. Delivered with connector. Hazards Id. UN38.3. Batteries are considered hazardous goods and may be charged by import taxes depending on the country of delivery.
-
Order code 71329987
Cellular antenna FXA30, 3G/4G/LTE,Swivel
Frequencies: 698-960/1710-2170/2500- 2700Mhz. Nominal impedance: 50 ohm. VSWR: 2.5:1. Polarization: linear vertical. Radiation pattern: omni. Power rating: 3 watt. Gain: 0 min-2 max. Weight: 1.66oz (47g). Height x width: 228mm x 25mm (9" x 1"). Operating temperature [oC]: -30 to +70. Usage: FXA30, LTE and GSM.
-
Order code 71336975
Mounting kit FXA30
For wall mounting. Consists of: 4x small brackets. 4x screws. Usage: FXA30.
-
Order code
Unit is not repairable.
-
Order code
No spare parts available.
-
