RIA14
Loop-powered field indicator

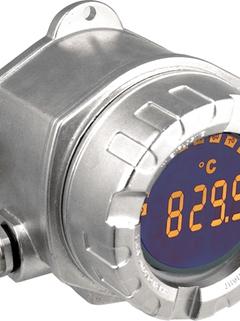

Loop-powered process indicator RIA14 for field installation

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!

The indicator shows the measured signal on the large, backlit display. An additional bar graph gives a quick process overview and a plain text field displays further information like the engineering unit or TAG. Limit value infringements are also signalized and an open collector can be switched. No separate power supply is required, the indicator is powered directly from the 4...20 mA loop. The housing is available in aluminum and in stainless steel as well as with an optional Ex d approval.

Thêm vào giỏ hàng
Đặt cấu hình
Định cỡ
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Các thành phần bổ sung

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Thông tin bổ sung
So sánh
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Thông tin bổ sung
So sánh
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Thông tin bổ sung
So sánh
RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
Thông tin bổ sung
So sánh
HAW569
Surge arresters

Surge arresters for field mounting
Thông tin bổ sung
So sánh

Lợi ích
Display of 4 to 20 mA measured values
5-digit measured value display with dimension, bar graph and backlight
No external power supply required
Versions: Die-cast aluminum housing or stainless steel housing
Easy 3-key operation; or configuration with...

Hiển thị thêm
Display of 4 to 20 mA measured values
5-digit measured value display with dimension, bar graph and backlight
No external power supply required
Versions: Die-cast aluminum housing or stainless steel housing
Easy 3-key operation; or configuration with FieldCare PC software; or configuration without power supply using setup box
International approvals; marine approval
Allows the HART^® transmission protocol to pass unimpeded

Hiển thị bớt

Phạm vi ứng dụng
Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open...

Hiển thị thêm
Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open or by means of a PC with the FieldCare PC software.

Hiển thị bớt

Tín năng và thông số kỹ thuật

Quay lại

Details

Measuring principle

Loop powered indicators
Measuring principle

Loop-powered field indicator
Function

Display
Display

LCD 20 mm (0.79")

5-digit

Bargraph

Plain text display
Power Supply

Loop powered
Input

1 x analogue 4...20 mA
Output

1 x open collector
Output

1 x open collector
Software functions

Not defined
Certificates

UL rec. Comp
CSA GP
ATEX Ex d
ATEX Staub
ATEX n
FM USA NI
FM USA DIP
FM USA XP
CSA NI
CSA DIP
CSA XP
Marine approval
EAC
SIL

Not defined
Panel mounting

field

Hiển thị thêm
Hiển thị bớt

Measuring principle

Display
Function

Display
Certification

UL rec. Comp

CSA GP

ATEX Ex d

ATEX Staub

ATEX n

FM USA NI

FM USA DIP

FM USA XP

CSA NI

CSA DIP

CSA XP

Marine approval
Input

1 x analogue 4...20 mA
Output

1 x open collector
Auxiliary power supply / Loop power supply

Loop powered
Dimensions (wxhxd)

Field housing:

132 x 135 x 106 mm

(5.2" x 5.31" x 4.17")
Operation

3 keys interface on electronics + PC interface FieldCare
Display

LCD 20 mm (0.79")

5-digit

Bargraph

Plain text display

Hiển thị thêm
Hiển thị bớt
