Conductive
Point level detection

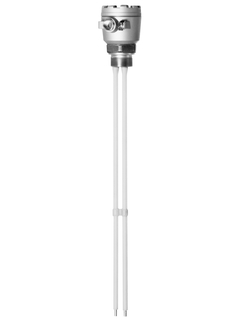

Double rod probe 11362Z
High resistant probes for corrosive liquids in plastic vessels
The 11362Z is a high resistant probe for applications requiring accurate point level detection or overfill prevention in plastic vessels or vessels made of non-conducting material. The two-point control can be carried out in vessels with electrically conducting walls.
- F
- L
- E
- X
-
Sản phẩm chuyên dụng
- Dành cho các ứng dụng đòi hỏi cao
Công nghệ vượt trội
Đơn giản
Có thể thay đổi
| Lựa chọn FLEX | Công nghệ vượt trội | Đơn giản |
|---|---|---|
Lựa chọn Fundamental Đáp ứng nhu cầu đo lường cơ bản |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Lean Xử lý dễ dàng các quy trình cốt lõi |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Extended Tối ưu hóa quy trình bằng công nghệ tiên tiến |
Công nghệ vượt trội
|
Đơn giản
|
Lựa chọn Xpert Làm chủ các ứng dụng khó khăn nhất |
Công nghệ vượt trội
|
Đơn giản
Có thể thay đổi |
-
Tổng quan về thông số kỹ thuật
-
Process temperature
-40 °C ... 150 °C
(-40 °F ... 302 °F) -
Process pressure absolute / max. overpressure limit
Vacuum ... 30 bar
(Vacuum ... 435 psi) -
Min. conductivity of medium
20 µS/cm
-
Loading alternative products
Các thành phần bổ sung
-
Lợi ích
Reliable and safe measurement
Safe measurement even for applications in explosion hazardous area
Variable process connections for various applications
-
Phạm vi ứng dụng
For vessels made of plastic or non-conducting material. For applications in explosion hazardous areas, in waste water plants, which are sometimes regarded as Zone 0 or as overfill prevention for water-polluting liquids.
Process connections: Threads and...
Tài liệu / Tài liệu hướng dẫn / Phần mềm
-
Double-rod probes 11362, 11362Z
Technical Information
High resistant probes,
for corrosive liquids,
for use in plastic vessels.Technical Information (TI) -
Safety Instructions
Conductive Limit Detection 11362Z, 11363Z, 11375Z, 11961Z
II 1/2 G Ex ia IIC T6 Ga/Gb
II 1 G Ex ia IIC T6 Ga
TÜV 02 ATEX 1951 XEx Safety Instructions (XA) -
Safety Instructions
Conductive Limit Detection 11362Z, 11363Z
Ex ia IIC T6-T4
GYJ13.1132X (NEPSI)Ex Safety Instructions (XA) -
Stabsonde 11362Z
Füllstandaufnehmer ausgeführt als PTFE-teilisolierte Doppelstabsonde zur
konduktiven
GrenzstanddetektionTender Text11/09Tiếng Đức -
Doppelstabsonde, Dreistabsonde, Einstabsonde
Product Code: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Declaration Number: EC_00434_03.16EU DeclarationTiếng Đức , Tiếng Anh -
Doppelstabsonde, Dreistabsonde, Einstabsonde
Product Code: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Declaration Number: TÜV02ATEX1951XEU DeclarationTiếng Đức , Tiếng Anh -
Doppelstabsonde, Dreistabsonde, Einstabsonde, Liquicap M, Liquicap T, Liquipoint, Liquipoint T, Pumpenschutz
Product Code: FTW360-, FTW33-, FTW32-, FTW31-, FTW23-, FTI52-, FTI51-, FMI52-, FMI51-, FMI21-, 11961Z-, 11375Z-, 11371-, 11363Z-, 11362Z-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TС RU D-DE.MU62.B.02537MiscellaneousTiếng Nga -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05531MiscellaneousTiếng Nga -
Doppelstabsonde, Dreistabsonde, Einstabsonde
Product Code: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Region/Country: Europe (ATEX)
Approval Agency: TÜV
Category: II 1/2 G, II 1 G
Protection: Ex ia IIC T6 Ga, Ex ia IIC T6 Ga/GbExplosion ProtectionTiếng Đức , Tiếng Anh -
Doppelstabsonde, Dreistabsonde, Einstabsonde
Product Code: 11362Z-, 11363Z-, 11375Z-, 11375ZF-, 11961ZF-
Region/Country: Europe (ATEX)
Approval Agency: TÜV
Category: II 1/2 G, II 1 G
Protection: EEx ia IIC T6Explosion ProtectionTiếng Đức , Tiếng Anh -
Doppelstabsonde, Dreistabsonde, Einstabsonde, Liquipoint T
Product Code: 11362Z-, 11363Z-, 11375Z-, 11961Z-, FTW31-, FTW32-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex iaExplosion ProtectionTiếng Nga -
Doppelstabsonde, Dreistabsonde, Einstabsonde, Liquipoint T, Multicap, Nivotester, Seilsonde, Stabsonde
Product Code: FTW570Z-, FTW520Z-, FTW470Z-, FTW325-, FTW32-, FTW31-, EW11Z-, DC26-, DC16-, 21561ZF-, 21360ZF-, 11961Z-, 11375Z-, 11363Z-, 11362Z-, 11356ZF-
Region/Country: Germany
Approval Agency: DIBt
Approval Number: DIBTZ-65-13-101Overfill PreventionTiếng Đức -
Micropilot, Micropilot S, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Doppelstabsonde, Dreistabsonde, Einstabsonde, Levelflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquiphant S, Liquipoint, Liquipoint T, LIQUITREND
Product Code: FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTI52-, FTI51-, FTI26-, FTC968Z-, FTC262-, FTC260-, FMU44-, FMU43-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, QMW43-, FMU42-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMU41-, FMU40-, FMU30-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR532-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-, FMP57-, FMP56-
Approval Agency: TÜVPressure EquipmentTiếng Đức , Tiếng Anh
Phụ kiện / Phụ tùng thay thế
-
-
Order code
No spare parts available.
-
Order code
Please back to PCM for repair.
-
-
