Microwave barrier emitter

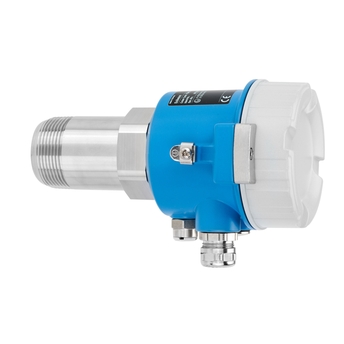

Soliwave FQR57

Soliwave FQR57 ©Endress+Hauser
Soliwave FQR57 ©Endress+Hauser
  • Soliwave FQR57
  • Soliwave FQR57

Transmitter for non-contact point level detection and bulk flow monitoring

The Soliwave microwave barrier uses a non-contact procedure for detection of point levels and bulk flow (flow / no flow, trend). The device is also suitable for detecting and counting objects, detection of deposits as well as monitoring of filling processes and material transfer points. It can be installed in containers, conduits, hoppers, filling stations, shafts, filters or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside.

  • Sản phẩm đơn giản

  • Dễ lựa chọn, cài đặt và vận hành

Công nghệ vượt trội

Đơn giản

  • Sản phẩm tiêu chuẩn

  • Đáng tin cậy, mạnh mẽ và ít bảo trì

Công nghệ vượt trội

Đơn giản

  • Sản phẩm cao cấp

  • Chức năng cao và tiện lợi

Công nghệ vượt trội

Đơn giản

  • Sản phẩm chuyên dụng

  • Dành cho các ứng dụng đòi hỏi cao

Công nghệ vượt trội

Đơn giản

Có thể thay đổi

Lựa chọn FLEX Công nghệ vượt trội Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Fundamental

Đáp ứng nhu cầu đo lường cơ bản

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Lean

Xử lý dễ dàng các quy trình cốt lõi

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Extended

Tối ưu hóa quy trình bằng công nghệ tiên tiến

Công nghệ vượt trội
Đơn giản
  • F
  • L
  • E
  • X

Lựa chọn Xpert

Làm chủ các ứng dụng khó khăn nhất

Công nghệ vượt trội
Đơn giản

Có thể thay đổi

  • Tổng quan về thông số kỹ thuật

    • Process temperature

      Non-contact installation: any

      Within installation:
      -40 °C...+70 °C
      (-40 °F...+158 °F)

      With HT-Adapter:
      up to +450 °C (+842 °F)

    • Process pressure absolute / max. overpressure limit

      Non-contact installation: any

      Within installation:
      0.5 bar...6.8 bar
      (7.2 psi ... 99 psi) abs.

      With HD-Adapter:
      up to +21 bar (+305 psi) abs.

    • Min. density of medium

      Solid weight: > 10 g/l

Chọn nhanh

Chọn theo đề xuất của chúng tôi
Giá bán
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FQR57
Hiện chi tiết Ẩn chi tiết
Hiện chi tiết
Quay lại Mục chọn nhanh
  • <%feature%>
    <%coding%>
    <%label%>
pc
Đang tải giá
Giá tạm thời không có sẵn
from CHF 803.-
  • Các add-on tùy chọn
Vui lòng sử dụng công cụ lựa chọn mã thiết bị để tiếp tục.
hoặc

Công cụ lựa chọn mã thiết bị

Tiếp tục lựa chọn từ tất cả tùy chọn có thể

  • Lợi ích

    • Simple assembly with R 1½, 1½ NPT thread or G 1½ (with lock nut)

    • Mechanically robust construction ensures cost savings over the whole life cycle of the product: No wear and tear, process-wetted ceramic sensor diaphragm (optional), long serviceable life...

  • Phạm vi ứng dụng

    Non-contact (wear- and maintenance-free) limit detection (min/max) and flow monitoring (flow/no flow, trend) for bulk solids.

    • Detecting, counting and positioning of objects

    • Detection and analysis of deposits and contamination in filters

    • Monitoring of...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Microwave barrier

  • Characteristic / Application

    Transmitter

    Non-contact point level detection and flow monitoring

    Detecting, counting and positioning of objects

    Monitoring of material transfer points

    Detection and analysis of deposits and contamination


    Non-contact installation:

    Waves emitted from outside


    Within installation:

    Waves emitted within installation (contact)

  • Specialities

    With optional integrated bulk flow monitoring

    Parallel mode with up to 5 channels

    Detection range limit: max. 100 m

    Detection range flow: max. 10 m, depending on bulk solids

  • Supply / Communication

    Via process transmitter with control unit Nivotester FTR525

  • Ambient temperature

    -40 °C...+70 °C

    (-40 °F...+158 °F)

  • Process temperature

    Non-contact installation: any


    Within installation:

    -40 °C...+70 °C
    (-40 °F...+158 °F)


    With HT-Adapter:

    up to +450 °C (+842 °F)

  • Process pressure absolute / max. overpressure limit

    Non-contact installation: any


    Within installation:

    0.5 bar...6.8 bar

    (7.2 psi ... 99 psi) abs.


    With HD-Adapter:

    up to +21 bar (+305 psi) abs.

  • Min. density of medium

    Solid weight: > 10 g/l

  • Main wetted parts

    Non-contact installation:

    No wetted parts


    Within installation:

    316Ti, PTFE or Ceramic

  • Process connection

    Threads:

    1-1/2" R, 1-1/2" G, 1-1/2" NPT

  • Communication

    Via process transmitter with control unit Nivotester FTR525

  • Certificates / Approvals

    ATEX, IEC Ex

  • Design approvals

    EN10204-3.1

  • Options

    Sight glass

    High temperature adapter

    High pressure adapter

    Installation bracket

    FAR50, FAR51, FAR52, FAR53, FAR54, FAR55

  • Components

    Transceiver: FDR57

    Process transmitter: FTR525

  • Application limits

    Solid weight: < 10 g/l
