Source Container FQG60

Radiometric measuring principle

Animation source containers

Animation Gamma Modulator

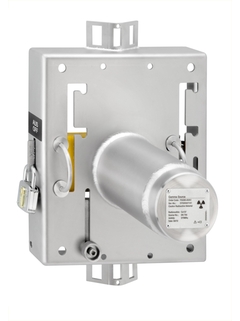

Radiation source container with radiation source insert with manual switch-on and switch-off

The FQG60 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

Thêm vào giỏ hàng
Đặt cấu hình
Chọn & Kích thước
Định giá sau khi đăng nhập và lập cấu hình

So sánh

Lợi ích
High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement
Reliable measurement due to small-size, lightweight container which provides optimized...

Hiển thị thêm
High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement
Reliable measurement due to small-size, lightweight container which provides optimized screening

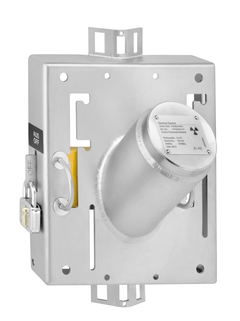

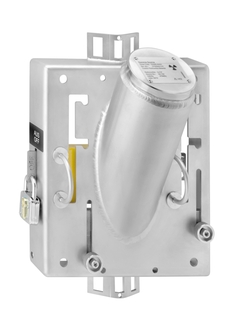

Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application
Manual switching on/off and padlock to fix switching positions (on/off), or snap hook to fix switching position; on-switch status easily identified
Integrated mounting device for density measurement on pipes
Optional: Calibration plate for quick and easy density recalibration

Hiển thị bớt

Phạm vi ứng dụng
Designed to hold the radioactive source during radiometric point level detection, level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only, and is damped in all other directions.

Activity: 137Cs to 1.1GBq...

Hiển thị thêm
Designed to hold the radioactive source during radiometric point level detection, level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only, and is damped in all other directions.

Activity: 137Cs to 1.1GBq (30mCi)

Temperature: No limitation (non-invasive, extraneous)

Pressure: No limitation (non-invasive, extraneous)

Hiển thị bớt
