1-channel transmitter
Liquiline M CM42

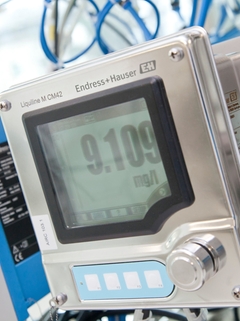

1-channel transmitter Liquiline M CM42 ©Endress+Hauser

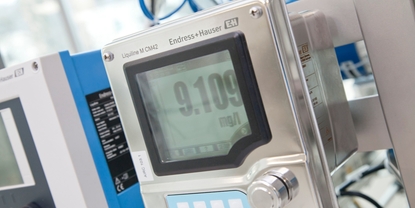

1-channel transmitter Liquiline M CM42 ©Endress+Hauser
1-channel transmitter Liquiline M CM42 ©Endress+Hauser

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • 1-channel transmitter Liquiline M CM42
  • 1-channel transmitter Liquiline M CM42
  • 1-channel transmitter Liquiline M CM42

Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food

Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas. Liquiline’s intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.

Các thành phần bổ sung

  • Lợi ích

    • Simple commissioning with quick setup and navigator

    • The Memosens technology allows plug & play with pre-calibrated Memosens sensors

    • Less storage thanks to modular design

    • Predictive maintenance system detects when a sensor has to be cleaned, calibrated or...

  • Phạm vi ứng dụng

    The Liquiline CM42 transmitter is suitable for all process applications, for example in these industries and their utilities:

    • Chemicals

    • Food & Beverages

    • Life Sciences

    • Power & Energy

    • Oil & Gas

    • Primaries & Metal

    Liquiline CM42 features the following...

Tín năng và thông số kỹ thuật

Quay lại

Details

  • Measuring principle

    Glass electrode

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

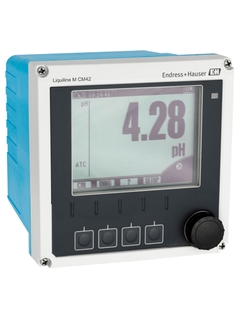

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch

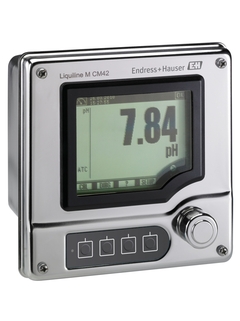

    Stainless Steel:

    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Temperature sensor

    Applicable:
    Pt100, Pt1000, NTC 30K

  • Ex certification

    ATEX, FM, CSA, NEPSI, TIIS, EAS

  • Ingres protection

    IP66, IP67 or NEMA 4X

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus PA, FF
    Additional second output possible, also later

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:
    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Temperature sensor

    Applicable:
    Pt100, Pt1000, NTC 30K

  • Ex certification

    ATEX, FM, CSA, NEPSI, TIIS

  • Ingres protection

    IP66, IP67 or NEMA 4X

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus, FF
    Additional second output possible, also later

  • Measuring principle

    Sensor Oxygen

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:
    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus PA, FF
    Additional second output possible, also later

  • Measuring principle

    Glass electrode

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:
    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Temperature sensor

    Applicable:
    Pt100, Pt1000

  • Ex certification

    ATEX, FM, CSA, NEPSI, TIIS

  • Ingres protection

    IP66 and IP67

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus PA, FF
    Additional second output possible, also later
